PowerMate Express 486/33e (Enhanced)

PowerMate Express DX2/50e

Processor	80486DX/80486DX2
Processor Speed	25/33/50(internal)/66(internal)MHz
Chip Set	Intel
Max. Onboard DRAM	16MB
Cache	128KB (on CPU card)
BIOS	NEC
Dimensions	330mm x 218mm
I/O Options	Proprietary CPU module slot, keyboard/bus mouse interface,serial ports (2), parallel port, video port, proprietary video card sockets, proprietary external memory card slot, IDE interface, floppy drive interface
NPU Options	None

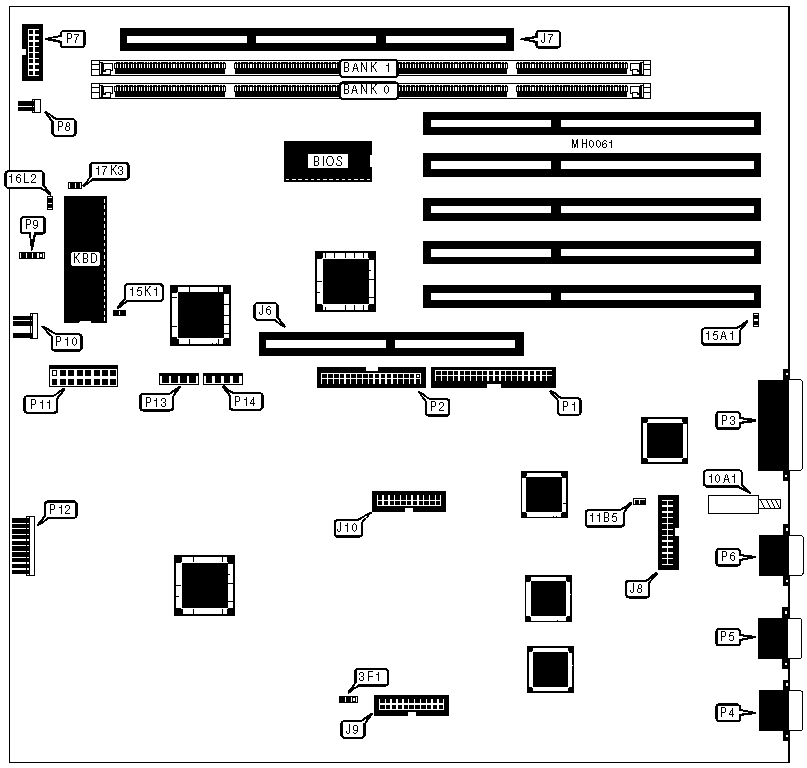

CONNECTIONS
Purpose	Location	Purpose	Location
Proprietary CPU module	J6	Video port	P6
Proprietary external memory card	J7	Keyboard/Bus mouse interface	P7
Proprietary video card	J8, J9, & J10	Fan power	P8
IDE interface	P1	IDE interface LED	P9
Floppy drive interface	P2	External battery	P10
Parallel port	P3	Power supply	P11 & P12
Serial port (COM1)	P4	Drive power	P13
Serial port (COM2)	P5	Drive power	P14

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Password enabled	3F1	pins 2 & 3 closed
	Password disabled	3F1	pins 1 & 2 closed
»	Test mode disabled	10A1	Open
	Test mode enabled	10A1	Closed
»	I/O recovery disabled	11B5	Open
	I/O recovery enabled	11B5	Closed
»	NEC VGA adapter disabled (U.S. setting)	15A1	Open
	NEC VGA adapter enabled	15A1	Closed
»	Manufacturing loop disabled	15K1	Closed
	Manufacturing loop enabled	15K1	Open
»	Floppy drive interface enabled	16L2	Open
	Floppy drive interface disabled	16L2	Closed
»	BIOS flash reprogramming enabled	17K3	Open
	BIOS flash reprogramming disabled	17K3	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	NONE
16MB	(2) 1M x 36	(2) 1M x 36
32MB	(2) 4M x 36	NONE
64MB	(2) 4M x 36	(2) 4M x 36

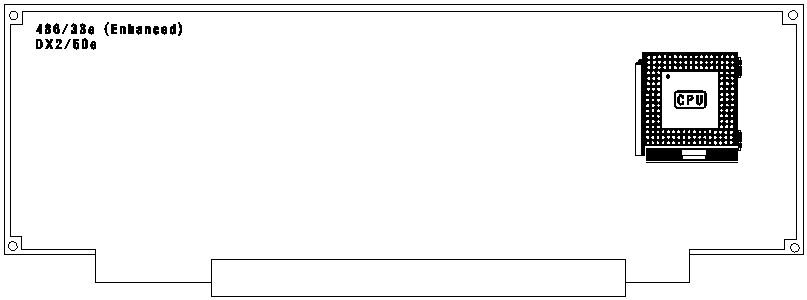

CACHE CONFIGURATION

Notes:The CPU card comes standard with 128KB of cache and is not configurable.. The locations of the cache chips are unidentified.
