NCR CORPORATION
CLASS 3434
|
Processor |
80486DX |
|
Processor Speed |
33MHz |
|
Chip Set |
NCR |
|
Max. Onboard DRAM |
None |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
Serial ports (2), parallel port, PS/2 mouse port, VGA port, SCSI host adapter slot, floppy drive interface, 32-bit external memory card slots (4) |
|
NPU Options |
4167 |
|

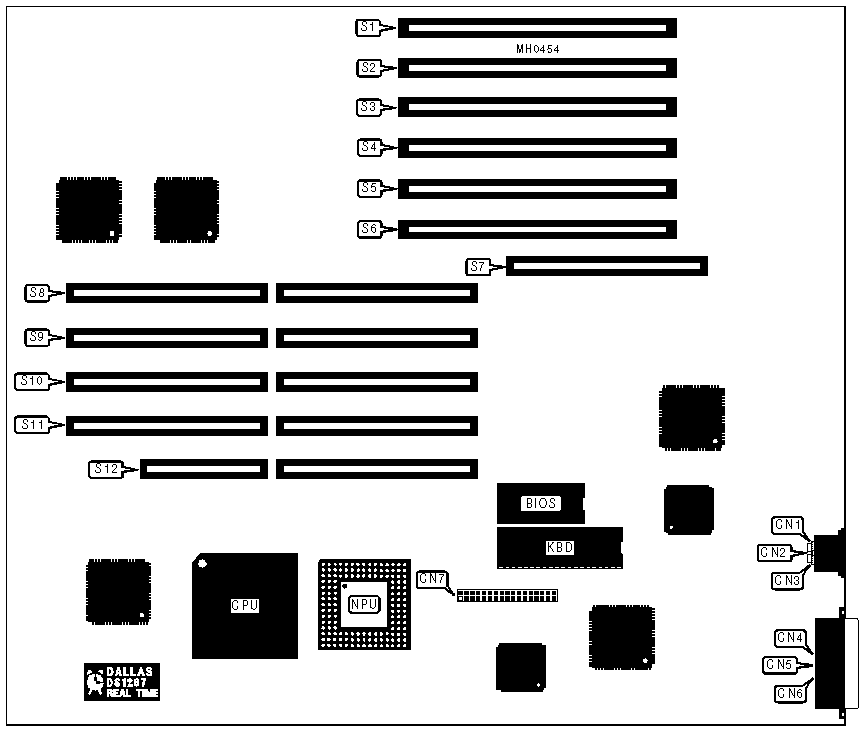

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Video port |
CN1 |
Parallel port |
CN6 |
|
Keyboard port |
CN2 |
Floppy drive interface |
CN7 |
|
PS/2 mouse port |
CN3 |
MCA slot |
S1 - S7 |
|
Serial port 2 |
CN4 |
32-bit external memory card |
S8 - S11 |
|
Serial port 1 |
CN5 |
SCSI host adapter slot |
S12 |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 3 |
Bank 4 |
|
4MB |
(36) 44256 |
NONE |
NONE |
NONE |
|
16MB |
(36) 441000 |
NONE |
NONE |
NONE |
|
20MB |
(36) 441000 |
(36) 44256 |
NONE |
NONE |
|
32MB |
(36) 441000 |
(36) 441000 |
NONE |
NONE |
|
36MB |
(36) 441000 |
(36) 441000 |
(36) 44256 |
NONE |
|
48MB |
(36) 441000 |
(36) 441000 |
(36) 441000 |
NONE |
|
52MB |
(36) 441000 |
(36) 441000 |
(36) 441000 |
(36) 44256 |
|
64MB |
(36) 441000 |
(36) 441000 |
(36) 441000 |
(36) 441000 |
|
Note:Each bank consists of one proprietary external memory card. | ||||
