NEC TECHNOLOGIES, INC.
PowerMate
Image 386/33i
|
Processor |
80386DX |
|
Processor Speed |
33MHz |
|
Chip Set |
Tact |
|
Max. Onboard DRAM |
64MB |
|
Cache |
32KB |
|
BIOS |
NEC (Flash EEROM) |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Bus mouse port, floppy drive interface, headphone jack, IDE interface, microphone jack, parallel port, proprietary VGA feature card socket, serial port, VGA port |
|
NPU Options |
80387/3167 |
|

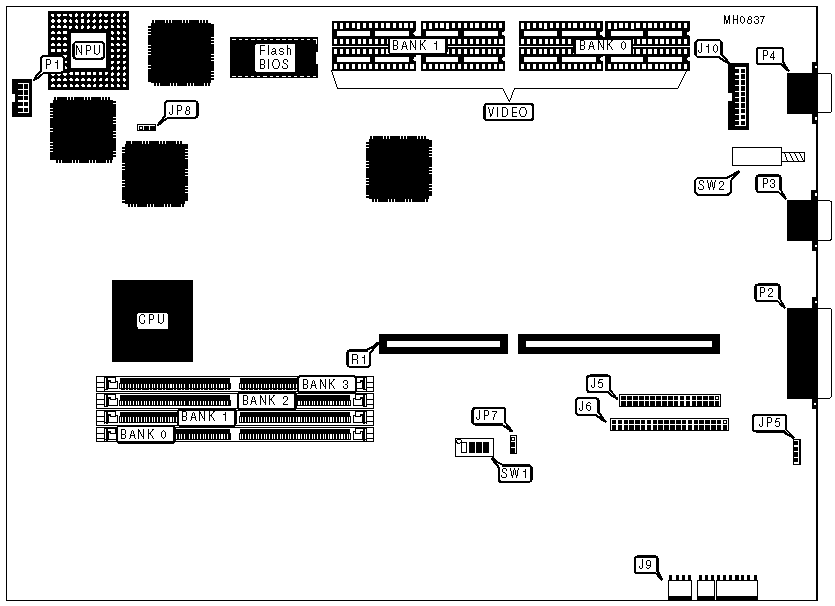

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Floppy drive interface |
J5 |
External battery |
JP5 |
|
IDE interface |
J6 |
Indicator panel assembly |
P1 |
|
Drive power |
J9 |
Parallel port |
P2 |
|
Proprietary VGA feature card |
J10 |
Serial port |
P3 |
|
Speaker (not used) |
JP1 |
VGA port |
P4 |
|
IDE interface LED (not used) |
JP3 |
Riser Card |
R1 |
|
Note:The bus mouse port, headphone jack, and microphone jack are connected to the main board via the indicator panel assembly connector (P1). Locations of JP1 and JP3 are unknown. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
| » |
Parallel port (P2) interrupt select IRQ7 |
JP7 |
pins 2 & 3 closed |
|
Parallel port (P2) interrupt select IRQ5 |
JP7 |
pins 1 & 2 closed | |
| » |
NPU type select 3167 |
JP8 |
pins 2 & 3 closed |
|
NPU type select 80387 |
JP8 |
pins 1 & 2 closed | |
| » |
On board video enabled |
SW1/1 |
Off |
|
On board video disabled |
SW1/1 |
On | |
| » |
Floppy drive interface enabled |
SW1/2 |
Off |
|
Floppy drive interface disabled |
SW1/2 |
On | |
| » |
Password enabled |
SW1/3 |
Off |
|
Password disabled |
SW1/3 |
On | |
| » |
BIOS flash reprogramming enabled |
SW1/4 |
Off |
|
BIOS flash reprogramming disabled |
SW1/4 |
On | |
| » |
Factory configured - do not alter |
SW2 |
Open |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
5MB |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
|
7MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
9MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
13MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
17MB |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
|
19MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
|
20MB |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
|
28MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
36MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
52MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
32KB |
(4) 16K x 4 |
|
Note:Cache is factory installed and is not configurable. | |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(4) 44256 |
NONE |
|
1024KB |
(4) 44256 |
(4) 44256 |
