MORSE TECHNOLOGIES, INC.
80386-33/40 EAGLE CACHE
|
Processor |
80386DX |
|
Processor Speed |
33/40MHz |
|
Chip Set |
Eagle |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/128KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

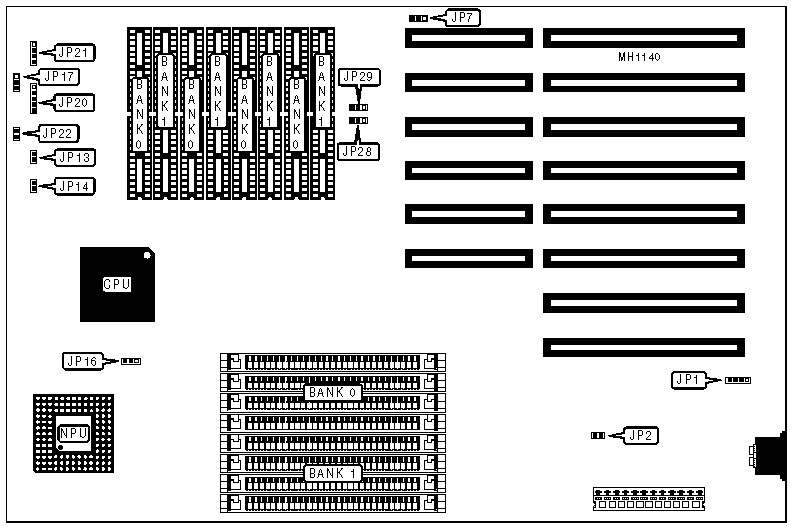

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
JP1 |
Power LED & keylock |
JP20 |
|
Turbo switch |
JP13 |
Speaker |
JP21 |
|
Turbo LED |
JP14 |
Reset switch |
JP22 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Battery type select internal |
JP1 |
pins 2 & 3 closed |
|
Battery type select external |
JP1 |
open | |
| » |
Monitor type select monochrome |
JP2 |
open |
|
Monitor type select color |
JP2 |
closed | |
| » |
CMOS memory normal operation |
JP7 |
pins 2 & 3 closed |
|
CMOS memory clear |
JP7 |
pins 1 & 2 closed | |
| » |
NPU mode select synchronous with CPU |
JP16 |
pins 1 & 2 closed |
|
NPU mode select asynchronous with CPU |
JP16 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
1MB |
NONE |
(4) 256K x 9 |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
4MB |
NONE |
(4) 1M x 9 |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
16MB |
NONE |
(4) 4M x 9 |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
64KB |
(8) 8K x 8 |
NONE |
|
128KB |
(8) 8K x 8 |
(8) 8K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP17 |
JP28 |
JP29 |
|
64KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
128KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
