MULTI-TECH SYSTEMS, INC.
MT-486SBC-33SX/33DX
|
Processor |
80486SX/80486DX |
|
Processor Speed |
33MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
32MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
105mm x 34mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port |
|
NPU Options |
None |
|

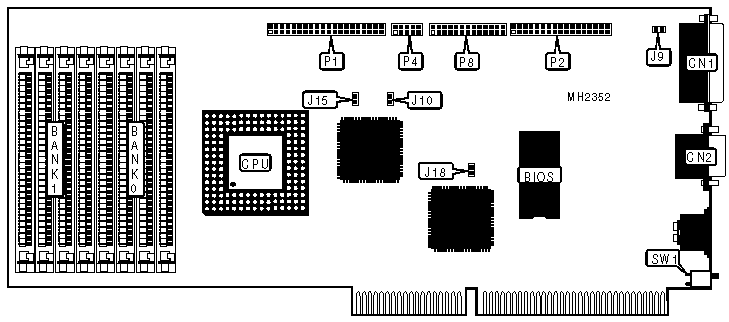

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
IDE interface |
P1 |
|
Serial port 1 |
CN2 |
Floppy drive interface |
P2 |
|
Power LED |
J9 |
Serial port 2 |
P4 |
|
Speaker |
J10 |
Parallel port |
P8 |
|
IDE interface LED |
J15 |
Reset switch |
SW1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
DCD reset enabled(modem on COM1) |
J18 |
Closed |
|
DCD reset disabled(other peripheral on COM1) |
J18 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
