MICRO-STAR INTERNATIONAL CO., LTD.
MS-5119
|
 Processor  |
 Pentium  |
|
 Processor Speed  |
 75/90/100/120/133MHz  |
|
 Chip Set  |
 Intel  |
|
 Max. Onboard DRAM  |
 128MB  |
|
 Cache  |
 256/512KB  |
|
 BIOS  |
 AMI  |
|
 Dimensions  |
 260mm x 220mm  |
|
 I/O Options  |
 Parallel port, serial ports (2), IDE interfaces (2), floppy drive interface, green PC connector, 32-bit PCI slots (3), PS/2 mouse connector  |
|
 NPU Options  |
 None  |
|

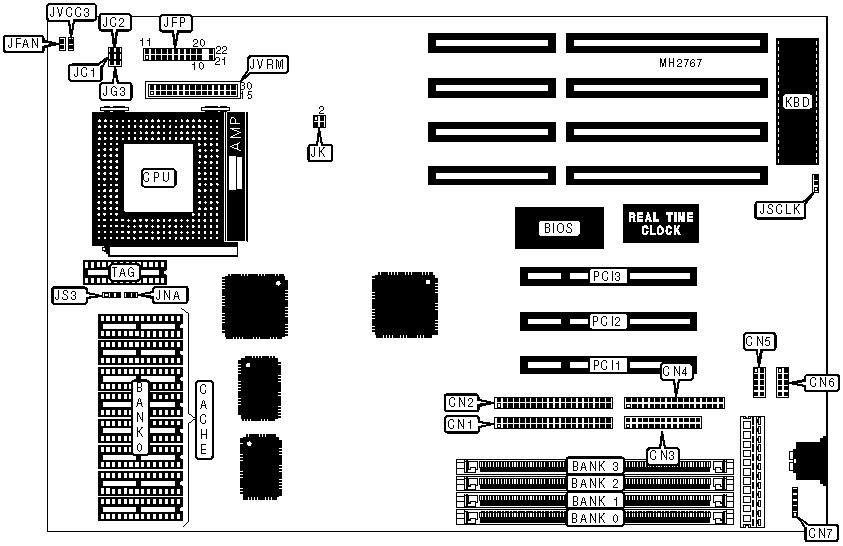

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 IDE interface (primary)  |
 CN1  |
 Speaker  |
 JFP pins 7 - 10  |
|
 IDE interface (secondary)  |
 CN2  |
 Turbo LED  |
 JFP pins 12 & 13  |
|
 Floppy drive interface  |
 CN3  |
 Turbo switch  |
 JFP pins 15 - 17  |
|
 Parallel port  |
 CN4  |
 Reset switch  |
 JFP pins 19 & 20  |
|
 Serial port 2  |
 CN5  |
 IDE interface LED  |
 JFP pins 21 & 22  |
|
 Serial port 1  |
 CN6  |
 Green PC connector  |
 JG3  |
|
 PS/2 mouse connector  |
 CN7  |
 32-bit PCI slots  |
 PCI1 - PCI3  |
|
 Chassis fan power  |
 JFAN  |
 Voltage regulator module  |
 JVRM  |
|
 Power LED & keylock  |
 JFP pins 1 - 5  | ||
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Jumper  |
 Position  | |
|
 »  |
 Next address disabled  |
 JNA  |
 Open  |
|
 Next address enabled  |
 JNA  |
 Closed  | |
|
 »  |
 PCI bus clock/3  |
 JSCLK  |
 pins 1 & 2 closed  |
|
 PCI bus clock/4  |
 JSCLK  |
 pins 2 & 3 closed  | |
|
 DRAM CONFIGURATION  | ||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 4MB  |
 (1) 1M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 4MB  |
 NONE  |
 NONE  |
 (1) 1M x 36  |
 NONE  |
|
 8MB  |
 (1) 2M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 8MB  |
 NONE  |
 NONE  |
 (1) 2M x 36  |
 NONE  |
|
 8MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 NONE  |
 NONE  |
|
 8MB  |
 NONE  |
 NONE  |
 (1) 1M x 36  |
 (1) 1M x 36  |
|
 16MB  |
 (1) 4M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 16MB  |
 NONE  |
 NONE  |
 (1) 4M x 36  |
 NONE  |
|
 16MB  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 NONE  |
 NONE  |
|
 16MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 1M x 36  |
|
 16MB  |
 NONE  |
 NONE  |
 (1) 2M x 36  |
 (1) 2M x 36  |
|
 24MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 2M x 36  |
 (1) 2M x 36  |
|
 24MB  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 (1) 1M x 36  |
 (1) 1M x 36  |
|
 32MB  |
 (1) 8M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 32MB  |
 NONE  |
 NONE  |
 (1) 8M x 36  |
 NONE  |
|
 32MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 NONE  |
 NONE  |
|
 32MB  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 (1) 2M x 36  |
|
 32MB  |
 NONE  |
 NONE  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 40MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 40MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 1M x 36  |
 (1) 1M x 36  |
|
 48MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 2M x 36  |
 (1) 2M x 36  |
|
 48MB  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 64MB  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 64MB  |
 NONE  |
 NONE  |
 (1) 16M x 36  |
 NONE  |
|
 64MB  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 NONE  |
 NONE  |
|
 64MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 64MB  |
 NONE  |
 NONE  |
 (1) 8M x 36  |
 (1) 8M x 36  |
|
 72MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 8M x 36  |
 (1) 8M x 36  |
|
 72MB  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 (1) 1M x 36  |
 (1) 1M x 36  |
|
 80MB  |
 (1) 2M x 36  |
 (1) 2M x 36  |
 (1) 8M x 36  |
 (1) 8M x 36  |
|
 80MB  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 (1) 2M x 36  |
 (1) 2M x 36  |
|
 96MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 8M x 36  |
 (1) 8M x 36  |
|
 96MB  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 128MB  |
 (1) 32M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 128MB  |
 NONE  |
 NONE  |
 (1) 32M x 36  |
 NONE  |
|
 DRAM CONFIGURATION (CON’T)  | ||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 128MB  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
|
 128MB  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 (1) 8M x 36  |
 (1) 8M x 36  |
|
 128MB  |
 NONE  |
 NONE  |
 (1) 16M x 36  |
 (1) 16M x 36  |
|
 CACHE CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 TAG  |
|
 256KB  |
 (8) 32K x 8  |
 (1) 32K x 8  |
|
 512KB  |
 (8) 64K x 8  |
 (1) 32K x 8  |
|
 CACHE JUMPER CONFIGURATION  | |
|
 Size  |
 JS3  |
|
 256KB  |
 pins 2 & 3 closed  |
|
 512KB  |
 pins 1 & 2 closed  |
|
 CPU SPEED CONFIGURATION  | |
|
 Speed  |
 JK  |
|
 75MHz  |
 pins 1 & 3, 2 & 4 closed  |
|
 90MHz  |
 pins 1 & 3 closed  |
|
 100MHz  |
 pins 2 & 4 closed  |
|
 120MHz  |
 pins 1 & 3 closed  |
|
 133MHz  |
 pins 2 & 4 closed  |
|
 CPU VOLTAGE CONFIGURATION  | |
|
 Voltage  |
 JVCC3  |
|
 3.4v  |
 Closed  |
|
 3.5v  |
 Open  |
|
 BUS/CORE RATIO CONFIGURATION  | |||
|
 P54C/CQS/CS  |
 P54CS POR(C-step)  |
 JC1  |
 JC2  |
|
 2/3  |
 2/3  |
 Open  |
 Open  |
|
 1/2  |
 1/2  |
 Closed  |
 Open  |
|
 1/3  |
 1/3  |
 Open  |
 Closed  |
|
 1/4  |
 2/5  |
 Closed  |
 Closed  |
|
 VOLTAGE REGULATOR MODULE PIN IDENTIFICATION  | |||
|
 Pin  |
 Purpose  |
 Pin  |
 Purpose  |
|
 1  |
 VSS  |
 16  |
 VSS  |
|
 2  |
 VSS  |
 17  |
 VSS  |
|
 3  |
 ND  |
 18  |
 V/IO  |
|
 4  |
 V/IO  |
 19  |
 V/IO  |
|
 5  |
 3.3v  |
 20  |
 3.3v  |
|
 6  |
 3.3v  |
 21  |
 3.3v  |
|
 7  |
 VCORE  |
 22  |
 VCORE  |
|
 8  |
 VCORE  |
 23  |
 VCORE  |
|
 9  |
 VSS  |
 24  |
 VCORE  |
|
 10  |
 VCORE  |
 25  |
 VCORE  |
|
 11  |
 PRGOOD  |
 26  |
 UPVRM#  |
|
 12  |
 SENSE  |
 27  |
 DISABLE  |
|
 13  |
 VSS  |
 28  |
 VSS  |
|
 14  |
 5v  |
 29  |
 5v  |
|
 15  |
 5v  |
 30  |
 5v  |
|
 Note: The purpose of the Voltage Regulator Module is to allow different voltage processors to be supported by the motherboard.  | |||
