Processor	80286 (exact location unidentified)
Processor Speed	8/10MHz
Chip Set	Unidentified
Max. Onboard DRAM	1MB
Cache	None
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

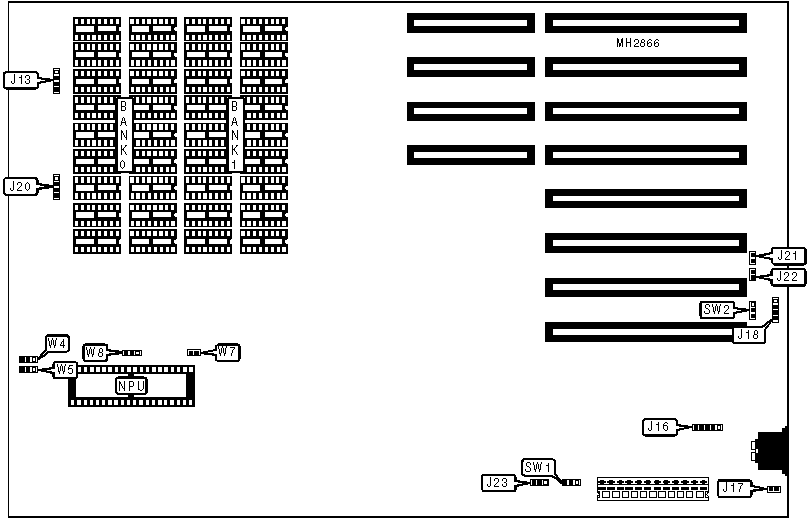

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J13	External battery	J18
External keyboard connector	J16	Turbo switch	J20
Reset switch	J17

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J23	pins 1 & 2 closed
	CMOS memory clear	J23	pins 2 & 3 closed
»	CPU speed select low	SW1	pins 1 & 2 closed
	CPU speed select high	SW1	Open
	CPU speed select logical	SW1	pins 2 & 3 closed
»	Monitor type select color	SW2	pins 1 & 2 closed
	Monitor type select monochrome	SW2	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(18) 4164	(18) 4164
512KB	(18) 41256	NONE
640KB	(18) 41256	(18) 4164
1MB	(18) 41256	(18) 41256

DRAM JUMPER CONFIGURATION
Size	W4	W5
256KB	pins 1 & 2 closed	pins 1 & 2 closed
512KB	pins 2 & 3 closed	pins 1 & 2 closed
640KB	pins 1 & 2 closed	pins 2 & 3 closed
1MB	pins 2 & 3 closed	pins 2 & 3 closed

NPU SPEED CONFIGURATION
Speed	W7	W8
8MHz	Closed	pins 1 & 2 closed
10MHz	Open	pins 2 & 3 closed

BATTERY TYPE CONFIGURATION
Type	J21	J22
3v lithium	Closed	Open
6v lithium	Open	Closed
6v alkaline	Open	Open
