Processor	80386DX
Processor Speed	33MHz
Chip Set	Unidentified
Max. Onboard DRAM	16MB (14MB on external memory card)
Cache	64KB
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	External memory card, PS/2 mouse port
NPU Options	80387DX/3167

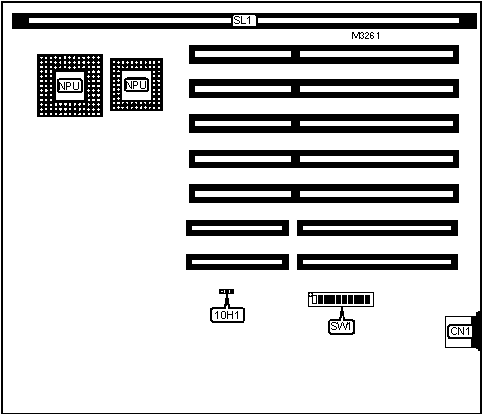

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	External memory card	SL1

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
	Password enabled	10H1	Pins 1 & 2 closed
	Password disabled	10H1	Pins 2 & 3 closed
»	Parallel port enabled	SW1/1	On
	Parallel port disabled	SW1/1	Off
»	Serial port 1 enabled	SW1/2	On
	Serial port 1 disabled	SW1/2	Off
»	Serial port 2 enabled	SW1/3	On
	Serial port 2 disabled	SW1/3	Off
»	Floppy drive interface enabled	SW1/4	On
	Floppy drive interface disabled	SW1/4	Off
»	Floppy drive channel select primary controller (3FX)	SW1/5	Off
	Floppy drive channel select secondary controller (37X)	SW1/5	On
»	NPU disabled	SW1/6	Off
	NPU enabled	SW1/6	On
»	Memory area select 0KB - 640KB	SW1/7	Off
	Memory area select 0KB - 512KB	SW1/7	On
»	PS/2 mouse enabled	SW1/8	On
	PS/2 mouse disabled	SW1/8	Off
»	Monitor type select color	SW1/9	On
	Monitor type select monochrome	SW1/9	Off
»	Factory configured - do not alter	SW1/10	On

DRAM CONFIGURATION

Note: 2MB memory is factory installed and is not configurable. The location is unidentified. To increase memory size, install memory card at SL1.

CACHE CONFIGURATION

Note: 64KB cache is factory installed and is not configurable. The location is unidentified.
