MICRO-STAR INTERNATIONAL CO., LTD.
MS-5130 (VER 1.1)
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
512MB (EDO supported) |
|
Maximum Video Memory |
2MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
280mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), VGA feature connector, VGA connector, cache slot, IR connector, audio bus slot |
|
NPU Options |
None |
|

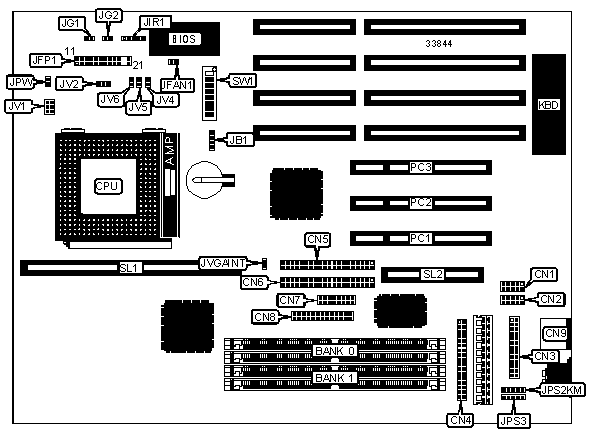

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
CN1 |
Turbo LED |
JFP1 pins 12 & 13 |
|
Serial port 1 |
CN2 |
Turbo switch (not used) |
JFP1 pins 15 & 17 |
|
Parallel port |
CN3 |
Reset switch |
JFP1 pins 19 & 20 |
|
Floppy drive interface |
CN4 |
IDE interface LED |
JFP1 pins 21 & 22 |
|
IDE interface 2 |
CN5 |
Green PC LED |
JG1 |
|
IDE interface 1 |
CN6 |
Green PC connector |
JG2 |
|
VGA connector |
CN7 |
IR connector |
JIR1 |
|
VGA feature connector |
CN8 |
Auxiliary keyboard connector |
JPS3 |
|
PS/2 mouse port |
CN9 |
+5v ground (reserved) |
JPW |
|
External battery |
JB1 |
PS/2 mouse interface |
JPSW2KM |
|
Chassis fan power |
JFAN1 |
32-bit PCI slots |
PC1 - PC3 |
|
Power LED & keylock |
JFP1 pins 1 - 5 |
Cache slot |
SL1 |
|
Speaker |
JFP1 pins 7 & 10 |
Audio bus slot |
SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
On board video IRQ enabled |
JGVAINT |
Closed | |
|
On board video IRQ disabled |
JGVAINT |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 32M x 36 |
None |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
264MB |
(2) 32M x 36 |
(2) 1M x 36 |
|
272MB |
(2) 32M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 32M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
|
Note: Board accepts EDO memory. Banks are interchangeable. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CPU SPEED SELECTION (CYRIX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
120MHz |
50MHz |
2x |
On |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
On |
On |
Off |
Off |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
On |
On |
Off |
Off |
|
CPU SPEED SELECTION (CYRIX, CON’T) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
120MHz |
50MHz |
2x |
Off |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
On |
On |
On |
Off |
|
150MHz |
60MHz |
2x |
On |
Off |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AMD) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
75MHz |
50MHz |
1.5x |
Off |
Off |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AMD, CON’T) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
75MHz |
50MHz |
1.5x |
Off |
On |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
75MHz |
50MHz |
1.5x |
Off |
Off |
Off |
Off |
|
75MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
Off |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL, CON’T) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
75MHz |
50MHz |
1.5x |
Off |
On |
Off |
Off |
|
75MHz |
66MHz |
1.5x |
On |
On |
Off |
On |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
Off |
|
133MHz |
66MHz |
2x |
Off |
Off |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
Off |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION | |||||
|
Voltage |
JV1 |
JV2 |
JV4 |
JV5 |
JV6 |
|
2.4v - 2.6v |
Open |
1 & 2 |
Closed |
Open |
Open |
|
2.6v - 2.8v (P55C) |
Open |
1 & 2 |
Open |
Open |
Closed |
|
3.3v - 3.45v (STD/VR) |
1 & 2, 3 & 4, 5 & 6 |
2 & 3 |
Open |
Open |
Open |
|
3.45v - 3.6v (VRE) |
1 & 2, 3 & 4, 5 & 6 |
2 & 3 |
Open |
Closed |
Open |
|
+0.1v * |
Open |
1 & 2 |
Open |
Closed |
Open |
|
Note: Pins designated should be in the closed position. * = If JV5 is closed, total voltage will increase by 0.1v. | |||||
