MICROWAY, INC.
PC164 SCREAMER
|
 Processor  |
 Alpha  |
|
 Processor Speed  |
 300/333/366/400/433MHz  |
|
 Chip Set  |
 Digital  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 512MB  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 1024KB  |
|
 BIOS  |
 Unidentified  |
|
 Dimensions  |
 305mm x 244mm  |
|
 I/O Options  |
 32-bit PCI slots (2), 64-bit PCI slots (2), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2)  |
|
 NPU Options  |
 None  |
|

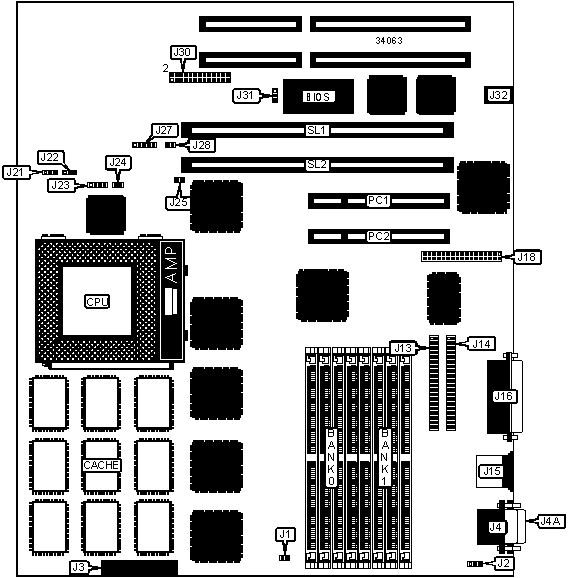

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Chassis fan power  |
 J2  |
 Chassis fan power  |
 J22  |
|
 Power connector  |
 J3  |
 Speaker  |
 J23  |
|
 Serial port 1  |
 J4  |
 Reset switch  |
 J24  |
|
 Serial port 2  |
 J4A  |
 Halt connector  |
 J25  |
|
 IDE interface 2  |
 J13  |
 Power LED & keylock  |
 J27  |
|
 IDE interface 1  |
 J14  |
 IDE interface LED  |
 J28  |
|
 PS/2 mouse port  |
 J15  |
 SROM test port  |
 J32  |
|
 Parallel port  |
 J16  |
 32-bit PCI slots  |
 PC1 & PC2  |
|
 Floppy drive interface  |
 J18  |
 64-bit PCI slots  |
 SL1 & SL2  |
|
 Chassis fan power  |
 J21  | ||
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 »  |
 Factory configured - do not alter  |
 J30 pins 9 & 10  |
 Open  |
|
 »  |
 Factory configured - do not alter  |
 J30 pins 15 & 16  |
 Open  |
|
 »  |
 Mini debugger disabled  |
 J30 pins 21 & 22  |
 Open  |
|
 Mini debugger enabled  |
 J30 pins 21 & 22  |
 Closed  | |
|
 »  |
 Boot option select Windows NT ARC firmware loaded  |
 J30 pins 23 & 24  |
 Open  |
|
 Boot option select fail safe boot loaded  |
 J30 pins 23 & 24  |
 Closed  | |
|
 »  |
 Jumper not used  |
 J30 pins 25 & 26  |
 N/A  |
|
 »  |
 Flash BIOS update enabled  |
 J31  |
 Pins 2 & 3 closed  |
|
 Flash BIOS update disabled  |
 J31  |
 Pins 1 & 2 closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 16MB  |
 (4) 1M x 36  |
 None  |
|
 32MB (A)  |
 (4) 1M x 36  |
 (4) 1M x 36  |
|
 32MB (B)  |
 (4) 2M x 36  |
 None  |
|
 64MB (A)  |
 (4) 2M x 36  |
 (4) 2M x 36  |
|
 64MB (B)  |
 (4) 4M x 36  |
 None  |
|
 128MB (A)  |
 (4) 4M x 36  |
 (4) 4M x 36  |
|
 128MB (B)  |
 (4) 8M x 36  |
 None  |
|
 256MB (A)  |
 (4) 8M x 36  |
 (4) 8M x 36  |
|
 256MB (B)  |
 (4) 16M x 36  |
 None  |
|
 512MB (B)  |
 (4) 16M x 36  |
 (4) 16M x 36  |
|
 DRAM JUMPER CONFIGURATION  | |
|
 Size  |
 J1  |
|
 16MB  |
 Closed  |
|
 32MB (A)  |
 Open  |
|
 32MB (B)  |
 Closed  |
|
 64MB (A)  |
 Open  |
|
 64MB (B)  |
 Closed  |
|
 128MB (A)  |
 Open  |
|
 128MB (B)  |
 Closed  |
|
 256MB (A)  |
 Open  |
|
 256MB (B)  |
 Closed  |
|
 512MB (B)  |
 Open  |
|
 CACHE CONFIGURATION  |
|
 Note: Board can be installed with either 1MB or 2MB of cache. The size of the chips is unidentified.  |
|
 CACHE JUMPER CONFIGURATION  | |
|
 Size  |
 J30  |
|
 1MB  |
 Pins 11 & 12, 13 & 14 open  |
|
 2MB  |
 Pins 11 & 12 open, 13 & 14 closed  |
|
 CACHE SPEED CONFIGURATION  | |
|
 Speed  |
 J30  |
|
 9ns  |
 Pins 17 & 18, 19 & 20 open  |
|
 CPU SPEED SELECTION  | |
|
 Speed  |
 J30  |
|
 300MHz  |
 Pins 3 & 4, 5 & 6 closed  |
|
 333MHz  |
 Pins 3 & 4, 7 & 8 closed  |
|
 366MHz  |
 Pins 3 & 4 closed  |
|
 400MHz  |
 Pins 5 & 6, 7 & 8 closed  |
|
 433MHz  |
 Pins 5 & 6 closed  |
