INTEL CORPORATION
PLATO P54C/PCI QUIN-51
|
Processor |
Pentium |
|
Processor Speed |
75/90MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI bus slots (3), floppy drive interface, IDE interfaces (2), parallel port, serial ports (2) |
|
NPU Options |
None |
|

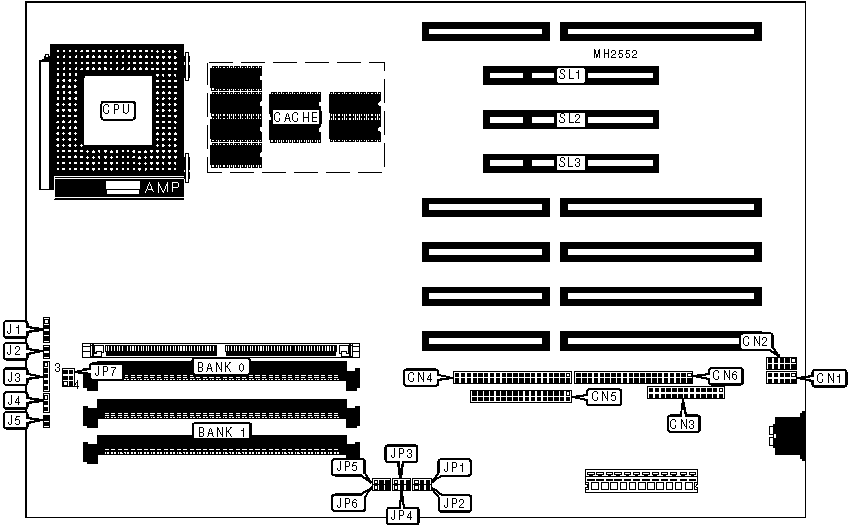

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J1 |
Serial port 2 |
CN2 |
|
Reset switch |
J2 |
Parallel port |
CN3 |
|
Power LED & keylock |
J3 |
IDE interface (PCI bus) |
CN4 |
|
IDE interface LED |
J4 |
Floppy drive interface |
CN5 |
|
Turbo LED |
J5 |
IDE interface (ISA bus) |
CN6 |
|
Serial port 1 |
CN1 |
32-bit PCI bus slots |
SL1 - SL3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select color |
JP1 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
JP1 |
pins 1 & 2 closed | |
|
» |
Password disabled |
JP2 |
pins 1 & 2 closed |
|
Password enabled |
JP2 |
pins 2 & 3 closed | |
|
» |
BIOS setup enabled |
JP3 |
pins 1 & 2 closed |
|
BIOS setup disabled |
JP3 |
pins 2 & 3 closed | |
|
» |
Flash BIOS update enabled |
JP4 |
pins 1 & 2 closed |
|
Flash BIOS update disabled |
JP4 |
pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP5 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP5 |
pins 2 & 3 closed | |
|
» |
Flash normal mode at boot |
JP6 |
pins 2 & 3 closed |
|
Flash recovery mode at boot |
JP6 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
4MB |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(8) 32K x 8 |
|
Note: Cache is factory installed and is not configurable. | |
|
CPU SPEED CONFIGURATION | ||
|
Size |
JP7 | |
|
75MHz |
pins 2 & 3 closed | |
| » |
90MHz |
pins 1 & 2 closed |
