Processor	Pentium
Processor Speed	75/90/100MHz
Chip Set	SIS
Max. Onboard DRAM	128MB
Cache	256/512/1024KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse connector, serial ports (2)
NPU Options	None

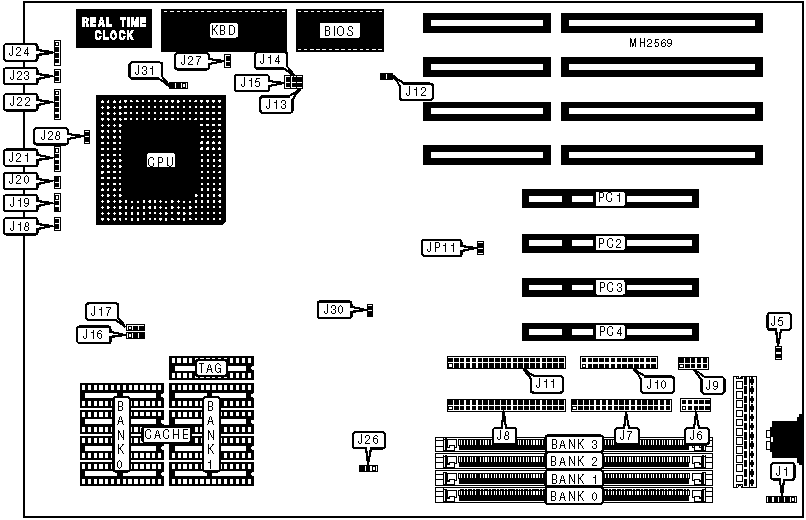

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse connector	J1	Green PC connector	J18
Green PC connector	J5	Turbo LED	J20
Serial port 1	J6	IDE interface LED	J21
Floppy drive interface	J7	Power LED & keylock	J22
IDE interface (primary)	J8	Reset switch	J23
Serial port 2	J9	Speaker	J24
Parallel port	J10	32-bit PCI slots	PC1 - PC4
IDE interface (secondary)	J11

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	BIOS programming type select normal	J12	Open
	BIOS programming type select flash	J12	Closed
»	Factory configured - do not alter	J19	N/A
»	SIMM type select single sided	J26	pins 2 & 3 closed
	SIMM type select double sided	J26	pins 1 & 2 closed
»	Factory configured - do not alter	J27	Open
»	Factory configured - do not alter	J28	Open
»	Factory configured - do not alter	J30	Open
»	On board PCI IDE controller enabled	JP11	Open
	On board PCI IDE controller disabled	JP11	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(1) 256K x 36	(1) 256K x 36	NONE	NONE
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
4MB	(1) 512K x 36	(1) 512K x 36	NONE	NONE
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 2M x 36	(1) 2M x 36	NONE	NONE
20MB	(1) 512K x 36	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
36MB	(1) 512K x 36	(1) 512K x 36	(1) 4M x 36	(1) 4M x 36
40MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36
48MB	(1) 2M x 36	(1) 2M x 36	(1) 4M x 36	(1) 4M x 36
64MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
64MB	(1) 8M x 36	(1) 8M x 36	NONE	NONE
80MB	(1) 2M x 36	(1) 2M x 36	(1) 8M x 36	(1) 8M x 36
128MB	(1) 8M x 36	(1) 8M x 36	(1) 8M x 36	(1) 8M x 36
128MB	(1) 16M x 36	(1) 16M x 36	NONE	NONE

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
256KB	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8
512KB	(4) 64K x 8	(4) 64K x 8	(1) 32K x 8
1MB	(4) 128K x 8	(4) 128K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	J16	J17
256KB	pins 1 & 2 closed	pins 1 & 2 closed
512KB	pins 2 & 3 closed	pins 1 & 2 closed
1MB	pins 2 & 3 closed	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed	J13	J14	J15	J31
75MHz	Open	Open	Closed	pins 1 & 2 closed
90MHZ	Closed	Open	Open	pins 1 & 2 closed
100MHz	Open	Closed	Open	pins 2 & 3 closed
