QUICK TECHNOLOGY, INC.
P54SP
|
Processor |
Pentium |
|
Processor Speed |
90/100MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), green PC connector |
|
NPU Options |
None |
|

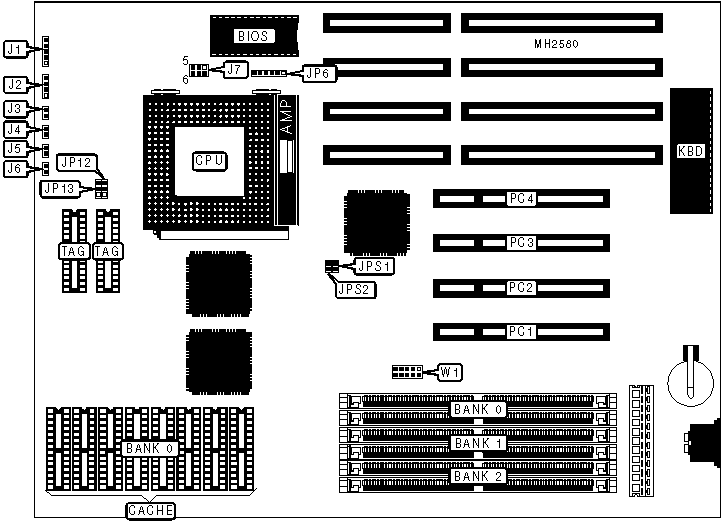

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J1 |
Green PC connector |
J6 |
|
Speaker |
J2 |
Chassis fan power |
J7 |
|
Reset switch |
J3 |
32-bit PCI slots |
PC1 - PC4 |
|
Turbo switch |
J4 |
Legacy header |
W1 |
|
Turbo LED |
J5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
BIOS type select EPROM |
JP6 |
pins 2 & 3, 4 & 5 closed |
|
BIOS type select flash |
JP6 |
pins 1 & 2, 5 & 6 closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
8MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 512K x 36 |
NONE |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
12MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 512K x 36 |
NONE |
(2) 1M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
20MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 512K x 36 |
NONE |
(2) 2M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 2M x 36 |
NONE |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
36MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 512K x 36 |
NONE |
(2) 4M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 2M x 36 |
NONE |
(2) 4M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
80MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 2M x 36 |
NONE |
(2) 8M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
NONE |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
NONE |
NONE |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(8) 32K x 8 |
(2) 8K x 8 |
|
512KB |
(8) 64K x 8 |
(2) 16K x 8 |
|
1MB |
(8) 128K x 8 |
(2) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP12 |
JP13 |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
1MB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
JPS1 |
JPS2 |
|
75MHz |
Open |
Open |
|
90MHz |
Open |
Closed |
|
100MHz |
Closed |
Closed |
