Processor	80486SX
Processor Speed	25MHz
Chip Set	Unidentified
Max. Onboard DRAM	5MB
Cache	None
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	Parallel port, serial ports (2), VGA port, floppy drive interface, IDE interface, riser slot
NPU Options	None

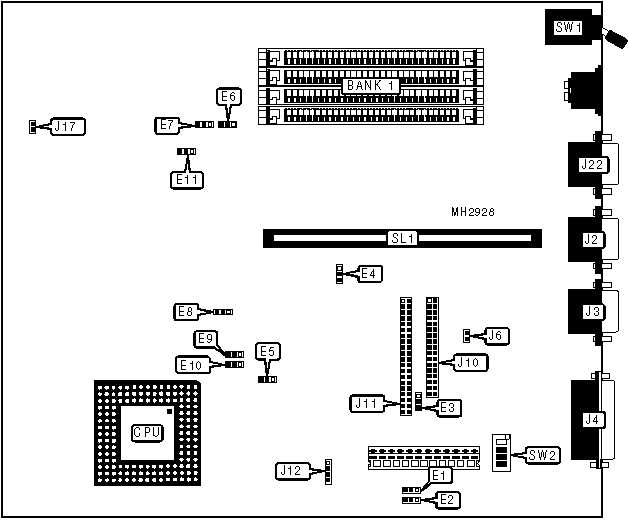

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	J2	External battery	J12
Serial port 1	J3	Power/speed indicator	J17
Parallel port	J4	VGA port	J22
Speaker	J6	Riser Card	SL1
Floppy drive interface	J10	Reset switch	SW1
IDE interface	J11

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Factory configured - do not alter	E1	pins 2 & 3 closed
»	IDE interface interrupt enabled	E2	pins 1 & 2 closed
	IDE interface interrupt disabled	E2	Open
»	Factory configured - do not alter	E3	pins 2 & 3 closed
»	Factory configured - do not alter	E4	pins 2 & 3 closed
»	Factory configured - do not alter	E5	pins 2 & 3 closed
»	Factory configured - do not alter	E8	pins 1 & 2 closed
»	Factory configured - do not alter	E9	pins 2 & 3 closed
»	Parity disabled	E10	pins 2 & 3 closed
	Parity enabled	E10	pins 1 & 2 closed
»	Factory configured - do not alter	E11	pins 2 & 3 closed
»	Onboard RAM 256KB to 512KB enabled	sw2/1	Off
	Onboard RAM 256KB to 512KB disabled	sw2/1	On
»	Onboard RAM 512KB to 640KB enabled	sw2/2	Off
	Onboard RAM 512KB to 640KB disabled	sw2/2	On
»	Security enabled	sw2/3	Off
	Security disabled	sw2/3	On
»	Factory configured - do not alter	sw2/4	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	1MB	NONE
5MB	1MB	(4) 1M x 9
Note: Bank 0 is factory installed and is not configurable. The location is unidentified.

IDE CONFIGURATION
Setting	E6	E7
Primary	pins 2 & 3 closed	pins 2 & 3 closed
Secondary	pins 1 & 2 closed	pins 1 & 2 closed
