PC WARE INTERNATIONAL, INC.
MB-PISCES
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
OPTI |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
260mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, serial ports (2), cache slot, VRM connector |
|
NPU Options |
None |
|

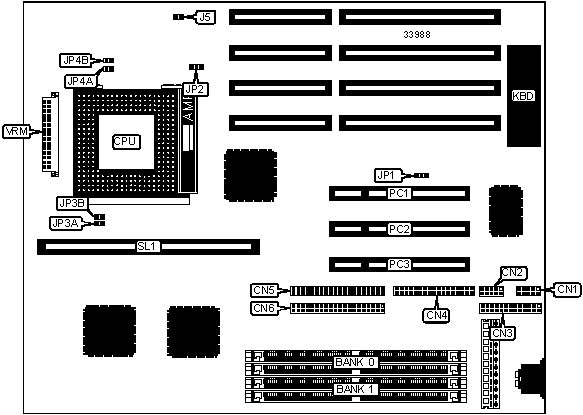

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
IDE interface 1 |
CN6 |
|
Serial port 2 |
CN2 |
Front panel connector |
J5 |
|
Parallel port |
CN3 |
32-bit PCI slots |
PC1 – PC3 |
|
Floppy drive interface |
CN4 |
Cache slot |
SL1 |
|
IDE interface 2 |
CN5 |
VRM connector |
VRM |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Flash BIOS voltage select 12v |
JP1 |
Pins 1 & 2 closed | |
|
Flash BIOS voltage select 5v |
JP1 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CPU SPEED SELECTION (CYRIX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP3A |
JP3B |
JP4A |
JP4B |
|
120MHz |
60MHz |
2x |
Open |
Closed |
Open |
Closed |
|
133MHz |
66MHz |
2x |
Closed |
Open |
Open |
Closed |
|
150MHz |
60MHz |
2x |
Open |
Closed |
Open |
Closed |
|
166MHz |
66MHz |
2x |
Closed |
Open |
Open |
Closed |
|
CPU SPEED SELECTION (AMD) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP3A |
JP3B |
JP4A |
JP4B |
|
75MHz |
50MHz |
1.5x |
Closed |
Closed |
Open |
Open |
|
90MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
Closed |
Open |
Open |
Open |
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP3A |
JP3B |
JP4A |
JP4B |
|
75MHz |
50MHz |
1.5x |
Closed |
Closed |
Open |
Open |
|
90MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
Closed |
Open |
Open |
Open |
|
120MHz |
60MHz |
2x |
Open |
Closed |
Open |
Closed |
|
133MHz |
66MHz |
2x |
Closed |
Open |
Open |
Closed |
|
150MHz |
60MHz |
2.5x |
Open |
Closed |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
180MHz |
60MHz |
3x |
Open |
Closed |
Closed |
Open |
|
200MHz |
66MHz |
3x |
Closed |
Open |
Closed |
Open |
|
CPU VOLTAGE SELECTION | |
|
Voltage |
JP2 |
|
3.3v |
Pins 2 & 3 closed |
|
3.52v |
Pins 1 & 2 closed |
