Processor	80486SX/80486DX
Processor Speed	25/33MHz
Chip Set	VLSI
Video Chip Set	Chips and Technology
Maximum Onboard Memory	16MB
Maximum Video Memory	512KB
Cache	None
BIOS	Award
Dimensions	180mm x 115mm
I/O Options	Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port, PC/104 connectors (2), flat panel connector
NPU Options	None

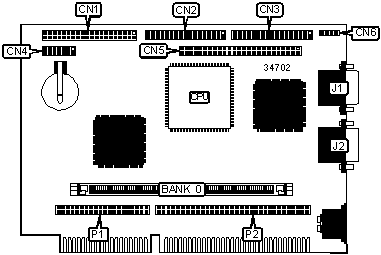

CONNECTIONS
Purpose	Location	Purpose	Location
IDE interface	CN1	VGA port	J1
Floppy drive interface	CN2	Serial port 1	J2
Serial port 2/Parallel port	CN3	PC/104 connector	P1
Flat panel connector	CN5	PC/104 connector	P2
Power connector	CN6

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	CN4	Unidentified

SIMM CONFIGURATION
Size	Bank 0
4MB	(1) 1M x 36
8MB	(1) 2M x 36
16MB	(1) 4M x 36

VIDEO MEMORY CONFIGURATION

Note: 512KB video memory is factory installed and is not configurable.
