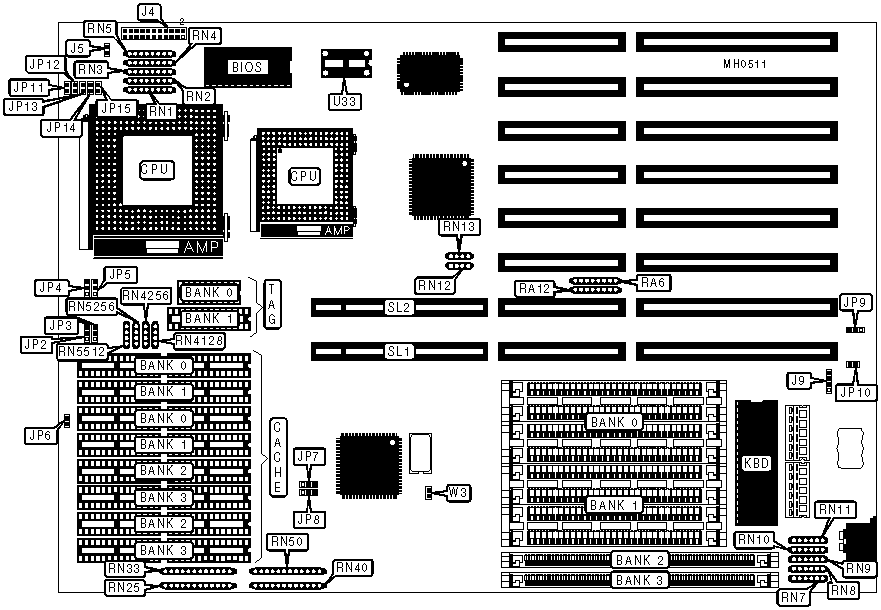

TMC RESEARCH CORPORATION
PAT45PV
|
Processor |
CX486M6/80486SX/80487SX/80486DX/80486DX2/Pentium Overdrive/Pentium /P5T Overdrive |
|
Processor Speed |
33/40/50/60/66(internal)/66MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
128MB |
|
Cache |
128/256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
370mm x 280mm |
|
I/O Options |
32-bit VESA local bus slots (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J4 pins 11 - 15 |
Hard drive LED to case |
J4 pins 10 & 20 |
|
Speaker |
J4 pins 1 - 4 |
Hard drive LED from interface |
J5 |
|
Turbo LED |
J4 pins 8 & 18 |
External battery |
J9 |
|
Reset switch |
J4 pins 9 & 19 |
32-bit VESA local bus slots |
SL1 & SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Resistor |
Position | |
|
» |
CMOS memory normal operation |
JP9 pins 1 & 2 |
Closed |
|
CMOS memory clear |
JP9 pins 1 & 2 |
Open | |
|
» |
Battery type select internal |
JP9 pins 2 & 3 |
Open |
|
Battery type select external |
JP9 pins 2 & 3 |
Closed | |
|
» |
Monitor type select color |
JP10 |
Closed |
|
Monitor type select monochrome |
JP10 |
Open | |
|
» |
Factory configured - do not alter |
RN3 |
Not installed |
|
DRAM CONFIGURATION 1 | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
8MB |
(4) 1M x 9 |
NONE |
(1) 1M x 36 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
12MB |
(4) 1M x 9 |
NONE |
(1) 2M x 36 |
NONE |
|
16MB |
(4) 1M x 9 |
NONE |
(1) 1M x 36 |
(1) 2M x 36 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 2M x 36 |
NONE |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
20MB |
(4) 1M x 9 |
NONE |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 4M x 36 |
NONE |
|
32MB |
(4) 4M x 9 |
NONE |
(1) 4M x 36 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
36MB |
(4) 1M x 9 |
NONE |
(1) 8M x 36 |
NONE |
|
40MB |
(4) 1M x 9 |
NONE |
(1) 1M x 36 |
(1) 8M x 36 |
|
40MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 8M x 36 |
NONE |
|
48MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 2M x 36 |
(1) 8M x 36 |
|
48MB |
(4) 4M x 9 |
NONE |
(1) 8M x 36 |
NONE |
|
52MB |
(4) 1M x 9 |
NONE |
(1) 4M x 36 |
(1) 8M x 36 |
|
56MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 4M x 36 |
(1) 8M x 36 |
|
64MB |
(4) 4M x 9 |
NONE |
(1) 4M x 36 |
(1) 8M x 36 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 8M x 36 |
NONE |
|
64MB |
(4) 16M x 9 |
NONE |
NONE |
NONE |
|
68MB |
(4) 1M x 9 |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(4) 1M x 9 |
(4) 16M x 9 |
NONE |
NONE |
|
72MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 8M x 36 |
(1) 8M x 36 |
|
80MB |
(4) 4M x 9 |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
|
80MB |
(4) 4M x 9 |
(4) 16M x 9 |
NONE |
NONE |
|
96MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 8M x 36 |
(1) 8M x 36 |
|
96MB |
(4) 16M x 9 |
NONE |
(1) 8M x 36 |
NONE |
|
128MB |
(4) 16M x 9 |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(4) 16M x 9 |
(4) 16M x 9 |
NONE |
NONE |
|
DRAM CONFIGURATION 2 | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
NONE |
NONE |
(1) 1M x 36 |
NONE |
|
8MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
|
8MB |
NONE |
NONE |
(1) 2M x 36 |
NONE |
|
12MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 2M x 36 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
NONE |
NONE |
(1) 2M x 36 |
(1) 2M x 36 |
|
16MB |
NONE |
NONE |
(1) 4M x 36 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 2M x 36 |
|
20MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 4M x 36 |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
NONE |
NONE |
(1) 2M x 36 |
(1) 4M x 36 |
|
32MB |
NONE |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
|
32MB |
NONE |
NONE |
(1) 8M x 36 |
NONE |
|
36MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 8M x 36 |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
|
40MB |
NONE |
NONE |
(1) 2M x 36 |
(1) 8M x 36 |
|
44MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 1M x 36 |
(1) 2M x 36 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 2M x 36 |
(1) 2M x 36 |
|
48MB |
NONE |
NONE |
(1) 4M x 36 |
(1) 8M x 36 |
|
52MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 1M x 36 |
(1) 4M x 36 |
|
56MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 2M x 36 |
(1) 4M x 36 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
NONE |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 1M x 36 |
(1) 8M x 36 |
|
72MB |
(4) 4M x 9 |
4) 4M x 9 |
(1) 2M x 36 |
(1) 8M x 36 |
|
80MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 8M x 36 |
|
96MB |
(4) 4M x 9 |
(4) 4M x 9 |
(1) 8M x 36 |
(1) 8M x 36 |
|
DRAM RESISTOR CONFIGURATION | ||
|
Table |
RA6 |
RA12 |
|
Configuration 1 |
Installed |
Not installed |
|
Configuration 2 |
Not installed |
Installed |
|
SIMM SIZE CONFIGURATION | |||
|
» Size |
RN12 |
RN13 | |
| » |
16M x 9 SIMMs not used |
Installed |
Not installed |
| » |
16M x 9 SIMMs used |
Not installed |
Installed |
|
CPU TYPE CONFIGURATION | |||||
|
Setting |
JP7 |
JP8 |
RN1 |
RN2 |
RN4 |
|
CX486M6 |
pins 2 & 3 closed |
pins 2 & 3 closed |
Installed |
Not installed |
Not installed |
|
80486SX |
pins 2 & 3 closed |
pins 2 & 3 closed |
Installed |
Not installed |
Not installed |
|
80487SX |
pins 2 & 3 closed |
pins 2 & 3 closed |
Not installed |
Not installed |
Installed |
|
80486DX |
pins 2 & 3 closed |
pins 2 & 3 closed |
Not installed |
Installed |
Not installed |
|
80486DX2 |
pins 2 & 3 closed |
pins 2 & 3 closed |
Not installed |
Installed |
Not installed |
|
P24T |
pins 2 & 3 closed |
pins 2 & 3 closed |
Not installed |
Not installed |
Installed |
|
Pentium |
pins 1 & 2 closed |
pins 1 & 2 closed |
Not installed |
Not installed |
Not installed |
|
P5T Overdrive |
pins 1 & 2 closed |
pins 1 & 2 closed |
Not installed |
Not installed |
Not installed |
|
CPU TYPE CONFIGURATION (CON’T) | ||||||
|
Setting |
RN5 |
RN7 |
RN8 |
RN9 |
RN10 |
RN11 |
|
CX486M6 |
Not installed |
Not installed |
Not installed |
Installed |
Not installed |
Not installed |
|
80486SX |
Not installed |
Installed |
Not installed |
Not installed |
Not installed |
Not installed |
|
80487SX |
Not installed |
Not installed |
Not installed |
Not installed |
Not installed |
Not installed |
|
80486DX |
Not installed |
Not installed |
Installed |
Not installed |
Not installed |
Not installed |
|
80486DX2 |
Not installed |
Not installed |
Installed |
Not installed |
Not installed |
Not installed |
|
P24T |
Not installed |
Not installed |
Installed |
Not installed |
Installed |
Not installed |
|
Pentium |
Installed |
Not installed |
Not installed |
Not installed |
Not installed |
Installed |
|
P5T Overdrive |
Installed |
Not installed |
Not installed |
Not installed |
Not installed |
Installed |
|
CPU SPEED CONFIGURATION | ||||||
|
Speed |
JP6 |
JP11 |
JP12 |
JP13 |
JP14 |
JP15 |
|
33MHz |
Open |
Closed |
Open |
Open |
Open |
Open |
|
40MHz |
Open |
Open |
Closed |
Open |
Open |
Open |
|
50MHz |
Closed |
Open |
Open |
Closed |
Open |
Open |
|
66iMHz |
Open |
Closed |
Open |
Open |
Open |
Open |
|
66MHz |
Open |
Open |
Open |
Open |
Closed |
Open |
|
Oscillator U33 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
CACHE CONFIGURATION | ||||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
TAG Bank 0 |
TAG Bank 1 |
|
128KB |
(4) 32K x 8 |
NONE |
NONE |
NONE |
(1) 8K x 8 |
(1) 64K x 1 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
NONE |
NONE |
(1) 32K x 8 |
(1) 64K x 1 |
|
256KB |
(4) 32K x 8 |
NONE |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
(1) 64K x 1 |
|
512KB |
(4) 32K x 8 |
(4) 32K x 8 |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
(1) 64K x 1 |
|
Note: The first two configurations are for use in 80486-based machines. The second two are for use in Pentium-based machines. | ||||||
|
CACHE JUMPER CONFIGURATION | ||||
|
Size |
JP2 |
JP3 |
JP4 |
JP5 |
|
128KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
|
512KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CACHE RESISTOR CONFIGURATION | ||||
|
Size |
RN4128 |
RN4256 |
RN5256 |
RN5512 |
|
128KB |
Installed |
Not installed |
Not installed |
Not installed |
|
256KB |
Not installed |
Installed |
Not installed |
Not installed |
|
256KB |
Not installed |
Not installed |
Installed |
Not installed |
|
512KB |
Not installed |
Not installed |
Not installed |
Installed |
|
VESA BUS SPEED CONFIGURATION | ||||
|
Speed |
RN25 |
RN33 |
RN40 |
RN50 |
|
25MHz |
Installed |
Not installed |
Not installed |
Not installed |
|
33MHz |
Not installed |
Installed |
Not installed |
Not installed |
|
40MHz |
Not installed |
Not installed |
Installed |
Not installed |
|
50MHz |
Not installed |
Not installed |
Not installed |
Installed |
