TMC RESEARCH CORPORATION
PAT38PX (VER. 4.0)
|
Processor |
80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card slot |
|
NPU Options |
80387/3167 |
|

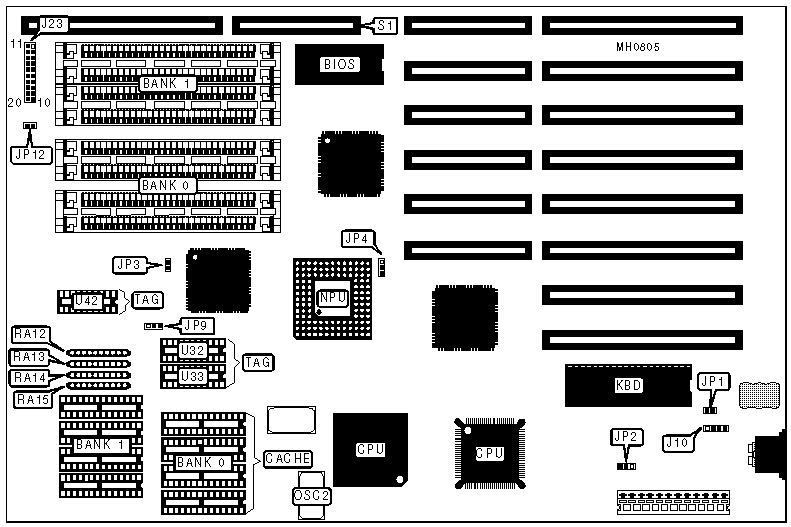

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J10 |
Reset switch |
J23 pins 9 & 19 |
|
Speaker |
J23 pins 1 - 4 |
IDE LED in |
J23 pins 10 & 20 |
|
Power LED & keylock |
J23 pins 11 - 15 |
IDE LED out |
JP12 |
|
Turbo switch |
J23 pins 7 & 17 |
32-bit external memory card |
S1 |
|
Turbo LED |
J23 pins 8 & 18 |
|
|
|
Note: Board may be supplied with a surface mounted 80386DX. |
|||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
Monitor type select color |
JP1 |
Closed |
|
|
Monitor type select monochrome |
JP1 |
Open |
|
» |
CMOS memory normal operation (internal battery) |
JP2 |
pins 1 & 2 closed |
|
|
CMOS memory normal operation (external battery at J10) |
JP2 |
Open |
|
|
CMOS memory clear |
JP2 |
pins 2 & 3 closed |
|
» |
Bus speed select iOSC/6 |
JP3 |
Open |
|
|
Bus speed select iOSC/8 |
JP3 |
Closed |
|
» |
NPU mode select synchronous with CPU |
JP4 |
pins 2 & 3 closed |
|
|
NPU mode select synchronous with OSC2/2 |
JP4 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB (A) |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB (A) |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
6MB (A) |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
6MB (B) |
(4) 256K x 9 |
(4) 256K x 9 |
(36) 411000 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB (A) |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
12MB (A) |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
12MB (B) |
(4) 1M x 9 |
(4) 1M x 9 |
(36) 411000 |
NONE |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
16MB (A) |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
24MB (B) |
(4) 4M x 9 |
NONE |
(36) 411000 |
(36) 411000 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
64MB (A) |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
Notes: Banks 2 & 3 in settings (A) are used when proprietary external memory card SIM64P is installed; banks 2 & 3 in settings (B) are used when card DIP8P is installed. |
||||
|
CACHE CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U32) |
TAG (U42) |
|
32KB |
(4) 8K x 8 |
NONE |
(1) 8K x 8 |
(1) 4K x 1 or (1) 16K x 1 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
(1) 4K x 1 or (1) 16K x 1 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
(1) 16K x 1 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(2) 32K x 8 |
(1) 16K x 1 |
|
Notes: If DRAM is £ 8MB, all cache sizes may be installed; if DRAM is > 8MB and £ 16MB,64, 128 or 256KB cache must be installed; if DRAM is > 16MB and £ 32MB, 128 or 256KB cache must be installed; if DRAM is > 32MB, 256KB cache must be installed. |
||||
|
CACHE JUMPER/RESISTOR CONFIGURATION |
|||||
|
Size |
JP9 |
RA12 |
RA13 |
RA14 |
RA15 |
|
32KB |
1 & 2 |
Installed |
Not installed |
Not installed |
Not installed |
|
64KB |
1 & 2 |
Not installed |
Installed |
Not installed |
Not installed |
|
128KB |
1 & 2 |
Not installed |
Not installed |
Installed |
Not installed |
|
256KB |
2 & 3 |
Not installed |
Not installed |
Not installed |
Installed |
|
Note: Pins designated should be in the closed position. |
|||||
