TEXAS INSTRUMENTS
SYSTEM SP1000E
|
 Processor  |
 80386DX  |
|
 Processor Speed  |
 16MHz  |
|
 Chip Set  |
 AMD  |
|
 Max. onboard DRAM  |
 4MB  |
|
 Cache  |
 None  |
|
 BIOS  |
 AMD  |
|
 Dimensions  |
 355mm x 304mm  |
|
 I/O Options  |
 32-bit proprietary bus slot  |
|
 NPU Options  |
 80387DX  |
|

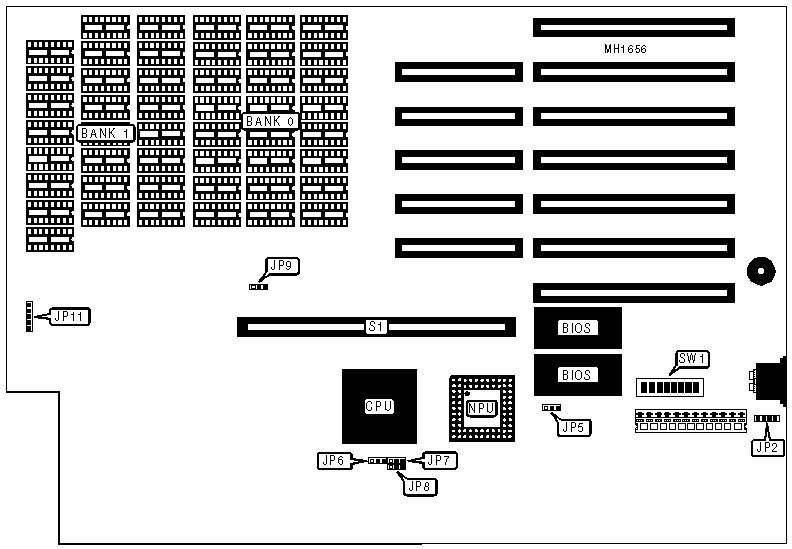

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 External battery  |
 JP2  |
 32-bit proprietary bus slot  |
 S1  |
|
 Control panel connector  |
 JP11  | ||
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Jumper/Switch  |
 Position  | |
| » |
 Monitor type select CGA  |
 SW1/switch 5  |
 Off  |
|
 Monitor type select monochrome or EGA  |
 SW1/switch 5  |
 On  | |
| » |
 CPU speed select smart mode  |
 SW1/switch 6  |
 On  |
| » |
 CPU speed select 16MHz  |
 SW1/switch 6  |
 Off  |
| » |
 Factory configured - do not alter  |
 SW1/switch 7  |
 Off  |
|
 Note:In the smart mode, the processor slows down during accesses to the diskette drive.  | |||
|
 BIOS CONFIGURATION  | ||||||
|
 BIOS  |
 JP5  |
 SW1/switch 1  |
 SW1/switch 2  |
 SW1/switch 3  |
 SW1/switch 4  | |
| » |
 27156  |
 pins 1 & 2  |
 On  |
 On  |
 Off  |
 Off  |
|
 27128  |
 pins 1 & 2  |
 Off  |
 Off  |
 On  |
 On  | |
|
 27512  |
 pins 2 & 3  |
 Off  |
 Off  |
 On  |
 On  | |
|
 Note:Pins designated should be in the closed position.  | ||||||
|
 NPU CONFIGURATION  | |||
|
 NPU  |
 JP6  |
 JP7  |
 JP8  |
|
 Enabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 SYSTEM DRAM CONFIGURATION  | |||
|
 Size  |
 Bank 0  |
 Bank 1  |
 JP9  |
|
 2MB  |
 (16) 411000  |
 NONE  |
 pins 2 & 3 closed  |
|
 4MB  |
 (16) 411000  |
 (16) 411000  |
 pins 1 & 2 closed  |
|
 SYSTEM MEMORY MODE CONFIGURATION  | |||
|
 Base  |
 BIOS  |
 External Memory  |
 SW1/8  |
|
 640KB  |
 Normal  |
 0KB  |
 On  |
|
 640KB  |
 Loaded high  |
 0KB  |
 Off  |
|

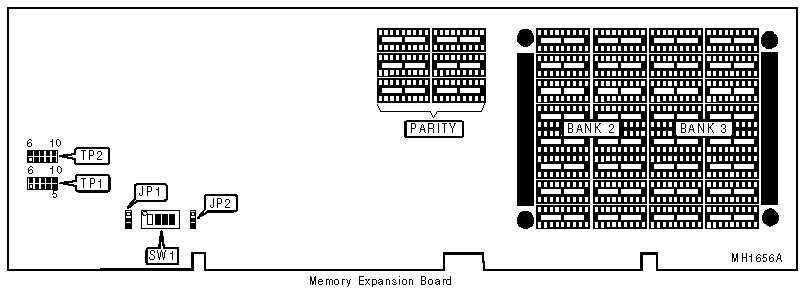

 USER CONFIGURABLE SETTINGS FOR EXTERNAL MEMORY  | |||
|
 Function  |
 Jumper  |
 Position  | |
| » |
 Factory configured - do not alter  |
 JP1  |
 pins 1 & 2 closed  |
| » |
 Factory configured - do not alter  |
 JP2  |
 pins 2 & 3 closed  |
| » |
 Factory configured - do not alter  |
 TP1  |
 pins 3 & 8, 4 & 9 closed  |
| » |
 Factory configured - do not alter  |
 TP2  |
 pins 3 & 8, 4 & 9 closed  |
|

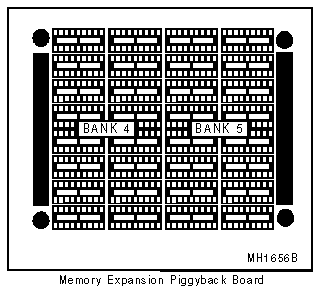

 EXTERNAL MEMORY CONFIGURATION  | ||||
|
 Size  |
 Bank 2  |
 Bank 3  |
 Bank 4  |
 Bank 5  |
|
 2MB  |
 (16) 411000  |
 NONE  |
 NONE  |
 NONE  |
|
 4MB  |
 (16) 411000  |
 (16) 411000  |
 NONE  |
 NONE  |
|
 6MB  |
 (16) 411000  |
 (16) 411000  |
 (16) 411000  |
 NONE  |
|
 8MB  |
 (16) 411000  |
 (16) 411000  |
 (16) 411000  |
 (16) 411000  |
|
 EXTERNAL MEMORY SWITCH CONFIGURATION  | |||
|
 Size  |
 SW1/switch 1  |
 SW1/switch 2  |
 SW1/switch 3  |
|
 2MB  |
 On  |
 On  |
 On  |
|
 4MB  |
 Off  |
 On  |
 On  |
|
 6MB  |
 Off  |
 Off  |
 On  |
|
 8MB  |
 Off  |
 Off  |
 Off  |
