SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-433
|
Processor |
CX486S/80486SX/SL80486SX/CX486DX/AM486DX/SL AM486DX/UMC U5/ 80486DX/AM486DX2/SL AM486DX2/CX486DX2/80486DX2/CX486DX4/ SL AM486DX4/AM486DX4/80486DX4/P24D/Pentium Overdrive |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz |
|
Chip Set |
UMC |
|
Max. Onboard DRAM |
256MB |
|
Cache |
128/256/512/1024KB |
|
BIOS |
AMI |
|
Dimensions |
260 x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2) |
|
NPU Options |
None |
|

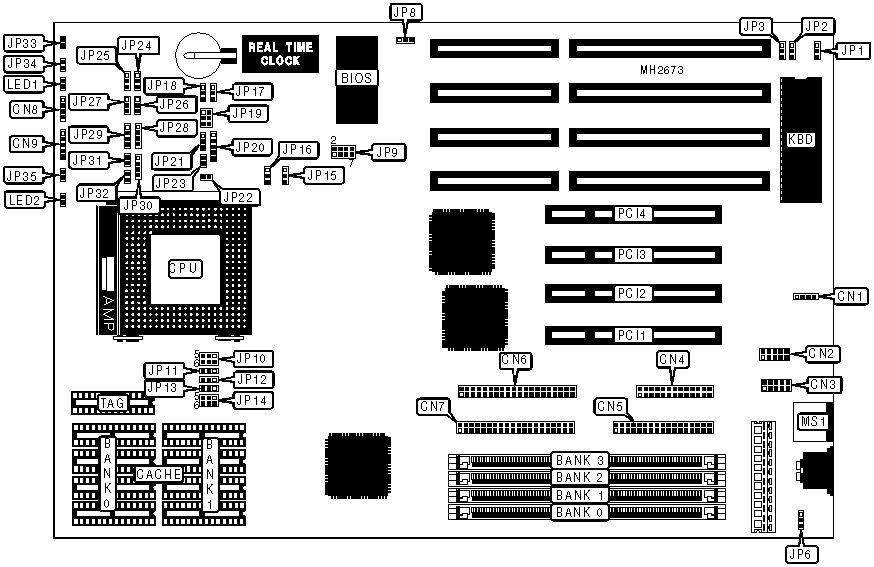

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
CN1 |
Green PC connector |
JP6 |
|
Serial port 2 |
CN2 |
Reset switch |
JP33 |
|
Serial port 1 |
CN3 |
Turbo switch |
JP34 |
|
Parallel port |
CN4 |
EPMI connector |
JP35 |
|
Floppy drive interface |
CN5 |
Turbo LED |
LED1 |
|
IDE linterface (secondary) |
CN6 |
IDE interface LED |
LED2 |
|
IDE interface (primary) |
CN7 |
PS/2 mouse port |
MS1 |
|
Speaker |
CN8 |
32-bit PCI slots |
PCI1 - PCI4 |
|
Power LED & keylock |
CN9 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Flash BIOS voltage select 5v |
JP8 |
pins 2 & 3 closed |
|
Flash BIOS voltage select 12v |
JP8 |
pins 1 & 2 closed | |
|
» |
CPU cache type select write back |
JP24 |
pins 2 & 3 closed |
|
CPU cache type select write though |
JP24 |
pins 1 & 2 closed | |
|
CPU cache type select other CPU |
JP24 |
Open | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
NONE |
NONE |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
2MB |
(1) 512K x 36 |
NONE |
NONE |
NONE |
|
3MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
6MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
12MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
16MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
34MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
48MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
64MB |
(1) 16M x 36 |
NONE |
NONE |
NONE |
|
66MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
72MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
80MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
96MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
96MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
NONE |
|
160MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
192MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
|
192MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
256MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
128KB |
(4) 32K x 8 |
Open |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
256KB |
(4) 64K x 8 |
Open |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
Open |
(1) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 64K x 8 |
|
CACHE JUMPER CONFIGURATION | ||||
|
Size |
JP11 |
JP12 |
JP13 |
JP14 |
|
128KB |
Open |
Open |
2 & 3 |
Open |
|
256KB |
Open |
Open |
1 & 2 |
1 & 2 |
|
256KB |
Open |
1 & 2 |
2 & 3 |
1 & 2 |
|
512KB |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2, 3 & 4 |
|
512KB |
Open |
2 & 3 |
1 & 2 |
1 & 2, 3 & 4 |
|
1MB |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2, 3 & 4, 5 & 6 |
|
Note: Pins designated should be in closed position. | ||||
|
CPU TYPE CONFIGURATION | |||||
|
Type |
JP10 |
JP17 |
JP19 |
JP20 |
JP21 |
|
CX486S |
1 & 3, 4 & 6 |
2 & 3 |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2 |
|
80486SX |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
SL80486SX |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
CX486DX |
1 & 3, 4 & 6 |
2 & 3 |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2 |
|
AM486DX |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
SL AM486DX |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
UMC U5 |
2 & 4, 3 & 5 |
Open |
1 & 2 |
Open |
2 & 3 |
|
80486DX |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
AM486DX2 |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
SL AM486DX2 |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
CX486DX2 |
1 & 3, 4 & 6 |
2 & 3 |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2 |
|
80486DX2 |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
CX486DX4 |
1 & 3, 4 & 6 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
SL AM486DX4 |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
AM486DX4 |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
80486DX4 |
1 & 3, 2 & 4 |
Open |
1 & 2 |
Open |
Open |
|
P24D |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4 |
2 & 3, 4 & 5 |
1 & 2 |
|
P24T |
1 & 3, 2 & 4 |
1 & 2 |
3 & 4, 5 & 6 |
2 & 3, 4 & 5 |
1 & 2 |
|
Note: Pins designated should be in closed position. | |||||
|
CPU TYPE CONFIGURATION (CONT) | |||||
|
Type |
JP22 |
JP23 |
JP25 |
JP26 |
JP27 |
|
CX486S |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
80486SX |
Open |
Open |
2 & 3 |
Open |
Open |
|
SL80486SX |
Open |
Open |
2 & 3 |
Open |
Open |
|
CX486DX |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
AM486DX |
Open |
Open |
2 & 3 |
Open |
Open |
|
SL AM486DX |
Open |
Open |
2 & 3 |
Open |
Open |
|
UMC U5 |
Open |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
80486DX |
Open |
Open |
2 & 3 |
Open |
Open |
|
AM486DX2 |
Open |
Open |
2 & 3 |
Open |
Open |
|
SL AM486DX2 |
Open |
Open |
2 & 3 |
Open |
Open |
|
CX486DX2 |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
80486DX2 |
Open |
Open |
2 & 3 |
Open |
Open |
|
CX486DX4 |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
SL AM486DX4 |
Open |
Open |
2 & 3 |
Open |
Open |
|
AM486DX4 |
Open |
Open |
2 & 3 |
Open |
Open |
|
80486DX4 |
Open |
Open |
2 & 3 |
Open |
Open |
|
P24D |
Closed |
Closed |
2 & 3 |
Open |
Open |
|
P24T |
Open |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in closed position. | |||||
|
CPU TYPE CONFIGURATION (CONT) | |||||
|
Type |
JP28 |
JP29 |
JP30 |
JP31 |
JP32 |
|
CX486S |
2 & 3 |
1 & 2 |
Open |
Open |
Open |
|
80486SX |
2 & 3 |
Open |
Open |
Open |
Open |
|
SL80486SX |
2 & 3 |
Open |
Open |
Open |
Open |
|
CX486DX |
1 & 2, 3 & 4 |
2 & 3 |
3 & 4 |
Open |
Open |
|
AM486DX |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL AM486DX |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
UMC U5 |
2 & 3 |
3 & 4 |
1 & 2, 3 & 4 |
Open |
Open |
|
80486DX |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
AM486DX2 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL AM486DX2 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
CX486DX2 |
1 & 2, 3 & 4 |
2 & 3 |
3 & 4 |
Open |
Open |
|
80486DX2 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
CX486DX4 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL AM486DX4 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
AM486DX4 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
80486DX4 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
P24D |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
P24T |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
Open |
|
Note: Pins designated should be in closed position. | |||||
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JP1 |
JP2 |
JP3 |
|
25MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
33MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
40MHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
50iMHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
50MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
66iMHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
75iMHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
100iMHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CPU CLOCK CONFIGURATION | ||
|
CPU Type |
Clock Ratio |
JP18 |
|
DX4-75 |
3:1 |
Open |
|
DX4-100 |
3:1 |
Open |
|
DX4-100 |
2:1 |
pins 2 & 3 closed |
|
Other CPU |
Other CPU |
Open |
|
CPU CLOCK CONFIGURATION - AMD | ||
|
CPU Type |
Clock Ratio |
JP18 |
|
DX2-80 |
3:1 |
pins 2 & 3 closed |
|
DX2-80 |
2:1 |
pins 1 & 2 closed |
|
DX4-100 |
3:1 |
pins 2 & 3 closed |
|
DX4-100 |
2:1 |
pins 1 & 2 closed |
|
Other CPU |
Other CPU |
Open |
|
CPU VOLTAGE CONFIGURATION | |||
|
Voltage |
JP9 |
JP15 |
JP16 |
|
3.3v |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
3.45v |
pins 3 & 4 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
3.6v |
pins 5 & 6 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
4v |
pins 7 & 8 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
5v |
Open |
pins 1 & 2 closed |
pins 2 & 3 closed |
