SUPER MICRO
P54CT-PCI (REV. 1.2)
|
Processor |
Pentium |
|
Processor Speed |
75/90/100MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512/1024KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slot, 32-bit PCI slots (4), green PC connector |
|
NPU Options |
None |
|

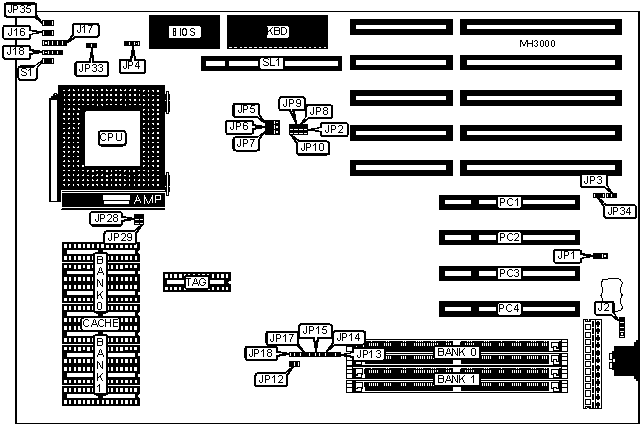

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J2 |
Turbo LED |
JP35 |
|
Turbo switch |
J16 |
32-bit PCI slots |
PC1 - PC4 |
|
Power LED & keylock |
J17 |
Reset switch |
S1 |
|
Speaker |
J18 |
32-bit VESA local bus slot |
SL1 |
|
Green PC connector |
JP34 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory normal operation |
JP1 |
pins 2 & 3 closed |
|
CMOS memory clear |
JP1 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP2 |
Open |
|
» |
Factory configured - do not alter |
JP3 |
Open |
|
» |
Factory configured - do not alter |
JP4 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
JP5 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP6 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP7 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP12 |
Open |
|
» |
Factory configured - do not alter |
JP13 |
Open |
|
» |
Factory configured - do not alter |
JP14 |
Closed |
|
» |
Factory configured - do not alter |
JP15 |
Open |
|
» |
Factory configured - do not alter |
JP17 |
Closed |
|
» |
Factory configured - do not alter |
JP18 |
Closed |
|
» |
Factory configured - do not alter |
JP33 |
Open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP28 |
JP29 |
|
256KB |
Open |
Open |
|
512KB |
Closed |
Open |
|
1MB |
Closed |
Closed |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JP8 |
JP9 |
JP10 |
|
75MHz |
Closed |
Closed |
Open |
|
90MHz |
Closed |
Open |
Closed |
|
100MHz |
Open |
Closed |
Open |
