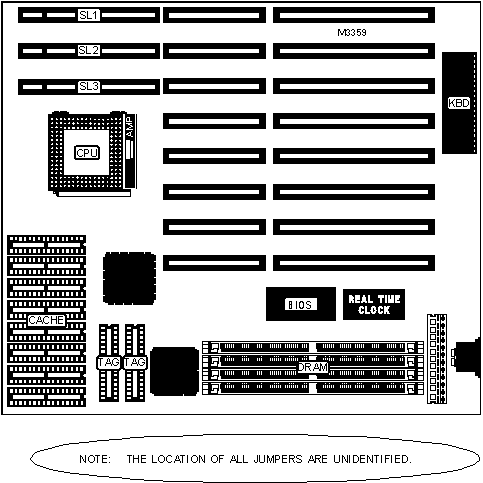

MB-486VI

SPRINT MANUFACTURING CORPORATION

MB-486VI

Processor

80486SX/80486DX/80486DX2/80486DX4/P24D/P24T

Processor Speed

16/20/25/33/40/50(internal)/50/66(internal)/75(internal)/ 80(internal)/100(internal)MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

128MB

Maximum Video Memory

None

Cache

64/128/256/512/1024KB

BIOS

AMI

Dimensions

254mm x 218mm

I/O Options

32-bit VESA local bus slots (3)

NPU Options

None

CONNECTIONS

Purpose

Location

32-bit VESA local bus slots

SL1 - SL3

USER CONFIGURABLE SETTINGS

Function

Label

Position

Monitor type select color

JP17

Closed

Monitor type select monochrome

JP17

Open

BIOS type select EPROM

JP18

Pins 1 & 2 closed

BIOS type select flash

JP18

Pins 2 & 3 closed

»

Factory configured - do not alter

JP22

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

None

None

None

2MB

(1) 512K x 36

None

None

None

2MB

(1) 256K x 36

(1) 256K x 36

None

None

3MB

(1) 512K x 36

(1) 256K x 36

None

None

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

None

3MB

(1) 256K x 36

(1) 512K x 36

None

None

4MB

(1) 1M x 36

None

None

None

4MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

None

4MB

(1) 512K x 36

(1) 512K x 36

None

None

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 1M x 36

(1) 256K x 36

None

None

5MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

None

5MB

(1) 256K x 36

(1) 1M x 36

None

None

6MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

None

6MB

(1) 1M x 36

(1) 512K x 36

None

None

6MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

None

6MB

(1) 512K x 36

(1) 1M x 36

None

None

7MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

7MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

8MB

(1) 2M x 36

None

None

None

8MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

None

8MB

(1) 1M x 36

(1) 1M x 36

None

None

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

9MB

(1) 2M x 36

(1) 256K x 36

None

None

9MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

None

9MB

(1) 256K x 36

(1) 2M x 36

None

None

10MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

None

10MB

(1) 2M x 36

(1) 512K x 36

None

None

10MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

10MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

None

10MB

(1) 512K x 36

(1) 2M x 36

None

None

11MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

12MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

12MB

(1) 2M x 36

(1) 1M x 36

None

None

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

None

12MB

(1) 1M x 36

(1) 2M x 36

None

None

13MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

14MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

14MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

None

None

None

16MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

None

16MB

(1) 2M x 36

(1) 2M x 36

None

None

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

17MB

(1) 4M x 36

(1) 256K x 36

None

None

17MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

None

17MB

(1) 256K x 36

(1) 4M x 36

None

None

18MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

None

18MB

(1) 4M x 36

(1) 512K x 36

None

None

18MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

None

18MB

(1) 512K x 36

(1) 4M x 36

None

None

19MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

20MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

None

20MB

(1) 4M x 36

(1) 1M x 36

None

None

20MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

20MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

None

20MB

(1) 1M x 36

(1) 4M x 36

None

None

22MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

None

24MB

(1) 4M x 36

(1) 2M x 36

None

None

24MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

None

24MB

(1) 2M x 36

(1) 4M x 36

None

None

25MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

26MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

28MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

28MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

32MB

(1) 8M x 36

None

None

None

32MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

None

None

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

33MB

(1) 8M x 36

(1) 256K x 36

None

None

33MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

None

33MB

(1) 256K x 36

(1) 8M x 36

None

None

34MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

None

34MB

(1) 8M x 36

(1) 512K x 36

None

None

34MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

34MB

(1) 512K x 36

(1) 8M x 36

None

None

35MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

36MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

None

36MB

(1) 8M x 36

(1) 1M x 36

None

None

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

None

36MB

(1) 1M x 36

(1) 8M x 36

None

None

38MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

40MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

None

40MB

(1) 8M x 36

(1) 2M x 36

None

None

40MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

None

40MB

(1) 2M x 36

(1) 8M x 36

None

None

44MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

48MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

None

48MB

(1) 8M x 36

(1) 4M x 36

None

None

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

None

48MB

(1) 4M x 36

(1) 8M x 36

None

None

49MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

50MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

52MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

56MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

56MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

None

64MB

(1) 8M x 36

(1) 8M x 36

None

None

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

65MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

None

66MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

None

68MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

None

72MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

None

80MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

80MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

None

96MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

None

97MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

98MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

100MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

104MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

112MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

Note: Board also accepts x 32 SIMMs.

DRAM JUMPER CONFIGURATION

Type

JP3

Normal SIMM

Open

4K fast refresh 4M x 16 SIMM

Closed

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

64KB

(4) 8K x 8

(4) 8K x 8

(2) 8K x 8

128KB

(4) 32K x 8

None

(2) 8K x 8

256KB

(4) 32K x 8

(4) 32K x 8

(2) 32K x 8

512KB

(4) 128K x 8

None

(2) 32K x 8

1MB

(4) 128K x 8

(4) 128K x 8

(2) 128K x 8

Note: The location of banks 0 & 1, data TAG & TAG are unidentified.

CACHE JUMPER CONFIGURATION

Size

JD1

JD2

JT1

JT2

JT3

64KB

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

128KB

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

256KB

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

512KB

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1MB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CACHE TAG CONFIGURATION

Setting

JP16

TAG combined

Pins 1 & 2 closed

TAG separated

Pins 2 & 3 closed

CPU CLOCK SPEED SELECTION

Speed

JP25

JP26

JP27

16MHz

Closed

Closed

Closed

20MHz

Open

Closed

Closed

25MHz

Closed

Open

Closed

33MHz

Open

Open

Closed

40MHz

Closed

Closed

Open

50MHz

Open

Closed

Open

66MHz

Closed

Open

Open

CPU TYPE SELECTION

Type

JP5

JP6

JP7

JP11

JP41

RN1

80486SX

2 & 3

Closed

N/A

N/A

N/A

Not installed

80486DX

1 & 2

Closed

N/A

1 & 2

N/A

Installed

80486DX2

1 & 2

Closed

N/A

1 & 2

N/A

Installed

80486DX4

1 & 2

Closed

N/A

1 & 2

N/A

Installed

P24D

1 & 2

Closed

2 & 3

1 & 2

1 & 2

Installed

P24T

1 & 2

N/A

N/A

2 & 3

N/A

Installed

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP2

RN2

Non SL-enhanced

Open

Not installed

SL-enhanced

Closed

Installed

CPU TYPE SELECTION (P24D & P24T ONLY)

Type

JP1

JP4

Write back

Closed

Closed

Write through

Open

Open

CPU MULTIPLIER SELECTION

Multiplier

JP10

2x

Pins 1 & 2 closed

2.5x

Pins 2 & 3 closed

3x

Open

VL BUS WAIT STATE SELECTION

Setting

JP20

0

Pins 1 & 2 closed

1

Pins 2 & 3 closed

VL-BUS SPEED SELECTION

Setting

JP21

<= 33MHz

Pins 1 & 2 closed

>33 MHz

Pins 2 & 3 closed

Processor	80486SX/80486DX/80486DX2/80486DX4/P24D/P24T
Processor Speed	16/20/25/33/40/50(internal)/50/66(internal)/75(internal)/ 80(internal)/100(internal)MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	128MB
Maximum Video Memory	None
Cache	64/128/256/512/1024KB
BIOS	AMI
Dimensions	254mm x 218mm
I/O Options	32-bit VESA local bus slots (3)
NPU Options	None

CONNECTIONS
Purpose	Location
32-bit VESA local bus slots	SL1 - SL3

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select color	JP17	Closed
	Monitor type select monochrome	JP17	Open
	BIOS type select EPROM	JP18	Pins 1 & 2 closed
	BIOS type select flash	JP18	Pins 2 & 3 closed
»	Factory configured - do not alter	JP22	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	None	None	None
2MB	(1) 512K x 36	None	None	None
2MB	(1) 256K x 36	(1) 256K x 36	None	None
3MB	(1) 512K x 36	(1) 256K x 36	None	None
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	None
3MB	(1) 256K x 36	(1) 512K x 36	None	None
4MB	(1) 1M x 36	None	None	None
4MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	None
4MB	(1) 512K x 36	(1) 512K x 36	None	None
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 1M x 36	(1) 256K x 36	None	None
5MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	None
5MB	(1) 256K x 36	(1) 1M x 36	None	None
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	None
6MB	(1) 1M x 36	(1) 512K x 36	None	None
6MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	None
6MB	(1) 512K x 36	(1) 1M x 36	None	None
7MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
7MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
8MB	(1) 2M x 36	None	None	None
8MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	None
8MB	(1) 1M x 36	(1) 1M x 36	None	None
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
9MB	(1) 2M x 36	(1) 256K x 36	None	None
9MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	None
9MB	(1) 256K x 36	(1) 2M x 36	None	None
10MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	None
10MB	(1) 2M x 36	(1) 512K x 36	None	None
10MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
10MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	None
10MB	(1) 512K x 36	(1) 2M x 36	None	None
11MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
12MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
12MB	(1) 2M x 36	(1) 1M x 36	None	None
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	None
12MB	(1) 1M x 36	(1) 2M x 36	None	None
13MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
14MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
14MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	None	None	None
16MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	None
16MB	(1) 2M x 36	(1) 2M x 36	None	None
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
17MB	(1) 4M x 36	(1) 256K x 36	None	None
17MB	(1) 256K x 36	(1) 2M x 36	(1) 2M x 36	None
17MB	(1) 256K x 36	(1) 4M x 36	None	None
18MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	None
18MB	(1) 4M x 36	(1) 512K x 36	None	None
18MB	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36	None
18MB	(1) 512K x 36	(1) 4M x 36	None	None
19MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
20MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	None
20MB	(1) 4M x 36	(1) 1M x 36	None	None
20MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
20MB	(1) 1M x 36	(1) 2M x 36	(1) 2M x 36	None
20MB	(1) 1M x 36	(1) 4M x 36	None	None
22MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
24MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	None
24MB	(1) 4M x 36	(1) 2M x 36	None	None
24MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	None
24MB	(1) 2M x 36	(1) 4M x 36	None	None
25MB	(1) 256K x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
26MB	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
28MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
28MB	(1) 1M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 8M x 36	None	None	None
32MB	(1) 4M x 36	(1) 2M x 36	(1) 2M x 36	None
32MB	(1) 4M x 36	(1) 4M x 36	None	None
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
33MB	(1) 8M x 36	(1) 256K x 36	None	None
33MB	(1) 256K x 36	(1) 4M x 36	(1) 4M x 36	None
33MB	(1) 256K x 36	(1) 8M x 36	None	None
34MB	(1) 8M x 36	(1) 256K x 36	(1) 256K x 36	None
34MB	(1) 8M x 36	(1) 512K x 36	None	None
34MB	(1) 512K x 36	(1) 4M x 36	(1) 4M x 36	None

DRAM JUMPER CONFIGURATION
Type	JP3
Normal SIMM	Open
4K fast refresh 4M x 16 SIMM	Closed

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(2) 8K x 8
128KB	(4) 32K x 8	None	(2) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(2) 32K x 8
512KB	(4) 128K x 8	None	(2) 32K x 8
1MB	(4) 128K x 8	(4) 128K x 8	(2) 128K x 8
Note: The location of banks 0 & 1, data TAG & TAG are unidentified.

CACHE JUMPER CONFIGURATION
Size	JD1	JD2	JT1	JT2	JT3
64KB	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
128KB	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
256KB	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
512KB	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3
1MB	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CACHE TAG CONFIGURATION
Setting	JP16
TAG combined	Pins 1 & 2 closed
TAG separated	Pins 2 & 3 closed

CPU CLOCK SPEED SELECTION
Speed	JP25	JP26	JP27
16MHz	Closed	Closed	Closed
20MHz	Open	Closed	Closed
25MHz	Closed	Open	Closed
33MHz	Open	Open	Closed
40MHz	Closed	Closed	Open
50MHz	Open	Closed	Open
66MHz	Closed	Open	Open

CPU TYPE SELECTION
Type	JP5	JP6	JP7	JP11	JP41	RN1
80486SX	2 & 3	Closed	N/A	N/A	N/A	Not installed
80486DX	1 & 2	Closed	N/A	1 & 2	N/A	Installed
80486DX2	1 & 2	Closed	N/A	1 & 2	N/A	Installed
80486DX4	1 & 2	Closed	N/A	1 & 2	N/A	Installed
P24D	1 & 2	Closed	2 & 3	1 & 2	1 & 2	Installed
P24T	1 & 2	N/A	N/A	2 & 3	N/A	Installed
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP2	RN2
Non SL-enhanced	Open	Not installed
SL-enhanced	Closed	Installed

CPU TYPE SELECTION (P24D & P24T ONLY)
Type	JP1	JP4
Write back	Closed	Closed
Write through	Open	Open

CPU MULTIPLIER SELECTION
Multiplier	JP10
2x	Pins 1 & 2 closed
2.5x	Pins 2 & 3 closed
3x	Open

VL BUS WAIT STATE SELECTION
Setting	JP20
0	Pins 1 & 2 closed
1	Pins 2 & 3 closed

VL-BUS SPEED SELECTION
Setting	JP21
<= 33MHz	Pins 1 & 2 closed
>33 MHz	Pins 2 & 3 closed
