SUPER MICRO
P6SOF
|
Processor |
Pentium Pro |
|
Processor Speed |
133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (on Pentium Pro CPU) |
|
BIOS |
AMI |
|
Dimensions |
351mm x 305mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interface, parallel port, PS/2 mouse interface, serial ports (2), VRM connector |
|
NPU Options |
None |
|

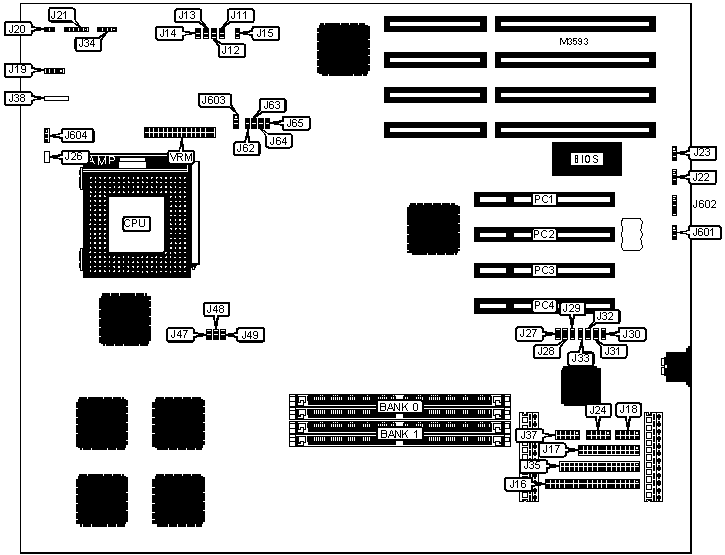

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IDE interface |
J16 |
Speaker |
J34 |
|
Parallel port |
J17 |
Floppy drive interface |
J35 |
|
Serial port 1 |
J18 |
PS/2 mouse interface |
J37 |
|
IDE interface LED |
J19 |
External battery |
J602 |
|
Reset switch |
J20 |
Chassis fan power |
J603 |
|
Power LED & keylock |
J21 |
Chassis fan power |
J604 |
|
Serial port 2 |
J24 |
32-bit PCI slots |
PC1 - PC4 |
|
PW LED |
J26 |
VRM connector |
VRM |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J11 |
Open |
|
» |
Factory configured - do not alter |
J12 |
Open |
|
» |
Factory configured - do not alter |
J13 |
Open |
|
» |
Factory configured - do not alter |
J14 |
Open |
|
» |
Factory configured - do not alter |
J15 |
Open |
|
» |
Factory configured - do not alter |
J22 |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J23 |
Pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
J27 |
Open |
|
» |
Factory configured - do not alter |
J28 |
Closed |
|
» |
Factory configured - do not alter |
J29 |
Closed |
|
» |
Factory configured - do not alter |
J30 |
Open |
|
» |
Factory configured - do not alter |
J31 |
Open |
|
» |
Factory configured - do not alter |
J32 |
Open |
|
» |
Factory configured - do not alter |
J33 |
Open |
|
» |
Factory configured - do not alter |
J38 |
Unidentified |
|
» |
CMOS memory normal operation |
J601 |
Pins 1 & 2 closed |
|
CMOS memory clear |
J601 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | |||||||
|
Speed |
J47 |
J48 |
J49 |
J62 |
J63 |
J64 |
J65 |
|
133MHz |
Open |
Closed |
Open |
Closed |
Closed |
Closed |
Closed |
|
150MHz |
Closed |
Open |
Closed |
Closed |
Closed |
Closed |
Open |
|
166MHz |
Open |
Closed |
Open |
Closed |
Closed |
Closed |
Open |
|
180MHz |
Closed |
Open |
Closed |
Closed |
Open |
Closed |
Closed |
|
200MHz |
Open |
Closed |
Open |
Closed |
Open |
Closed |
Closed |
