SIEMENS NIXDORF INFORMATIONSSYSTEME AG

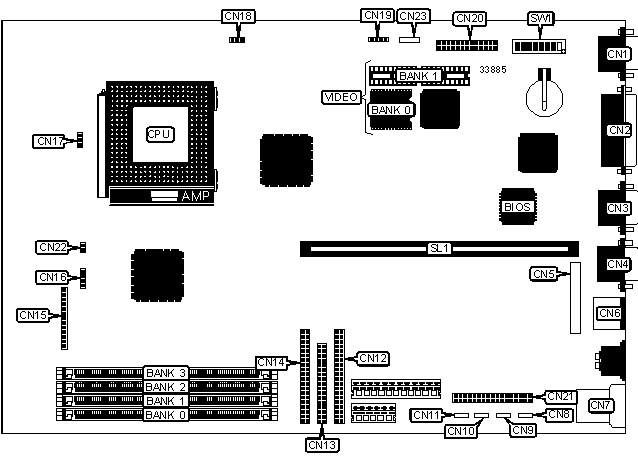

SYSTEM BOARD D983
|
Processor |
Pentium |
|
Processor Speed |
150/166/180/200MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Onboard Memory |
512MB (EDO supported) |
|
Maximum Video Memory |
2MB |
|
Cache |
256/512KB |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, USB connectors (2), power on switch, chip card reader, voice modem/connector, CD line in connector, auxiliary in connector, soft off power supply connector, Game/MIDI/audio connector, fax/modem remote on connector |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
Floppy drive interface |
CN13 |
|
Parallel port |
CN2 |
IDE interface 2 |
CN14 |
|
Serial port 2 |
CN3 |
Front panel connector |
CN15 |
|
Serial port 1 |
CN4 |
Speaker |
CN16 |
|
Chip card reader |
CN5 |
Chassis fan power |
CN17 |
|
PS/2 mouse port |
CN6 |
Chassis fan power |
CN18 |
|
USB connectors |
CN7 |
SCSI LED |
CN19 |
|
Voice modem/connector |
CN8 |
VGA feature connector |
CN20 |
|
CD line in connector |
CN9 |
Game/MIDI/audio connector |
CN21 |
|
Auxiliary in connector |
CN10 |
Power on switch |
CN22 |
|
Soft off power supply connector |
CN11 |
Fax/modem remote on connector |
CN23 |
|
IDE interface 1 |
CN12 |
Riser slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Flash BIOS write protect disabled |
SW1/1 |
Off |
|
Flash BIOS write protect enabled |
SW1/1 |
On | |
|
» |
Factory configured - do not alter |
SW1/2 |
Off |
|
» |
Flash BIOS normal operation |
SW1/3 |
Off |
|
Flash BIOS recovery mode |
SW1/3 |
On | |
|
» |
Floppy drive write protect disabled |
SW1/4 |
Off |
|
Floppy drive write protect enabled |
SW1/4 |
On | |
|
DIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
16MB |
(1) 2M x 64 |
None |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
|
64MB |
(1) 8M x 64 |
None |
None |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
|
128MB |
(1) 16M x 64 |
None |
None |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
Note: Board accepts EDO memory. | ||||
|
CACHE CONFIGURATION |
|
Note: The location of the 256KB/512KB cache is unidentified. |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
1MB |
None |
|
2MB |
1MB |
(2) 256K x 16 |
|
Note: Bank 0 is factory installed and is not configurable. | ||
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
150MHz |
60MHz |
2.5x |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
Off |
On |
Off |
On |
|
200MHz |
66MHz |
3x |
On |
On |
Off |
On |
