Processor	Pentium
Processor Speed	75/90/100/120/133/150/166/200MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	512KB
BIOS	AMI
Dimensions	Unidentified
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), USB connectors (2), combo I/O connector
NPU Options	None

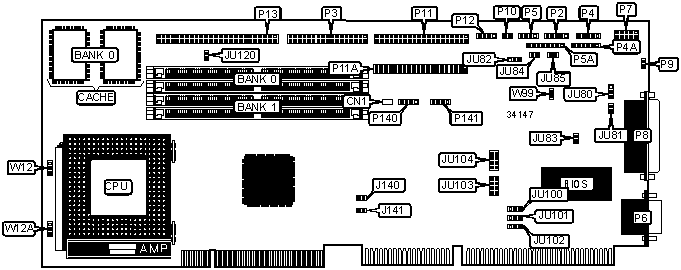

CONNECTIONS
Purpose	Location	Purpose	Location
Temperature monitor	CN1	Parallel port	P8
Power LED & keylock	P2	Chassis fan power	P9
Floppy drive interface	P3	Reset switch	P10
Keyboard connector	P4	IDE interface 1	P11
PS/2 mouse interface	P4A	IDE interface 2	P11A
Speaker	P5	IDE interface LED	P12
Combo I/O connector	P5A	SCSI interface	P13
Serial port 1	P6	USB connector 1	P140
Serial port 2	P7	USB connector 2	P141

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Monitor type select color	JU80	Pins 1 & 2 closed
	Monitor type select monochrome	JU80	Pins 2 & 3 closed
»	Password normal operation	JU81	Open
	Password clear	JU81	Closed
»	Watchdog timer reset	JU82	Pins 1 & 2 closed
	Watchdog timer normal operation	JU82	Pins 2 & 3 closed
»	CMOS memory normal operation	JU83	Open
	CMOS memory clear	JU83	Closed
»	Speaker data to pin 8 of P5A enabled	JU84	Closed
	Speaker data to pin 8 of P5A disabled	JU84	Open
»	Reset data to pin 1 of P5A enabled	JU85	Closed
	Reset data to pin 1 of P5A disabled	JU85	Open
»	Serial port 1 IRQ select IRQ4	JU100	Pins 2 & 3 closed
	Serial port 1 IRQ select IRQ3	JU100	Pins 1 & 2 closed
»	Serial port 2 IRQ select IRQ3	JU101	Pins 1 & 2 closed
	Serial port 2 IRQ select IRQ4	JU101	Pins 2 & 3 closed
»	Parallel port IRQ select IRQ7	JU102	Pins 2 & 3 closed
	Parallel port IRQ select IRQ5	JU102	Pins 1 & 2 closed
»	SCSI term power enabled	JU120	Open
	SCSI term power disabled	JU120	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Size	Bank 0
512KB	(2) 64K x 32

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	J140	J141	W12	W12A	W99
75MHz	50MHz	1.5x	Closed	Closed	2 & 3	2 & 3	Open
90MHz	60MHz	1.5x	Closed	Open	2 & 3	2 & 3	Closed
100MHz	66MHz	1.5x	Open	Closed	2 & 3	2 & 3	Closed
120MHz	60MHz	2x	Closed	Open	1 & 2	2 & 3	Closed
133MHz	66MHz	2x	Open	Closed	1 & 2	2 & 3	Closed
150MHz	60MHz	2.5x	Closed	Open	1 & 2	1 & 2	Closed
166MHz	66MHz	2.5x	Open	Closed	1 & 2	1 & 2	Closed
200MHz	66MHz	3x	Open	Closed	2 & 3	1 & 2	Closed
Note: Pins designated should be in the closed position.

DMA CHANNEL SELECTION
Channel	JU103	JU104
3	Pins 7 & 8 closed	Pins 7 & 8 closed
5	Pins 5 & 6 closed	Pins 5 & 6 closed
6	Pins 3 & 4 closed	Pins 3 & 4 closed
7	Pins 1 & 2 closed	Pins 1 & 2 closed
