SIEMENS NIXDORF INFORMATIONSSYSTEME AG
SYSTEM BOARD D969
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
2MB |
|
Cache |
128/256/512KB |
|
BIOS |
Phoenix |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (4), CD-ROM audio in connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, cache slot, IR connector, USB connector, chip card reader, voice modem connector, AUX-in connector, fax/modem remote on, wavetable connector, game/MIDI/audio connector, I2C connector |
|
NPU Options |
None |
|

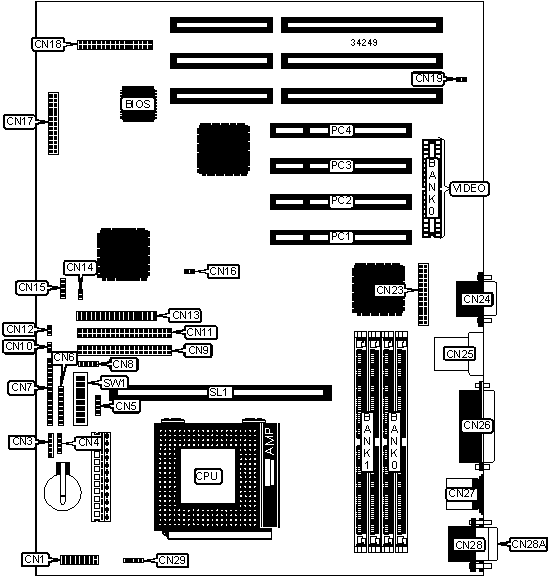

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Chip card reader |
CN1 |
Power on switch |
CN16 |
|
IR connector |
CN3 |
Wavetable connector |
CN17 |
|
Speaker |
CN4 |
Game/MIDI/audio connector |
CN18 |
|
Soft off power supply |
CN5 |
I 2 C connector |
CN19 |
|
Front panel connector |
CN6 |
VGA feature connector |
CN23 |
|
Front panel connector |
CN7 |
VGA port |
CN24 |
|
SCSI interface LED |
CN8 |
USB connector |
CN25 |
|
IDE interface 2 |
CN9 |
Parallel port |
CN26 |
|
Voice modem connector |
CN10 |
PS/2 mouse port |
CN27 |
|
IDE interface 1 |
CN11 |
Serial port |
CN28 |
|
AUX in connector |
CN12 |
Serial port |
CN28A |
|
Floppy drive interface |
CN13 |
Chassis fan power |
CN29 |
|
Fax/modem remote on connector |
CN14 |
32-bit PCI slots |
PC1 – PC4 |
|
CD-ROM audio in connector |
CN15 |
Cache slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Flash BIOS normal operation |
SW1/5 |
Off |
|
Flash BIOS recovery mode |
SW1/5 |
On | |
|
» |
Factory configured - do not alter |
SW1/6 |
Off |
|
» |
Flash BIOS write protect disabled |
SW1/7 |
Off |
|
Flash BIOS write protect enabled |
SW1/7 |
On | |
|
» |
Floppy drive write protect disabled |
SW1/8 |
Off |
|
Floppy drive write protect enabled |
SW1/8 |
On | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
128KB |
128KB module installed |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
1MB |
None |
|
2MB |
1MB |
(2) 256K x 16 |
|
Note: Bank 0 is factory installed and is not configurable. | ||
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
75MHz |
50MHz |
1.5x |
On |
On |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
On |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
On |
Off |
|
133MHz |
66MHz |
2x |
Off |
On |
On |
Off |
|
150MHz |
60MHz |
2.5x |
On |
Off |
On |
On |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
On |
