TECHNOLAND, INC.
PEAK 5020
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
Unidentified |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), USB connector |
|
NPU Options |
None |
|

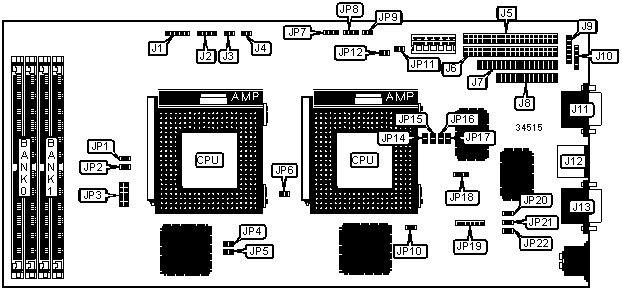

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J1 |
USB connector |
J9 |
|
Speaker |
J2 |
Auxiliary keyboard connector |
J10 |
|
Reset switch |
J3 |
Serial port 2 |
J11 |
|
IDE interface LED |
J4 |
PS/2 mouse port |
J12 |
|
IDE interface 1 |
J5 |
Serial port 1 |
J13 |
|
IDE interface 2 |
J6 |
+5v power |
JP6 |
|
Floppy drive interface |
J7 |
+5v power |
JP11 |
|
Parallel port |
J8 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP10 |
Open |
|
CMOS memory clear |
JP10 |
Closed | |
|
» |
SMI source select APIC |
JP18 |
Pins 1 & 2 closed |
|
SMI source select PIIX3 |
JP18 |
Pins 2 & 3 closed | |
|
BIOS type select EPROM |
JP19 |
Pins 2 & 3, 4 & 5 closed | |
|
BIOS type select flash BIOS |
JP19 |
Pins 1 & 2, 5 & 6 closed | |
|
» |
On board I/O enabled |
JP20 |
Open |
|
On board I/O disabled |
JP20 |
Closed | |
|
» |
Watchdog timer port select Port F2 |
JP21 |
Closed |
|
Watchdog timer port select Port F6 |
JP21 |
Open | |
|
» |
Monitor type select color |
JP22 |
Closed |
|
Monitor type select monochrome |
JP22 |
Open | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Banks are interchangeable. | ||
|
SIMM REFRESH CONFIGURATION | |
|
Refresh rate |
JP9 |
|
50MHz |
Closed |
|
60MHz |
Closed |
|
66MHz |
Open |
|
CACHE CONFIGURATION |
|
Note: The location & chip sizes are unidentified. |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP2 |
JP3/pins 3 & 4 |
JP3/pins 5 & 6 |
|
None |
N/A |
Open |
Open |
|
256KB |
Open |
Open |
Closed |
|
512KB |
Closed |
Closed |
Open |
|
CACHE SIZE CONFIGURATION | ||
|
Size |
JP3/pins 1 & 2 | |
| » |
Extended |
Open |
|
Normal |
Closed | |
|
CACHE TYPE CONFIGURATION | |||
|
Type |
JP3/pins 7 & 8 |
JP3/pins 9 & 10 | |
| » |
Pipeline burst |
Open |
Open |
|
2 banks PBSRAM |
Closed |
Closed | |
|
CPU SPEED SELECTION | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 |
JP7 |
JP8 |
JP12 |
|
75MHz |
50MHz |
1.5x |
Closed |
Closed |
1 & 2 |
1 & 2 |
Open |
|
90MHz |
60MHz |
1.5x |
Open |
Closed |
1 & 2 |
1 & 2 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Closed |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
120MHz |
60MHz |
2x |
Open |
Closed |
1 & 2 |
2 & 3 |
1 & 2 |
|
133MHz |
66MHz |
2x |
Closed |
Open |
1 & 2 |
2 & 3 |
1 & 2 |
|
150MHz |
60MHz |
2.5x |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
180MHz |
60MHz |
3x |
Open |
Closed |
2 & 3 |
1 & 2 |
1 & 2 |
|
200MHz |
66MHz |
3x |
Closed |
Open |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU TYPE SELECTION | |
|
Type |
JP1 |
|
Cyrix |
Closed |
|
Intel |
Open |
|
CPU VOLTAGE SELECTION (SINGLE) | ||||
|
Voltage |
JP14 |
JP15 |
JP16 |
JP17 |
|
2.8v |
Closed |
Open |
Open |
Open |
|
3.3v |
Closed |
Closed |
Open |
Closed |
|
CPU VOLTAGE SELECTION (DUAL) | |||||
|
Voltage |
V core |
JP14 |
JP15 |
JP16 |
JP17 |
|
2.8v |
2.9v |
Closed |
Open |
Open |
Closed |
|
2.8v |
3.3v |
Closed |
Closed |
Open |
Closed |
|
3.3v |
2.8v |
Closed |
Open |
Open |
Open |
|
3.3v |
2.9v |
Closed |
Open |
Open |
Closed |
