TECHNOLAND, INC.
PEAK 500I, 500P
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
SIS |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
185mm x 122mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), cache slot |
|
NPU Options |
None |
|

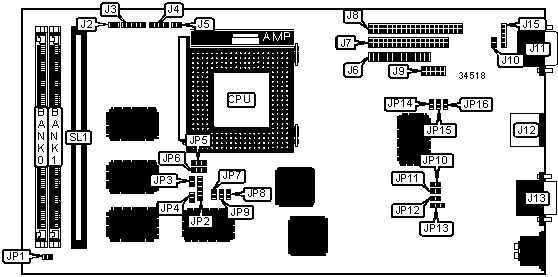

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J2 |
Serial port 2 |
J9 |
|
Power LED & keylock |
J3 |
IDE interface LED |
J10 |
|
Speaker |
J4 |
VGA port |
J11 |
|
Reset switch |
J5 |
PS/2 mouse port |
J12 |
|
Parallel port |
J6 |
Serial port 1 |
J13 |
|
Floppy drive interface |
J7 |
Auxiliary keyboard connector |
J15 |
|
IDE interface |
J8 |
Cache slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
BIOS type select EPROM |
JP2 |
Pins 2 & 3 closed |
|
BIOS type select flash BIOS |
JP2 |
Pins 1 & 2, 4 & 5 closed | |
|
» |
Cache type select write back |
JP6 |
Pins 1 & 2 closed |
|
Cache type select write through |
JP6 |
Pins 2 & 3 closed | |
|
» |
Watchdog timer port select Port F2 |
JP10 |
Closed |
|
Watchdog timer port select Port F6 |
JP10 |
Open | |
|
» |
Monitor type select color |
JP11 |
Closed |
|
Monitor type select monochrome |
JP11 |
Open | |
|
» |
CMOS memory normal operation |
JP12 |
Open |
|
CMOS memory clear |
JP12 |
Closed | |
|
» |
IDE interface enabled |
JP13 |
Closed |
|
IDE interface disabled |
JP13 |
Open | |
|
» |
On board I/O enabled |
JP16 |
Open |
|
On board I/O disabled |
JP16 |
Closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
None |
(1) 1M x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
|
8MB |
None |
(1) 2M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
|
16MB |
None |
(1) 4M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
|
32MB |
None |
(1) 8M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
|
SIMM JUMPER CONFIGURATION | ||
|
Type |
JP1 | |
| » |
FP |
Closed |
|
EDO |
Open | |
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CPU SPEED SELECTION | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP7 |
JP8 |
JP9 |
JP14 |
JP15 |
|
75MHz |
50MHz |
1.5x |
Open |
Closed |
Open |
Open |
Open |
|
90MHz |
60MHz |
1.5x |
Closed |
Closed |
Open |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
Closed |
Closed |
Closed |
Open |
Open |
|
120MHz |
60MHz |
2x |
Closed |
Closed |
Open |
Open |
Closed |
|
133MHz |
66MHz |
2x |
Closed |
Closed |
Closed |
Open |
Closed |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
Open |
Closed |
Closed |
|
166MHz |
66MHz |
2.5x |
Closed |
Closed |
Closed |
Closed |
Closed |
|
ON BOARD VIDEO SELECTION | ||||
|
Setting |
JP3 |
JP4 |
JP5 | |
| » |
Enabled |
Closed |
Closed |
Pins 1 & 2 closed |
|
Disabled |
Open |
Open |
Pins 2 & 3 closed | |
