SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-569 (VER. 2.0)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ AM K5/AM K6/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200/233/266MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO & SDRAM supported) |
|
Maximum Video Memory |
None |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
280mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector |
|
NPU Options |
None |
|

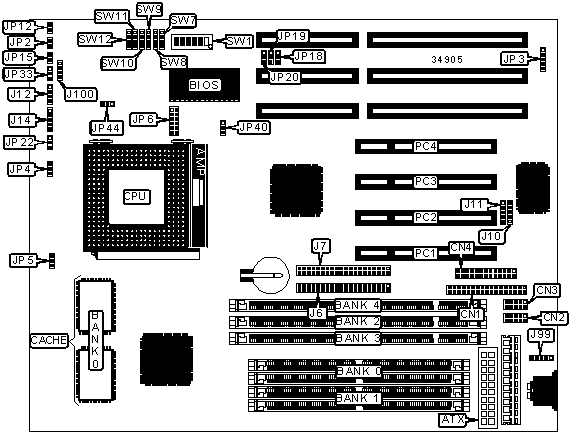

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
PS/2 mouse interface |
J99 |
|
Floppy drive interface |
CN1 |
Soft off power supply |
JP2 |
|
Serial port 1 |
CN2 |
IR connector |
JP3 |
|
Serial port 2 |
CN3 |
Chassis fan power |
JP4 |
|
Parallel port |
CN4 |
Chassis fan power |
JP5 |
|
IDE interface 1 |
J6 |
EISCA cooler connector |
JP6 |
|
IDE interface 2 |
J7 |
Reset switch |
JP12 |
|
USB connector |
J10 |
Green PC connector |
JP15 |
|
USB connector |
J11 |
IDE interface LED |
JP22 |
|
Speaker |
J12 |
Green PC LED |
JP33 |
|
Power LED & keylock |
J14 |
32-bit PCI slots |
PC1 – PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J100 |
Unidentified |
|
» |
Factory configured - do not alter |
JP18 |
Unidentified |
|
Flash BIOS voltage select 12v |
JP19 |
Pins 1 & 2 closed | |
|
Flash BIOS voltage select 5v |
JP19 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP20 |
Unidentified |
|
» |
CMOS memory normal operation |
JP40 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP40 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP44 |
Unidentified |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
SIMM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. | ||
|
DIMM CONFIGURATION | |||
|
Size |
Bank 2 |
Bank 3 |
Bank 4 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
DIMM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
Note: Board accepts SDRAM memory. | |||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(2) 64K x 32 |
|
CPU SPEED SELECTION (CX 6X86) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
120MHz |
50MHz |
2x |
On |
On |
On |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
On |
On |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (IBM 6X86) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
120MHz |
50MHz |
2x |
On |
On |
On |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
On |
On |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX 6X86L) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (IBM 6X86L) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX 6X86MX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
60MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
233MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (IBM 6X86MX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
60MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
233MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
266MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K5) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
75MHz |
50MHz |
1.5x |
On |
On |
On |
Off |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
133MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K6) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
Off |
Off |
On |
Off |
On |
|
CPU SPEED SELECTION (INTEL) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
75MHz |
50MHz |
1.5x |
On |
On |
On |
Off |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
Off |
Off |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
Off |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (INTEL MMX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION (SINGLE) | ||||||
|
Voltage |
SW7 |
SW8 |
SW9 |
SW10 |
SW11 |
SW12 |
|
2.0v |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.1v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.2v |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.3v |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.4v |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.5v |
1 & 2, 3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.6v |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.7v |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
2.8v |
3 & 4 |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
2.9v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.0v |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.1v |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.2v |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.4v |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.52v |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU VOLTAGE SELECTION (DUAL) | ||||
|
Voltage |
V core |
SW7 |
SW8 |
SW9 |
|
Auto detect |
Auto detect |
2 & 3 |
2 & 3 |
2 & 3 |
|
3.3v |
3.3v |
3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
|
3.3v |
2.1v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
3.2v |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
3.3v |
2.9v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
2.8v |
3 & 4 |
3 & 4 |
3 & 4 |
|
3.52v |
3.52v |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU VOLTAGE SELECTION (DUAL, CON’T) | ||||
|
Voltage |
V core |
SW10 |
SW11 |
SW12 |
|
Auto detect |
Auto detect |
2 & 3 |
2 & 3 |
2 & 3 |
|
3.3v |
3.3v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
2.1v |
3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
3.2v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
2.9v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.3v |
2.8v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
3.52v |
3.52v |
1 & 2, 3 & 4 |
3 & 4 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||
