Device Type	Mainboard
Processor	Pentium II
Processor Speed	233/266/300MHz
Chip Set	Intel 440LX
Maximum Onboard Memory	384MB (SDRAM supported)
Cache	512KB
BIOS	Intel/Phoenix
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, audio line in (2), audio line out, microphone in

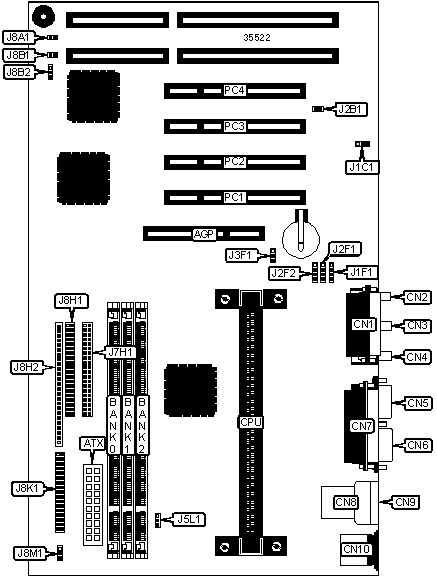

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	Chassis fan power	J5L1
Game/MIDI port	CN1	IDE interface 2	J7H1
Microphone in	CN2	Wake on ring connector	J8A1
Line in - external	CN3	SCSI interface LED	J8B1
Line out	CN4	IDE interface 1	J8H1
Serial port 2	CN5	Soft off power supply	J8H2/pins 1 & 2
Serial port 1	CN6	Green PC connector	J8H2/pins 3 & 4
Parallel port	CN7	IR connector	J8H2/pins 6 - 11
USB connector 2	CN8	IDE interface LED	J8H2/pins 13 - 16
USB connector 1	CN9	Power LED	J8H2/pins 18 - 20
PS/2 mouse port	CN10	Reset	J8H2/pins 22 & 23
Wake on LAN connector	J1C1	Speaker	J8H2/pins 24 - 27
Audio in - CD-ROM	J1F1	Floppy drive interface	J8K1
Chassis security	J2B1	Chassis fan power	J8M1
Telephony connector	J2F1	32-bit PCI slots	PC1 – PC4
Line in - internal	J2F2	AGP slot	AGP
Chassis fan power	J3F1

USER CONFIGURABLE SETTINGS
Function		Label	Position
	BIOS normal operation	J8B2	Pins 1 & 2 closed
	BIOS configuration mode	J8B2	Pins 2 & 3 closed
	BIOS recovery mode	J8B2	Open

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(1) 1M x 64	None	None
16MB	(1) 2M x 64	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None
24MB	(1) 2M x 64	(1) 1M x 64	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None
40MB	(1) 4M x 64	(1) 1M x 64	None
48MB	(1) 4M x 64	(1) 2M x 64	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None
72MB	(1) 8M x 64	(1) 1M x 64	None
80MB	(1) 8M x 64	(1) 2M x 64	None
96MB	(1) 8M x 64	(1) 4M x 64	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
128MB	(1) 8M x 64	(1) 8M x 64	None
128MB	(1) 16M x 64	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium II CPU.
