TMC RESEARCH CORPORATION
CI5TTV (VER. 1.1)
|
Device Type |
Single board computer |
|
Processor |
CX 6X86/CX 6X86L/CX 686MX/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/200/233MHz |
|
Chip Set |
Intel 430TX |
|
Video Chip Set |
Chips and Technology |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
1MB |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
340mm x 124mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), green PC connector, parallel port, PS/2 mouse interface, serial ports (2), VGA port, IR connector, USB connectors (2), PC/104 connectors (2) |
|

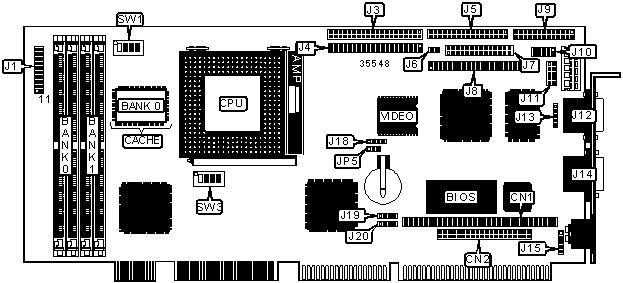

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PC/104 connector |
CN1 |
LCD panel connector |
J8 |
|
PC/104 connector |
CN2 |
Parallel port |
J9 |
|
Speaker |
J1/pins 1 – 4 |
Serial port 2 |
J10 |
|
Green PC connector |
J1/pins 6 & 16 |
PS/2 mouse interface |
J11 |
|
Turbo LED |
J1/pins 8 & 18 |
Serial port 1 |
J12 |
|
Reset switch |
J1/pins 9 & 19 |
IR connector |
J13 |
|
IDE interface LED |
J1/pins 10 & 20 |
VGA port |
J14 |
|
Power LED & keylock |
J1/pins 11 - 15 |
Auxiliary keyboard connecctor |
J15 |
|
IDE interface 1 |
J3 |
External battery |
J18 |
|
IDE interface 2 |
J4 |
USB connector |
J19 |
|
Floppy drive interface |
J5 |
USB connector |
J20 |
|
CPU fan power |
J6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP5 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP5 |
Pins 2 & 3 closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
SIMM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(1) 64K x 64 |
|
VIDEO MEMORY CONFIGURATION |
|
1Mb of video memory is factory installed and is not configurable. |
|
CPU SPEED SELECTION (CX 6X86) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
150MHz |
60MHz |
2x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86L) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
150MHz |
60MHz |
2x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86MX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
166MHz |
60MHz |
2.5x |
On |
On |
On |
On |
|
200MHz |
66MHz |
2.5x |
Off |
Off |
On |
On |
|
233MHz |
66MHz |
3x |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (AM K5) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
133MHz |
66MHz |
1.5x |
Off |
Off |
On |
Off |
|
166MHz |
66MHz |
1.75x |
Off |
Off |
On |
On |
|
CPU SPEED SELECTION (AM K6) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
166MHz |
66MHz |
1.75x |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
90MHz |
60MHz |
1.5x |
On |
On |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
On |
On |
Off |
|
133MHz |
66MHz |
2x |
Off |
Off |
On |
Off |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
On |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
On |
|
CPU SPEED SELECTION (INTEL MMX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
166MHz |
66MHz |
2.5x |
Off |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION | ||||
|
Voltage |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
3.5v |
On |
On |
On |
On |
|
CPU VOLTAGE SELECTION | |||||
|
Voltage |
V core |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
3.3v |
2.0v |
Off |
Off |
Off |
Off |
|
3.3v |
2.1v |
On |
Off |
Off |
Off |
|
3.3v |
2.2v |
Off |
On |
Off |
Off |
|
3.3v |
2.3v |
On |
On |
Off |
Off |
|
3.3v |
2.4v |
Off |
Off |
On |
Off |
|
3.3v |
2.5v |
On |
Off |
On |
Off |
|
3.3v |
2.6v |
Off |
On |
On |
Off |
|
3.3v |
2.7v |
On |
On |
On |
Off |
|
3.3v |
2.8v |
Off |
Off |
Off |
On |
|
3.3v |
2.9v |
On |
Off |
Off |
On |
|
3.3v |
3.0v |
Off |
On |
Off |
On |
|
3.3v |
3.2v |
Off |
Off |
On |
On |
|
3.3v |
3.5v |
On |
On |
On |
On |
|
SERIAL PORT 2 SELECTION | |
|
Setting |
J7 |
|
RS-232 |
Pins 1 & 3, 2 & 4, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16, 17 & 18 closed |
|
RS-422 |
Pins 3 & 5, 4 & 6, 19 & 20, 27 & 28 closed |
|
RS-485 |
Pins 3 & 5, 4 & 6, 19 & 20, 217 & 22, 23 & 24, 25 & 26 closed |
