SUPERPOWER COMPUTER CO., LTD.

SP-V586B

Device Type

Mainboard

Processor

CX 6X86/CX 6X86L/CX 686MX/AM K5/AM K6/Pentium/Pentium MMX

Processor Speed

75/90/100/120/133/150/166/200/233/266/300MHz

Chip Set

VIA VP3

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Cache

512KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, AGP slot, wake on modem connector

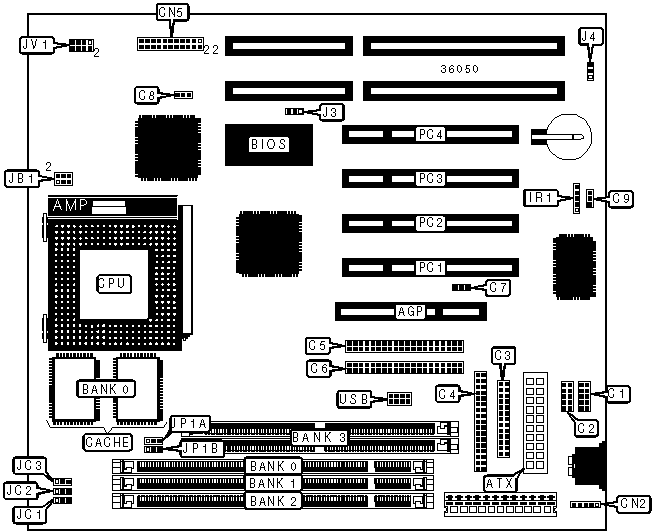

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

Power LED & keylock

CN5/pins 1 - 5

ATX power connector

ATX

IDE interface LED

CN5/pins 6 & 17

Serial port 1

C1

Green PC connector

CN5/pins 7 & 16

Serial port 2

C2

Reset switch

CN5/pins 8 & 15

Parallel port

C3

Turbo LED

CN5/pins 9 & 14

Floppy drive interface

C4

Green PC LED

CN5/pins 10 & 13

IDE interface 1

C5

Soft off power supply

CN5/pins 11 & 12

IDE interface 2

C6

Speaker

CN5/pins 19 - 22

AGP fan power

C7

IR connector

IR1

CPU fan power

C8

32-bit PCI slots

PC1 - PC4

Wake on LAN connector

C9

USB connector

USB

PS/2 mouse interface

CN2





USER CONFIGURABLE SETTINGS

Function

Label

Position



Flash BIOS voltage select 12v

J3

Pins 1 & 2 closed



Flash BIOS voltage select 5v

J3

Pins 2 & 3 closed

»

CMOS memory normal operation

J4

Pins 1 & 2 closed



CMOS memory clear

J4

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36

64MB

(2) 8M x 36

128MB

(2) 16M x 36

256MB

(2) 32M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

None

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

DIMM CONFIGURATION

Size

Bank 1

Bank 2

Bank 3

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

56MB

(1) 4M x 64

(1) 2M x 64

(1) 1M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

None

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

None

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

88MB

(1) 8M x 64

(1) 2M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

104MB

(1) 8M x 64

(1) 4M x 64

(1) 1M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

None

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

152MB

(1) 16M x 64

(1) 2M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

176MB

(1) 16M x 64

(1) 4M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

200MB

(1) 16M x 64

(1) 8M x 64

(1) 1M x 64

208MB

(1) 16M x 64

(1) 8M x 64

(1) 2M x 64

224MB

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

Note: Board accepts SDRAM memory.

DIMM VOLTAGE CONFIGURATION

Voltage

JP1A

JP1B

3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed

5v

Pins 1 & 2 closed

Pins 1 & 2 closed

CACHE CONFIGURATION

Size

Bank 0

512KB

(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

150MHz

60MHz

2x

Closed

Open

Open

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2x

Closed

Open

Open

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

150MHz

60MHz

2x

Closed

Open

Open

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2x

Closed

Open

Open

1 & 2

1 & 2

1 & 2

200MHz

75MHz

2x

Closed

Open

Open

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

166MHz

66MHz

2x

Closed

Open

Open

1 & 2

1 & 2

1 & 2

200MHz

66MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

1 & 2

200MHz

75MHz

2x

Closed

Open

Open

1 & 2

2 & 3

1 & 2

233MHz

75MHz

2.5x

Closed

Closed

Open

1 & 2

2 & 3

1 & 2

300MHz

75MHz

3x

Open

Closed

Open

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

133MHz

66MHz

2x

Closed

Open

Open

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

166MHz

66MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

Open

Closed

Open

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

Open

Open

Open

1 & 2

1 & 2

1 & 2

266MHz

66MHz

4x

Closed

Open

Closed

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

Closed

Closed

Closed

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

75MHz

50MHz

1.5x

Open

Open

Open

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

Open

Open

Open

1 & 2

1 & 2

2 & 3

100MHz

66MHz

1.5x

Open

Open

Open

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

Closed

Open

Open

1 & 2

1 & 2

2 & 3

133MHz

66MHz

2x

Closed

Open

Open

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

Open

Closed

Open

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JB1/

pins

1 & 2

JB1/

pins

3 & 4

JB1/

pins

5 & 6

JC1

JC2

JC3

166MHz

66MHz

2.5x

Closed

Closed

Open

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

Open

Closed

Open

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

Open

Open

Open

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)

Voltage

JV1/pins 1 & 2

JV1/pins 3 & 4

JV1/pins 5 & 6

JV1/pins 7 & 8

2.0v

Open

Open

Open

Open

2.1v

Closed

Open

Open

Open

2.2v

Open

Open

Closed

Open

2.3v

Closed

Closed

Open

Open

2.4v

Open

Open

Closed

Open

2.5v

Closed

Open

Closed

Open

2.6v

Open

Closed

Closed

Open

2.7v

Closed

Closed

Closed

Open

2.8v

Open

Open

Open

Closed

2.9v

Closed

Open

Open

Closed

3.0v

Open

Closed

Closed

Open

3.1v

Closed

Closed

Open

Closed

3.2v

Open

Open

Closed

Closed

3.3v

Open

Closed

Closed

Closed

3.5v

Closed

Closed

Closed

Closed
