Processor	80386SX
Processor Speed	16MHz
Chip Set	Unidentified
Max. Onboard DRAM	5MB
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	Parallel port, serial ports (2), floppy interface, IDE interface
NPU Options	80387SX

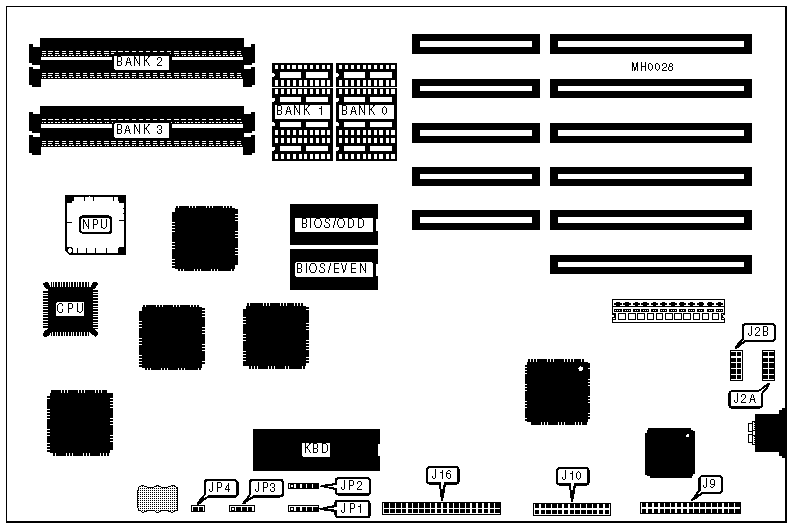

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port (COM2)	J2A	IDE interface LED	JP2
Serial port (COM1)	J2B	Speaker	JP3
Parallel port	J10	Reset switch	JP4
Power LED & keylock	JP1

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 44256	(4) 44256	NONE	NONE
1.5MB	(4) 44256	(4) 44256	(2) 256K x 9	NONE
2MB	(4) 44256	(4) 44256	(2) 256K x 9	(2) 256K x 9
3MB	(4) 44256	(4) 44256	(2) 1M x 9	NONE
5MB	(4) 44256	(4) 44256	(2) 1M x 9	(2) 1M x 9
Note:The location of Banks 0 and 1 are unidentified.
