Processor	80386DX
Processor Speed	16/20/25MHz
Chip Set	Unknown
Max. Onboard DRAM	8MB
Cache	None
BIOS	AMI
Dimensions	350mm x 304mm
I/O Options	32-bit external memory card slot
NPU Options	80287/80387

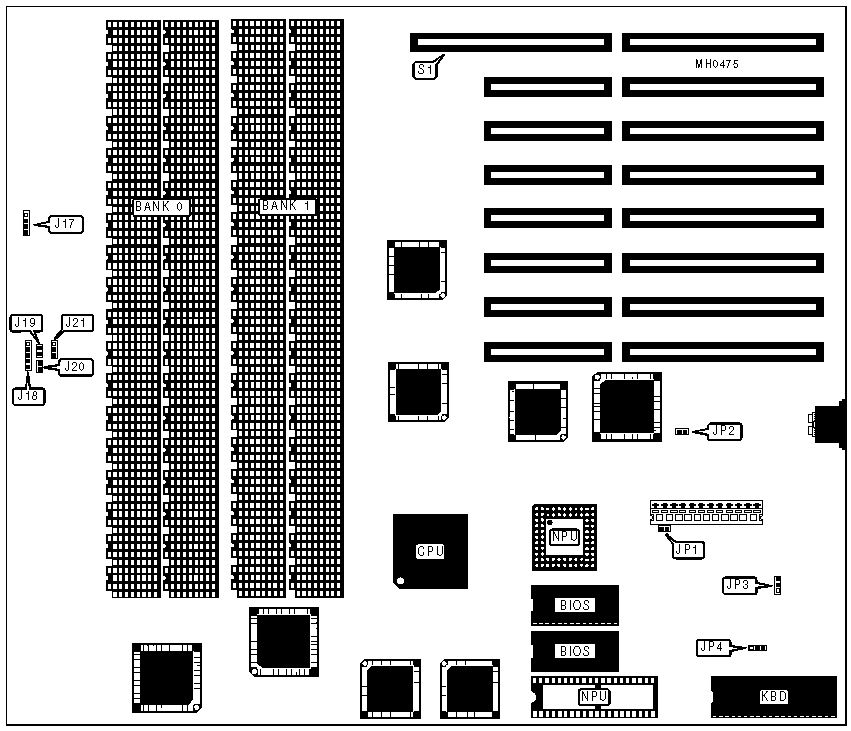

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J17	Turbo LED	J20
Power LED & keylock	J18	Turbo switch	J21
Reset switch	J19	32-bit external memory card	S1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	JP4	pins 2 & 3 closed
	Monitor type select color	JP4	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(36) 41256	(36) 41256
8MB	(36) 411000	(36) 411000

NPU CONFIGURATION
Type	JP1	JP2	JP3
NONE	Open	Open	Open
80287	Open	Open	Closed
80387	Closed	Closed	Closed
