UNIDENTIFIED
CACHE 386RSDX-33/25/40
|
Processor |
80386SX/80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

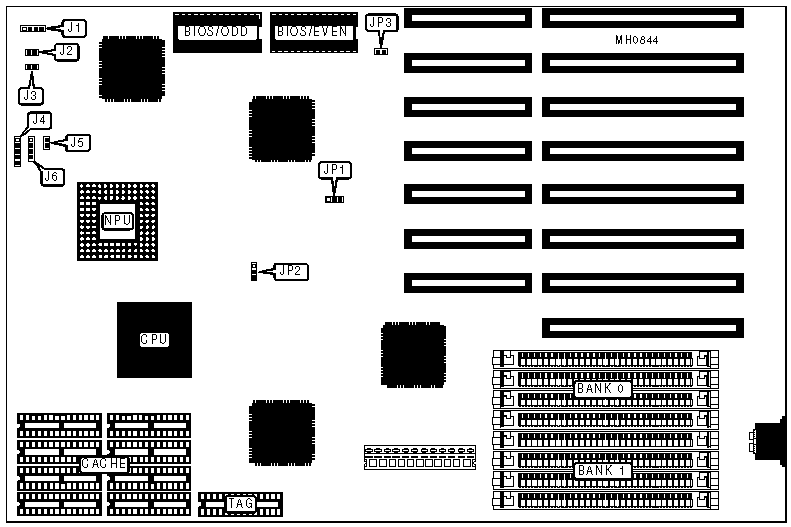

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Power LED & keylock |
J4 |
|
Turbo LED |
J2 |
Reset switch |
J5 |
|
Turbo switch |
J3 |
Speaker |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select color |
JP1 |
Closed |
|
Monitor type select monochrome |
JP1 |
Open | |
| » |
BIOS shadow enabled |
JP2 |
Closed |
|
BIOS shadow disabled |
JP2 |
Open | |
| » |
Factory configured - do not alter |
JP3 |
Closed |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
64KB |
(8) 8K x 8 |
(1) 8K x 8 |
|
256KB |
(8) 64K x 4 |
(1) 64K x 4 |
