Processor	80386DX
Processor Speed	25/33 MHz
Chip Set	SIS
Max. Onboard DRAM	16MB
SRAM Cache	64/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387/3167

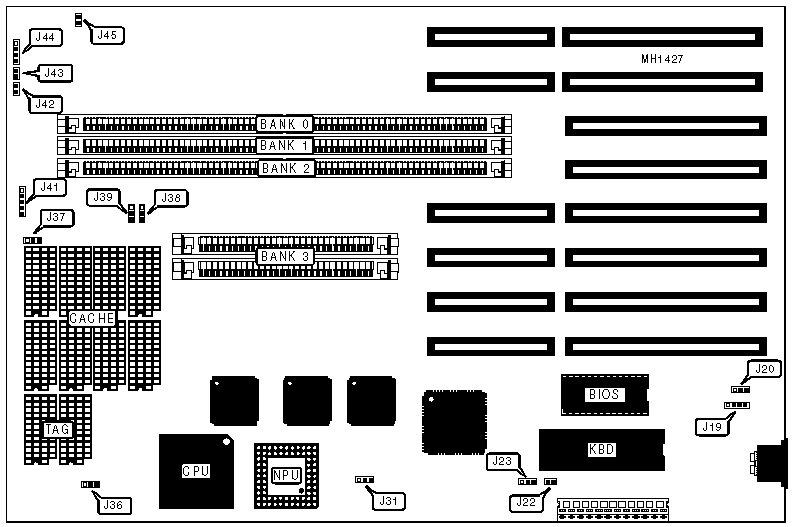

CONNECTIONS
Purpose	Location	Purpose	Location
External Battery	J19	Turbo LED	J43
Front Panel	J41	Speaker	J44
Reset switch	J42

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	CMOS memory clear	J20	pins 1 & 2 closed
	CMOS memory normal	J20	pins 2 & 3 closed
»	Monitor type select color	J22	closed
	Monitor type select monochrome	J22	open
»	Factory configured - do not alter	J23	unknown
»	NPU enabled	J31	pins 1 & 2 closed
	NPU disabled	J31	pins 2 & 3 closed

CPU CONFIGURATION
Type	CPU Speed	OSC	J45
80386DX	25MHz	50MHz	closed
80386DX	33MHz	66MHz	open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE
4MB	(4) 1M x 9	NONE	NONE	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
12MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	NONE
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9

SRAM JUMPER CONFIGURATION
Size	J36	J37	J38	J39
64KB	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
256KB	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed

SRAM CONFIGURATION
Size	Cache	Location	TAG
64KB	(8) 16K x 4	CACHE	(2) 16K x 4
256KB	(8) 64k x 4	CACHE	(2) 64K x 4
