XINETRON, INC.
XINET XI-286 LS2122
|
Processor |
80286 |
|
Processor Speed |
12MHz |
|
Chip Set |
C & T |
|
Max. onboard DRAM |
4MB |
|
Cache |
None |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Analog monitor, AUI Ethernet interface, BNC Ethernet interface, floppy drive interface, IDE interface, parallel port, serial ports (2), TTL monitor |
|
NPU Options |
80287 |
|

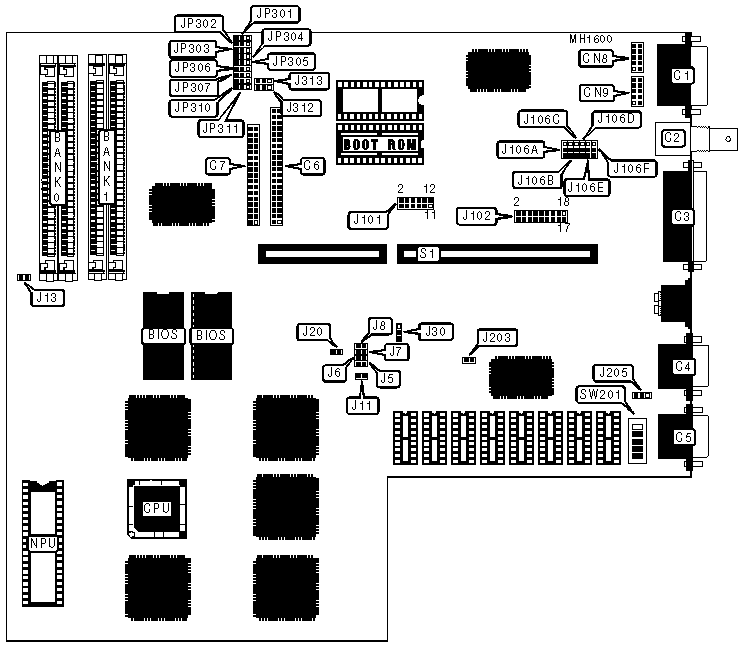

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AUI ethernet interface |
CN1 |
Floppy drive interface |
CN7 |
|
BNC ethernet interface |
CN2 |
Serial port (COM1) |
CN8 |
|
Parallel port |
CN3 |
Serial port (COM2) |
CN9 |
|
Analog monitor |
CN4 |
Turbo |
J5 & J11 |
|
TTL monitor |
CN5 |
External battery |
J30 |
|
IDE interface |
CN6 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
Monitor type select monochrome/EGA/VGA |
J8 |
Open |
|
|
Monitor type select color |
J8 |
Closed |
|
» |
BIOS type select 27128 |
J13 |
Open |
|
|
BIOS type select 27256 |
J13 |
Closed |
|
» |
Factory configured - do not alter |
J102 |
pins 9 & 10 open |
|
» |
DMA request select DRQ1 |
J102 |
pins 11 & 12 closed |
|
|
DMA request select DRQ3 |
J102 |
pins 15 & 16 closed |
|
» |
DMA acknowledge DACK 1 |
J102 |
pins 13 & 14 closed |
|
|
DMA acknowledge DACK 3 |
J102 |
pins 17 & 18 closed |
|
» |
VGA interface transfer rate select 0 wait states |
J203 |
Closed |
|
|
VGA interface transfer rate select 1 wait state |
J203 |
Open |
|
» |
Cable type select Ethernet |
J106 A - F |
pins 1 & 2 closed |
|
|
Cable type select Cheapernet |
J106 A - F |
pins 2 & 3 closed |
|
» |
I/O configured via hardware |
JP310 |
pins 1 & 2 closed |
|
|
I/O configured via software |
JP310 |
pins 2 & 3 closed |
|
» |
Floppy drive interface enabled |
JP306, JP312 & JP313 |
pins 2 & 3 closed |
|
|
Floppy drive interface disabled |
JP306, JP312 & JP313 |
pins 1 & 2 closed |
|
» |
IDE interface enabled |
JP312 & JP313 |
pins 2 & 3 closed |
|
|
IDE interface disabled |
JP312 & JP313 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION |
|||||
|
Size |
Bank 0 |
Bank 1 |
J6 |
J7 |
J20 |
|
512KB |
(2) 256K x 9 |
NONE |
Closed |
Closed |
Closed |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
Closed |
Open |
Closed |
|
2MB |
(2) 1M x 9 |
NONE |
Open |
Open |
Closed |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
Closed |
Closed |
Open |
|
SERIAL PORT CONFIGURATION |
|||||
|
COM1 (CN8) |
COM2 (CN9) |
JP303 |
JP304 |
JP305 |
|
|
» |
Enabled |
Enabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
|
Enabled |
Disabled |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
|
Disabled |
Enabled |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
|
Disabled |
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
PARALLEL PORT CONFIGURATION |
||||
|
LPT |
I/O Address |
JP301 |
JP302 |
|
|
|
LPT 1 |
3BCh |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
» |
LPT 2 |
378h |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
|
LPT 3 |
278h |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
|
Disabled |
N/A |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
VIDEO CONFIGURATION |
||||||
|
Mode |
SW201/1 |
SW201/2 |
SW201/3 |
SW201/4 |
SW201/5 |
|
|
» |
VGA |
On |
On |
On |
On |
On |
|
|
CGA |
On |
On |
Off |
On |
On |
|
|
EGA |
On |
On |
Off |
Off |
On |
|
|
MGA/Hercules |
On |
On |
Off |
Off |
Off |
|
ETHERNET NETWORK INTERRUPT CONFIGURATION |
||
|
interrupt |
J102 |
|
|
|
IRQ2 |
pins 1 & 2 closed |
|
» |
IRQ3 |
pins 3 & 4 closed |
|
|
IRQ4 |
pins 5 & 6 closed |
|
|
IRQ5 |
pins 7 & 8 closed |
|
ETHERNET I/O BASE ADDRESS CONFIGURATION |
||
|
I/O Address |
J101 |
|
|
» |
300h |
pins 9 & 10, 11 & 12 closed |
|
|
320h |
pins 9 & 10 closed |
|
|
340h |
pins 11 & 12 closed |
|
|
360h |
Open |
|
ETHERNET BOOT ROM MEMORY ADDRESS CONFIGURATION |
||
|
Address |
J101 |
|
|
» |
C8000h |
pins 1 & 2, 3 & 4, 5 & 6 closed |
|
|
CC000h |
pins 1 & 2, 3 & 4 closed |
|
|
D0000h |
pins 1 & 2, 5 & 6, 7 & 8 closed |
