ASUS COMPUTER INTERNATIONAL
VL/I-486SV2G, VL/I-486SV2GX4 (REV. 1.1)
|
 Processor  |
 80486SX/SL80486SX/80487SX/CX486S/CX486DX/80486DX/SL80486DX/ SLODP486/ODP486SX/CX486DX2/80486DX2/80486DX4/Pentium Overdrive  |
|
 Processor Speed  |
 20/25/33/40/50(internal)/50/66(internal)/75(internal)/82.5(internal)/ 99(internal)/100(internal)MHz  |
|
 Chip Set  |
 SIS  |
|
 Max. Onboard DRAM  |
 64MB  |
|
 Cache  |
 128/256/512/1024KB  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 220mm x 220mm  |
|
 I/O Options  |
 32-bit VESA local bus slots (2), PS/2 mouse port, green PC  |
|
 NPU Options  |
 None  |

|

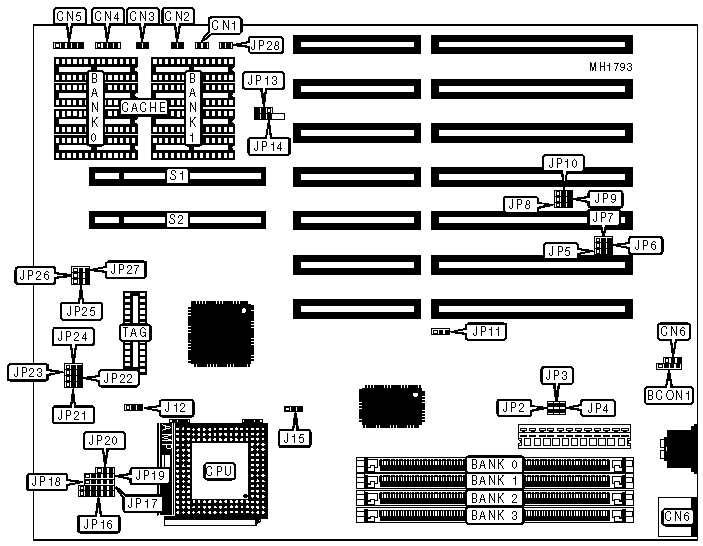

 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 External battery  |
 BCON1  |
 Green PC 1  |
 JP2  |
|
 Turbo switch  |
 CN1  |
 Green PC 2  |
 JP3  |
|
 Turbo LED  |
 CN2  |
 Green PC 3  |
 JP4  |
|
 Reset switch  |
 CN3  |
 Suspend power management  |
 JP28  |
|
 Speaker  |
 CN4  |
 32-bit VESA local bus slot  |
 S1  |
|
 Power LED & keylock  |
 CN5  |
 32-bit VESA local bus slot  |
 S2  |
|
 PS/2 mouse connector  |
 CN6  |

  |

  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Jumper  |
 Position  |
|
|
 »  |
 Battery type select (Internal)  |
 JP1  |
 pins 1 & 2 closed  |
|

  |
 Battery type select (External)  |
 JP1  |
 pins 2 & 3 closed  |
|
 »  |
 IRQ12 enabled  |
 JP7  |
 pins 1 & 2 closed  |
|

  |
 IRQ12 disabled  |
 JP7  |
 pins 2 & 3 closed  |
|
 »  |
 Factory configured - do not alter  |
 JP8  |
 N/A  |
|
 »  |
 Monitor type select CGA  |
 JP9  |
 pins 2 & 3 closed  |
|

  |
 Monitor type select monochrome or VGA  |
 JP9  |
 pins 1 & 2 closed  |
|
 »  |
 Hardware SMI switch enabled  |
 JP10  |
 pins 2 & 3 closed  |
|

  |
 RC control enabled  |
 JP10  |
 pins 1 & 2 closed  |
|
 »  |
 CPU manufacturer select type Intel  |
 JP11  |
 pins 2 & 3 closed  |
|

  |
 CPU manufacturer select type Cyrix  |
 JP11  |
 pins 1 & 2 closed  |
|
 »  |
 Delay VESA clock  |
 JP24  |
 pins 1 & 2 closed  |
|

  |
 No Delay VESA clock  |
 JP24  |
 pins 2 & 3 closed  |
|
 DRAM CONFIGURATION  |
||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 1MB  |
 (1) 1M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 2MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 NONE  |
 NONE  |
|
 2MB  |
 (1) 2M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 4MB  |
 (1) 4M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 5MB  |
 (1) 1M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 NONE  |
|
 6MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 6MB  |
 (1) 2M x 36  |
 NONE  |
 (1) 4M x 36  |
 NONE  |
|
 8MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 NONE  |
 NONE  |
|
 10MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 10MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 8M x 36  |
 NONE  |
|
 10MB  |
 (1) 2M x 36  |
 NONE  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 10MB  |
 (1) 2M x 36  |
 NONE  |
 (1) 8M x 36  |
 NONE  |
|
 12MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 NONE  |
|
 12MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 4M x 36  |
 NONE  |
|
 16MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 16MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 8M x 36  |
 NONE  |
|
 16MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 8M x 36  |
 NONE  |
|
 16MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 4M x 36  |
 (1) 4M x 36  |
|
 16MB  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 17MB  |
 (1) 1M x 36  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
|
 18MB  |
 (1) 1M x 36  |
 (1) 1M x 36  |
 (1) 16M x 36  |
 NONE  |
|
 18MB  |
 (1) 2M x 36  |
 NONE  |
 (1) 16M x 36  |
 NONE  |
|
 20MB  |
 (1) 4M x 36  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
|
 24MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 16M x 36  |
 NONE  |
|
 24MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 16M x 36  |
 NONE  |
|
 32MB  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 NONE  |
 NONE  |
|
 32MB  |
 (1) 32M x 36  |
 NONE  |
 NONE  |
 NONE  |
|
 36MB  |
 (1) 4M x 36  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 NONE  |
|
 DRAM CONFIGURATION (CONT.)  |
||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 40MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 16M x 36  |
 (1) 16M x 36  |
|
 40MB  |
 (1) 4M x 36  |
 (1) 4M x 36  |
 (1) 32M x 36  |
 NONE  |
|
 40MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 16M x 36  |
 (1) 16M x 36  |
|
 40MB  |
 (1) 8M x 36  |
 NONE  |
 (1) 32M x 36  |
 NONE  |
|
 40MB  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 NONE  |
|
 64MB  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 (1) 16M x 36  |
|
 64MB  |
 (1) 16M x 36  |
 (1) 16M x 36  |
 (1) 32M x 36  |
 NONE  |
|
 64MB  |
 (1) 32M x 36  |
 NONE  |
 (1) 32M x 36  |
 NONE  |
|
 CACHE CONFIGURATION  |
|||
|
 Size  |
 Bank 0  |
 Bank 1  |
 TAG  |
|
 128KB  |
 (4) 32K x 8  |
 NONE  |
 (1) 8K x 8  |
|
 256KB  |
 (4) 32K x 8/(4) 64K x 8  |
 (4) 32K x 8/NONE  |
 (1) 32K x 8  |
|
 512KB  |
 (4) 64K x 8/(4) 128K x 8  |
 (4) 64K x 8/NONE  |
 (1) 32K x 8  |
|
 1024KB  |
 (4) 128K x 8  |
 (4) 128K x 8  |
 (1) 128K x 8  |
|
 CACHE JUMPER CONFIGURATION  |
|||
|
 Size  |
 JP13  |
 JP14  |
 JP25  |
|
 128KB  |
 Open  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 256KB (32K x 8)  |
 Open  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 256KB (64K x 8)  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 512KB (64K x 8)  |
 pins 5 & 6 closed  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 512KB (128K x 8)  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 1024KB  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 CPU TYPE CONFIGURATION  |
|||||
|
 Type  |
 JP16  |
 JP17  |
 JP18  |
 JP19  |
 JP20  |
|
 80486SX  |
 Open  |
 Open  |
 Open  |
 pins 2 & 3  |
 pins 2 & 3  |
|
 SL486SX  |
 3 & 4 and 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 2 & 3  |
 pins 2 & 3  |
|
 80487SX  |
 Open  |
 Open  |
 Open  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 CX486S  |
 2 & 3 and 4 & 5  |
 pins 1 & 2  |
 1 & 2 and 3 & 4  |
 pins 2 & 3  |
 pins 2 & 3  |
|
 CX486DX  |
 2 & 3 and 4 & 5  |
 pins 1 & 2  |
 1 & 2 and 3 & 4  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 80486DX  |
 Open  |
 Open  |
 Open  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 SL486DX  |
 3 & 4 and 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 SLODP486  |
 pins 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 ODP486SX  |
 Open  |
 Open  |
 Open  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 CX486DX2  |
 2 & 3 and 4 & 5  |
 pins 1 & 2  |
 1 & 2 and 3 & 4  |
 1 & 2 and 4 & 5  |
 pins 2 & 3  |
|
 80486DX2  |
 Open  |
 Open  |
 Open  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 SL486DX2  |
 3 & 4 and 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 80486DX4 (2 x)  |
 3 & 4 and 5 & 6  |
 pins 5 & 6  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 80486DX4 (2.5 x)  |
 3 & 4 and 5 & 6  |
 pins 4 & 5  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 80486DX4 (3 x)  |
 3 & 4 and 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 2 & 3  |
|
 Pentium Overdrive  |
 pins 5 & 6  |
 Open  |
 pins 4 & 5  |
 pins 1 & 2  |
 pins 1 & 2  |
|
 Note:Pins designated should be in the closed position.  |
|||||
|
 HARDWARE TRAP CPU TYPE CONFIGURATION  |
||
|
 Type  |
 JP5  |
 JP6  |
|
 80486SX  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 CX486S  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 CX486DX  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 80486DX  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SL486SX  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SL486DX  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 80486DX2  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SL486DX2  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 SL486DX4  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 Pentium Overdrive  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 CPU SPEED CONFIGURATION  |
|||
|
 Speed  |
 JP21  |
 JP22  |
 JP23  |
|
 20MHz  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 25MHz  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 33MHz  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 40MHz  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
|
 50i MHz  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 50MHz  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 66i MHz  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 75i MHz (3x)  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 82.5i MHz (2.5x)  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 99i MHz (3x)  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 100i MHz (2x)  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  |
|
 VESA WAIT STATE/BUS SPEED CONFIGURATION  |
|||
|
 CPU speed  |
 Wait states  |
 JP26  |
 JP27  |
|
 <=33MHz  |
 0 wait states  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 >33MHz  |
 1 wait state  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 CPU VOLTAGE SELECTION  |
||
|
 Function  |
 JP12  |
 JP15  |
|
 3.3V (DX4)  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 5V  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
