UNIDENTIFIED

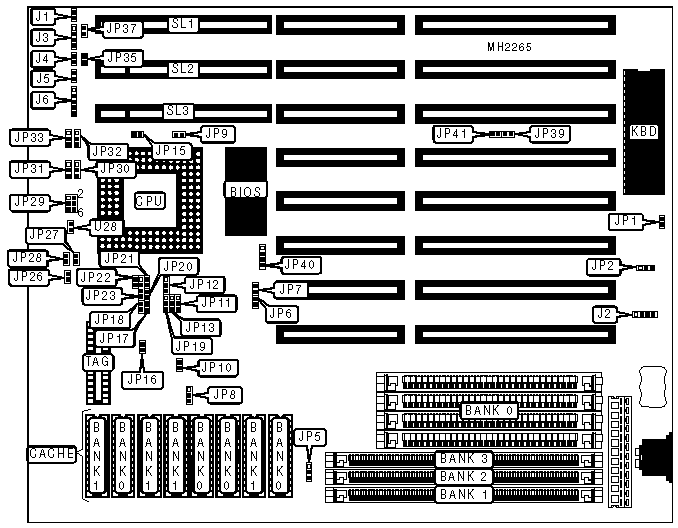

J-403TG 486 GREEN VLB
|
Processor |
80486SX/CX486DX/80486DX/80486DX2/80486DX4 |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
128MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI/Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (3), green PC connector |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
J1 |
Power LED & keylock |
J6 |
|
External battery |
J2 |
Green PC connector |
JP6 |
|
Speaker |
J3 |
Green PC connector (monitor) |
JP39 |
|
Turbo switch |
J4 |
Green PC LED |
JP41 |
|
Turbo LED |
J5 |
32-bit VESA local bus slots |
SL1 - SL3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
Open |
|
» |
CMOS memory normal operation |
JP2 |
pins 2 & 3 closed |
|
CMOS memory clear |
JP2 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP7 |
Open |
|
» |
Factory configured - do not alter |
JP12 |
Open |
|
» |
Factory configured - do not alter |
JP16 |
Open |
|
» |
Factory configured - do not alter |
JP19 |
Open |
|
» |
Factory configured - do not alter |
JP22 |
Open |
|
» |
Factory configured - do not alter |
JP26 |
Open |
|
» |
Factory configured - do not alter |
JP30 |
Open |
|
» |
Factory configured - do not alter |
U28 |
Open |
|
DRAM CONFIGURATION | |||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
JP5 |
|
2MB |
(4) 256K x 9 |
NONE |
NONE |
(1) 256K x 36 |
2 & 3 |
|
2MB |
NONE |
NONE |
NONE |
(1) 512K x 36 |
1 & 2 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
2 & 3 |
|
4MB |
NONE |
NONE |
NONE |
(1) 1M x 36 |
1 & 2 |
|
4MB |
(4) 256K x 9 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
2 & 3 |
|
4MB |
NONE |
NONE |
(1) 512K x 36 |
(1) 512K x 36 |
1 & 2 |
|
5MB |
(4) 256K x 9 |
NONE |
NONE |
(1) 1M x 36 |
2 & 3 |
|
6MB |
(4) 256K x 9 |
NONE |
(1) 1M x 36 |
(1) 256K x 36 |
2 & 3 |
|
6MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 512K x 36 |
1 & 2 |
|
8MB |
(4) 1M x 9 |
NONE |
NONE |
(1) 1M x 36 |
2 & 3 |
|
8MB |
NONE |
NONE |
NONE |
(1) 2M x 36 |
1 & 2 |
|
8MB |
NONE |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
1 & 2 |
|
10MB |
(4) 256K x 9 |
NONE |
(1) 2M x 36 |
(1) 256K x 36 |
2 & 3 |
|
10MB |
(4) 256K x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
2 & 3 |
|
10MB |
NONE |
NONE |
(1) 2M x 36 |
(1) 512K x 36 |
1 & 2 |
|
10MB |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 512K x 36 |
1 & 2 |
|
12MB |
(4) 1M x 9 |
NONE |
(1) 2M x 36 |
NONE |
2 & 3 |
|
12MB |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
1 & 2 |
|
12MB |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
2 & 3 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
2 & 3 |
|
16MB |
NONE |
NONE |
NONE |
(1) 4M x 36 |
1 & 2 |
|
16MB |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
2 & 3 |
|
16MB |
NONE |
NONE |
(1) 2M x 36 |
(1) 2M x 36 |
1 & 2 |
|
17MB |
(4) 256K x 9 |
NONE |
NONE |
(1) 4M x 36 |
2 & 3 |
|
20MB |
(4) 1M x 9 |
NONE |
NONE |
(1) 4M x 36 |
2 & 3 |
|
20MB |
(4) 1M x 9 |
NONE |
(1) 4M x 36 |
NONE |
2 & 3 |
|
20MB |
NONE |
NONE |
(1) 4M x 36 |
(1) 1M x 36 |
1 & 2 |
|
32MB |
(4) 4M x 9 |
NONE |
NONE |
(1) 4M x 36 |
2 & 3 |
|
32MB |
NONE |
NONE |
NONE |
(1) 8M x 36 |
1 & 2 |
|
32MB |
(4) 4M x 9 |
NONE |
(1) 4M x 36 |
NONE |
2 & 3 |
|
DRAM CONFIGURATION (CON’T) | |||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
JP5 |
|
32MB |
NONE |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
1 & 2 |
|
64MB |
(4) 16M x 9 |
NONE |
NONE |
NONE |
2 & 3 |
|
64MB |
NONE |
NONE |
NONE |
(1) 16M x 36 |
1 & 2 |
|
64MB |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
2 & 3 |
|
64MB |
NONE |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
1 & 2 |
|
128MB |
(4) 16M x 9 |
NONE |
NONE |
(1) 16M x 36 |
2 & 3 |
|
128MB |
NONE |
NONE |
NONE |
(1) 32M x 36 |
1 & 2 |
|
128MB |
(4) 16M x 9 |
NONE |
(1) 16M x 36 |
NONE |
2 & 3 |
|
128MB |
NONE |
NONE |
(1) 16M x 36 |
(1) 16M x 36 |
1 & 2 |
|
Note: Pins designated should be in the closed positon. | |||||
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP8 |
JP27 |
JP28 |
|
64KB |
pins 2 & 3 closed |
Open |
Open |
|
128KB |
pins 1 & 2 closed |
Closed |
Open |
|
256KB |
pins 2 & 3 closed |
Closed |
Closed |
|
CPU TYPE CONFIGURATION | |||||
|
Type |
JP9 |
JP10 |
JP11 |
JP13 |
JP15 |
|
80486SX |
Open |
Open |
pins 1 & 2 closed |
Open |
Open |
|
SL80486SX |
Open |
Closed |
pins 1 & 2 closed |
Open |
Open |
|
CX486DX |
Closed |
Open |
pins 2 & 3 closed |
pins 1 & 2 closed |
Closed |
|
80486DX |
Open |
Open |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
SL80486DX |
Open |
Closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
80486DX2 |
Open |
Open |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
SL80486DX2 |
Open |
Closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
80486DX4 |
Open |
Closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
CPU TYPE CONFIGURATION | |||||
|
Type |
JP20 |
JP21 |
JP23 |
JP32 |
JP40 |
|
80486SX |
Open |
Open |
2 & 3 |
Open |
1 & 2, 3 & 4 |
|
SL80486SX |
Open |
Open |
2 & 3 |
Open |
1 & 2, 3 & 4 |
|
CX486DX |
Open |
Open |
1 & 2, 3 & 4 |
1 & 2 |
1 & 2, 3 & 4 |
|
80486DX |
Open |
Open |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
SL80486DX |
Closed |
Closed |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
80486DX2 |
Open |
Open |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
SL80486DX2 |
Closed |
Closed |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
80486DX4 |
Closed |
Closed |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED CONFIGURATION | ||
|
Speed |
JP17 |
JP18 |
|
25MHz |
Open |
Open |
|
33MHz |
Closed |
Closed |
|
40MHz |
Closed |
Open |
|
50iMHz |
Open |
Open |
|
50MHz |
Open |
Closed |
|
66iMHz |
Closed |
Closed |
|
CPU VOLTAGE CONFIGURATION | |
|
Voltage |
JP29 |
|
3.3v |
pins 3 & 5, 4 & 6 closed |
|
5.0v |
pins 1 & 3, 2 & 4 closed |
|
VESA WAIT STATE CONFIGURATION | |
|
Wait states |
JP35 |
|
0 wait states |
Open |
|
1 wait state |
Closed |
|
BUS SPEED CONFIGURATION | |||
|
CPU speed |
JP31 |
JP33 |
JP37 |
|
<= 33MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
Open |
|
> 33MHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
Closed |
