YOUNG MICRO SYSTEMS, INC.
CROSS P5-VIP (REV 1.0)
|

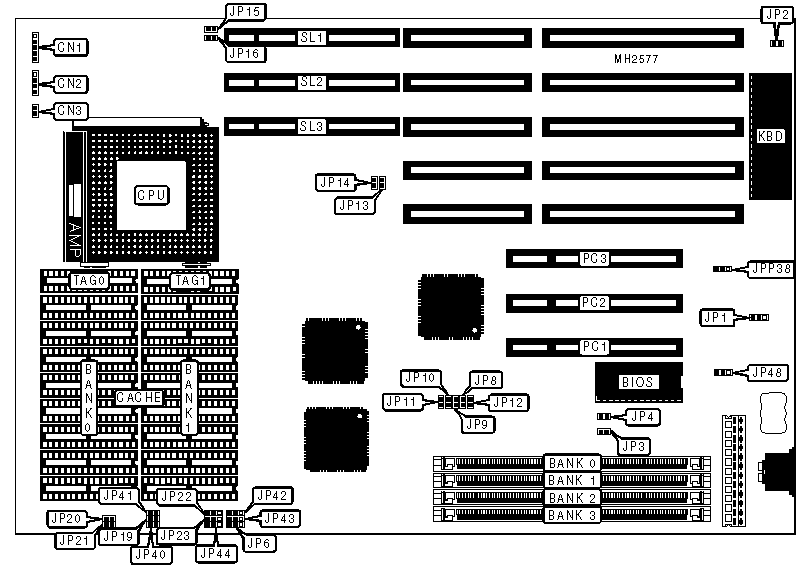

Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
128MB |
|
Cache |
64/128/256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (3), 32-bit PCI slots (3) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
CN1 |
32-bit VESA local bus slots |
SL1 - SL3 |
|
Speaker |
CN2 |
32-bit PCI slots |
PC1 - PC3 |
|
Reset switch |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory normal operation |
JP1 |
pins 2 & 3 closed |
|
CMOS memory clear |
JP1 |
pins 1 & 2 closed | |
|
» |
Monitor type select color |
JP2 |
Closed |
|
Monitor type select monochrome |
JP2 |
Open | |
|
» |
Factory configured - do not alter |
JP3 |
Closed |
|
» |
Factory configured - do not alter |
JP4 |
Closed |
|
» |
Factory configured - do not alter |
JP10 |
Open |
|
» |
Factory configured - do not alter |
JP11 |
Open |
|
» |
Factory configured - do not alter |
JP12 |
Open |
|
» |
Flash BIOS select normal |
JP48 |
pins 1 & 2 closed |
|
Flash BIOS select programming |
JP48 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JPP38 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
TAG 0 |
TAG 1 |
|
64KB |
(8) 8K x 8 |
NONE |
NONE |
(1) 8K x 8 |
|
128KB |
(8) 8K x 8 |
(8) 8K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(8) 32K x 8 |
NONE |
NONE |
(1) 8K x 8 |
|
512KB |
(8) 32K x 8 |
(8) 32K x 8 |
(1) 32K x 8 |
(1) 32K x 8 |
|
1MB |
(8) 128K x 8 |
NONE |
NONE |
(1) 128K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP6 |
JP19 |
JP20 |
JP21 |
JP22 |
|
64KB |
1 & 2 |
Open |
Open |
Open |
1 & 2 |
|
128KB |
2 & 3 |
Closed |
Open |
Open |
2 & 3 |
|
256KB |
1 & 2 |
Closed |
Closed |
Open |
1 & 2 |
|
512KB |
2 & 3 |
Closed |
Closed |
Closed |
2 & 3 |
|
1MB |
1 & 2 |
Closed |
Closed |
Closed |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CACHE JUMPER CONFIGURATION (CON’T) | ||||||
|
Size |
JP23 |
JP40 |
JP41 |
JP42 |
JP43 |
JP44 |
|
64KB |
1 & 2 |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
128KB |
2 & 3 |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
256KB |
1 & 2 |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
512KB |
2 & 3 |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
1MB |
1 & 2 |
Closed |
Open |
1 & 2 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED CONFIGURATION | ||
|
Speed |
JP13 |
JP14 |
|
60MHz |
Closed |
Open |
|
66MHz |
Closed |
Closed |
|
AT CLOCK CONFIGURATION | ||
|
Setting |
JP8 |
JP9 |
|
LCLK/2 |
Open |
Open |
|
LCLK/3 |
Closed |
Open |
|
LCLK/4 |
Open |
Closed |
|
LCLK/5 |
Closed |
Closed |
|
VESA WAIT STATE CONFIGURATION | |
|
Wait states |
JP15 |
|
0 wait states |
Open |
|
1 wait state |
Closed |
|
BUS SPEED CONFIGURATION | |
|
CPU speed |
JP16 |
|
<= 33MHz |
Open |
|
> 33MHz |
Closed |
