Processor	80286
Processor Speed	6/10/12MHz
Chip Set	Unidentified
Max. Onboard DRAM	1MB
Cache	None
BIOS	Unidentified
Dimensions	383mm x 328mm
I/O Options	None
NPU Options	None

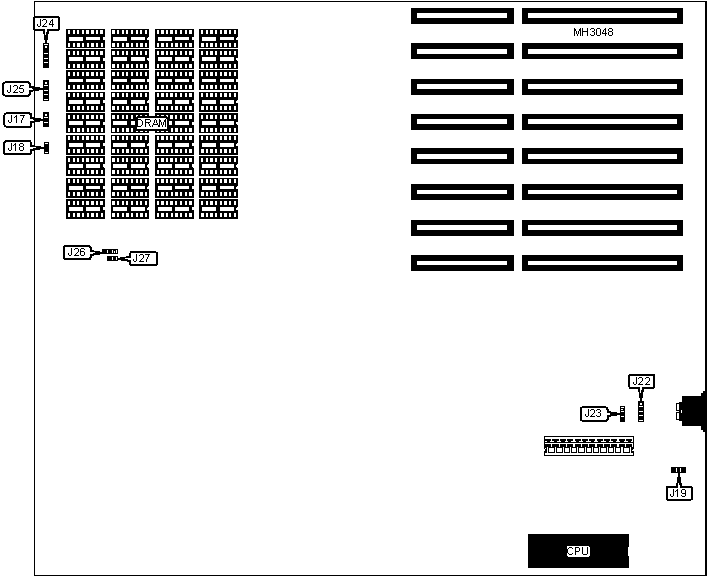

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J18	Power LED & keylock	J24
External battery	J22	Speaker	J25

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
	Monitor type select color	J23	pins 2 & 3 closed
	Monitor type select monochrome	J23	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
640KB	(18) 41256	(18) 4164
1MB	(18) 41256	(18) 41256
Note: The exact location of Bank 0 and Bank 1 are unidentified.

DRAM JUMPER CONFIGURATION
Size	J26
640KB	pins 1 & 2 closed
1MB	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed	J17	J27
6Mhz	pins 2 & 3 closed	Closed
10Mhz	pins 1 & 2 closed	Open
12Mhz	pins 1 & 2 closed	Open

WAIT STATE CONFIGURATION
Wait states	J19
0 wait states	pins 2 & 3 closed
1 wait state	pins 1 & 2 closed
