Processor	80286
Processor Speed	12/16MHz
Chip Set	Headland
Video Chip Set	None
Maximum Onboard Memory	4MB
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	218mm x 206mm
I/O Options	None
NPU Options	80287

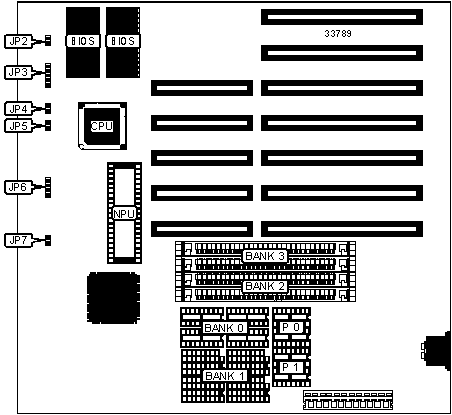

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo switch	JP2	Speaker	JP6
Power LED & keylock	JP3	Reset switch	JP7
Turbo LED	JP5

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select color	JP4	Closed
	Monitor type select monochrome	JP4	Open

DRAM CONFIGURATION
Size	Bank 0	P 0	Bank 1	P 1	Bank 2	Bank 3
512KB	(4) 44256	(2) 41256	None	None	None	None
640KB	(4) 44256	(2) 41256	(4) 44256	(2) 4164	None	None
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	None	None
2MB	None	None	None	None	(2) 1M x 9	None
4MB	None	None	None	None	(2) 1M x 9	(2) 1M x 9
