5DTX (VER. 1.00)

ZIDA TECHNOLOGIES INC.

5DTX (VER. 1.00)

Device Type

Mainboard

Processor

CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/AM K5/AM K6/Pentium/Pentium MMX

Processor Speed

90/100/120/133/150/166/180/200/233MHz

Chip Set

Intel 430TX

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector

NPU Options

None

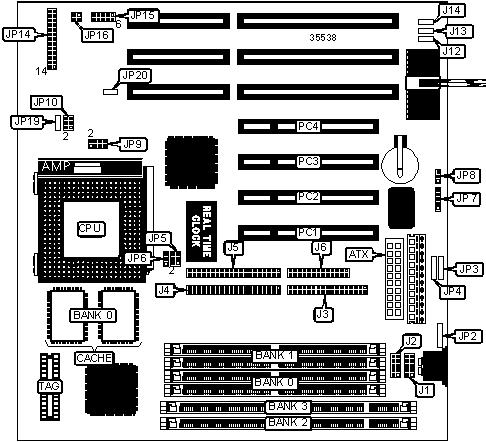

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

USB connector 1

JP3

Serial port 2

J1

USB connector 2

JP4

Serial port 1

J2

IR connector

JP7

Floppy drive interface

J3

Power LED & keylock

JP14/pins 1 – 5

IDE interface 1

J4

Green PC connector

JP14/pins 7 & 8

IDE interface 2

J5

Speaker

JP14/pins 10 – 13

Parallel port

J6

IDE interface LED

JP14/pins 14 & 15

PS/2 mouse interface

JP2

32-bit PCI slots

PC1 – PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J12

Unidentified

»

Factory configured - do not alter

J14

Unidentified

»

Factory configured - do not alter

J14

Unidentified

»

CMOS memory normal operation

JP8

Pins 2 & 3 closed

CMOS memory clear

JP8

Pins 1 & 2 closed

»

Factory configured - do not alter

JP19

Unidentified

»

Factory configured - do not alter

JP20

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

Bank 3

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

133MHz

55MHz

2x

3 & 5, 4 & 6

1 & 2

1 & 3, 4 & 6

166MHz

66MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

133MHz

55MHz

2x

3 & 5, 4 & 6

1 & 2

1 & 3, 4 & 6

166MHz

66MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

200MHz

75MHz

2x

1 & 3, 4 & 6

1 & 2

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

200MHz

75MHz

2x

1 & 3, 4 & 6

1 & 2

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

90MHz

60MHz

1.5x

1 & 3, 4 & 6

2 & 3

1 & 3, 2 & 4

100MHz

66MHz

1.5x

2 & 4, 3 & 5

2 & 3

1 & 3, 2 & 4

133MHz

66MHz

1.5x

2 & 4, 3 & 5

2 & 3

1 & 3, 2 & 4

150MHz

60MHz

1.75x

1 & 3, 4 & 6

2 & 3

3 & 5, 4 & 6

166MHz

66MHz

1.75x

2 & 4, 3 & 5

2 & 3

3 & 5, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

166MHz

66MHz

2.5x

2 & 4, 3 & 5

2 & 3

3 & 5, 4 & 6

200MHz

66MHz

3x

2 & 4, 3 & 5

2 & 3

2 & 4, 3 & 5

233MHz

66MHz

3.5x

2 & 4, 3 & 5

2 & 3

1 & 3, 2 & 4

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

90MHz

60MHz

1.5x

1 & 3, 4 & 6

2 & 3

1 & 3, 2 & 4

100MHz

66MHz

1.5x

2 & 4, 3 & 5

2 & 3

1 & 3, 2 & 4

120MHz

60MHz

2x

1 & 3, 4 & 6

2 & 3

1 & 3, 4 & 6

133MHz

66MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 3, 4 & 6

150MHz

60MHz

2.5x

1 & 3, 4 & 6

2 & 3

3 & 5, 4 & 6

166MHz

66MHz

2.5x

2 & 4, 3 & 5

2 & 3

3 & 5, 4 & 6

180MHz

60MHz

3x

1 & 3, 4 & 6

2 & 3

2 & 4, 3 & 5

200MHz

66MHz

3x

2 & 4, 3 & 5

2 & 3

2 & 4, 3 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP10

166MHz

66MHz

2.5x

2 & 4, 3 & 5

2 & 3

3 & 5, 4 & 6

200MHz

66MHz

3x

2 & 4, 3 & 5

2 & 3

2 & 4, 3 & 5

233MHz

66MHz

3.5x

2 & 4, 3 & 5

2 & 3

1 & 3, 2 & 4

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP9

AM K5

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

AM K6

Open

Cyrix 6x86

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

Cyrix 6x86L

Open

IBM 6x86

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

IBM 6x86L

Open

Pentium

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

Pentium MMX

Open

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP16

3.3v

Pins 1 & 2 closed

3.52v

Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)

Voltage

JP15

2.8v

Pins 1 & 6 closed

2.9v

Pins 2 & 7 closed

3.2v

Pins 3 & 8 closed

3.3v

Pins 4 & 9 closed

3.5v

Pins 5 & 10 closed

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/AM K5/AM K6/Pentium/Pentium MMX
Processor Speed	90/100/120/133/150/166/180/200/233MHz
Chip Set	Intel 430TX
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	USB connector 1	JP3
Serial port 2	J1	USB connector 2	JP4
Serial port 1	J2	IR connector	JP7
Floppy drive interface	J3	Power LED & keylock	JP14/pins 1 – 5
IDE interface 1	J4	Green PC connector	JP14/pins 7 & 8
IDE interface 2	J5	Speaker	JP14/pins 10 – 13
Parallel port	J6	IDE interface LED	JP14/pins 14 & 15
PS/2 mouse interface	JP2	32-bit PCI slots	PC1 – PC4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J12	Unidentified
»	Factory configured - do not alter	J14	Unidentified
»	Factory configured - do not alter	J14	Unidentified
»	CMOS memory normal operation	JP8	Pins 2 & 3 closed
	CMOS memory clear	JP8	Pins 1 & 2 closed
»	Factory configured - do not alter	JP19	Unidentified
»	Factory configured - do not alter	JP20	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2	Bank 3
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(2) 32K x 32	Unidentified
512KB	(2) 64K x 32	Unidentified

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
133MHz	55MHz	2x	3 & 5, 4 & 6	1 & 2	1 & 3, 4 & 6
166MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
133MHz	55MHz	2x	3 & 5, 4 & 6	1 & 2	1 & 3, 4 & 6
166MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
200MHz	75MHz	2x	1 & 3, 4 & 6	1 & 2	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
200MHz	75MHz	2x	1 & 3, 4 & 6	1 & 2	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
90MHz	60MHz	1.5x	1 & 3, 4 & 6	2 & 3	1 & 3, 2 & 4
100MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
133MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
150MHz	60MHz	1.75x	1 & 3, 4 & 6	2 & 3	3 & 5, 4 & 6
166MHz	66MHz	1.75x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
233MHz	66MHz	3.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
90MHz	60MHz	1.5x	1 & 3, 4 & 6	2 & 3	1 & 3, 2 & 4
100MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
120MHz	60MHz	2x	1 & 3, 4 & 6	2 & 3	1 & 3, 4 & 6
133MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
150MHz	60MHz	2.5x	1 & 3, 4 & 6	2 & 3	3 & 5, 4 & 6
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
180MHz	60MHz	3x	1 & 3, 4 & 6	2 & 3	2 & 4, 3 & 5
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
233MHz	66MHz	3.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP9
AM K5	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
AM K6	Open
Cyrix 6x86	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Cyrix 6x86L	Open
IBM 6x86	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
IBM 6x86L	Open
Pentium	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Pentium MMX	Open

CPU VOLTAGE SELECTION (SINGLE)
Voltage	JP16
3.3v	Pins 1 & 2 closed
3.52v	Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)
Voltage	JP15
2.8v	Pins 1 & 6 closed
2.9v	Pins 2 & 7 closed
3.2v	Pins 3 & 8 closed
3.3v	Pins 4 & 9 closed
3.5v	Pins 5 & 10 closed
