Processor	CX 6X86/AM K5/Pentium/Pentium MMX
Processor Speed	75/90/100/120/133/150/166/180/200MHz
Chip Set	VIA
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	AMI/Award
Dimensions	270mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connectors (2)
NPU Options	None

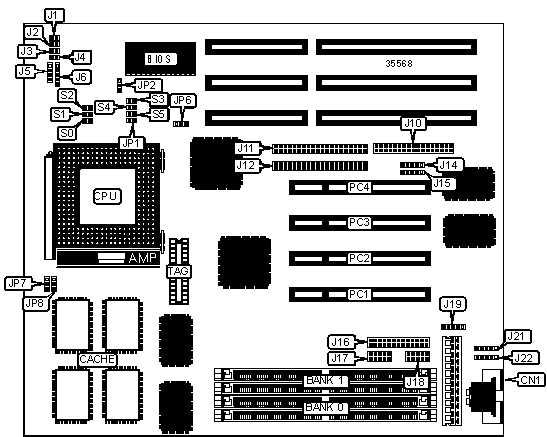

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	IR connector	J14
Reset switch	J1	IR connector (fast)	J15
Turbo switch	J2	Parallel port	J16
Turbo LED	J3	Serial port 2	J17
IDE interface LED	J4	Serial port 1	J18
Speaker	J5	PS/2 mouse interface	J19
Power LED & keylock	J6	USB connector 2	J21
Floppy drive interface	J10	USB connector 1	J22
IDE interface 2	J11	32-bit PCI slots	PC1 - PC4
IDE interface 1	J12

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Flash BIOS voltage select 12v	JP2	Pins 2 & 3 closed
	Flash BIOS voltage select 5v	JP2	Pins 1 & 2 closed
»	CMOS memory normal operation	JP6	Pins 1 & 2 closed
	CMOS memory clear	JP6	Pins 2 & 3 closed
»	Boost mode disabled	S5	Open
	Boost mode disabled	S5	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 16M x 36	None
128MB	(2) 8M x 36	(2) 8M x 36
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory. Banks are interchangeable.

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
256KB	(2) 32K x 32	None	(1) 8K/16K/32K x 8
512KB	(2) 32K x 32	(2) 32K x 32	(1) 16K/32K x 8
Note: The location of banks 0 & 1 are unidentified.

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP7	JP8	S3	S4	S5
120MHz	50MHz	2x	1 & 2	2 & 3	Closed	Closed	Open
133MHz	55MHz	2x	1 & 2	2 & 3	Open	Open	Open
150MHz	60MHz	2x	1 & 2	2 & 3	Closed	Open	Open
166MHz	66MHz	3x	1 & 2	2 & 3	Open	Closed	Open
200MHz	66MHz	3x	1 & 2	2 & 3	Open	Open	Closed
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP7	JP8	S3	S4	S5
75MHz	50MHz	1.5x	1 & 2	1 & 2	Closed	Closed	Open
90MHz	60MHz	1.5x	1 & 2	1 & 2	Closed	Open	Open
100MHz	66MHz	1.5x	1 & 2	1 & 2	Open	Closed	Open
120MHz	60MHz	1.5x	1 & 2	1 & 2	Closed	Open	Open
133MHz	66MHz	2x	1 & 2	1 & 2	Open	Closed	Open
150MHz	66MHz	1.5x	1 & 2	2 & 3	Closed	Open	Open
166MHz	66MHz	2x	1 & 2	2 & 3	Open	Closed	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP7	JP8	S3	S4	S5
75MHz	50MHz	1.5x	1 & 2	1 & 2	Closed	Closed	Open
90MHz	60MHz	1.5x	1 & 2	1 & 2	Closed	Open	Open
100MHz	66MHz	1.5x	1 & 2	1 & 2	Open	Closed	Open
120MHz	60MHz	2x	1 & 2	2 & 3	Closed	Open	Open
133MHz	66MHz	2x	1 & 2	2 & 3	Open	Closed	Open
150MHz	60MHz	2.5x	2 & 3	2 & 3	Closed	Open	Open
166MHz	66MHz	2.5x	2 & 3	2 & 3	Open	Closed	Open
180MHz	60MHz	3x	2 & 3	1 & 2	Closed	Open	Open
200MHz	66MHz	3x	2 & 3	1 & 2	Open	Closed	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP7	JP8	S3	S4	S5
166MHz	66MHz	2.5x	2 & 3	2 & 3	Open	Closed	Open
200MHz	66MHz	3x	2 & 3	1 & 2	Open	Closed	Open
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)
Voltage	JP1	S0	S1	S2
3.4v	Closed	Closed	Closed	Closed
3.5v	Open	Closed	Closed	Closed

CPU VOLTAGE SELECTION (DUAL)
V I/O	V core	JP1	S0	S1	S2
3.4v	2.9v	Closed	Open	Open	Open
