Card Type	Network Interface card
NIC Type	Token Ring
Boot ROM	Available
Network Transfer Rate	4/16Mbps
Topology	Ring
Wire Type	Unshielded twisted pair Shielded twisted pair
Data Bus	16-bit ISA

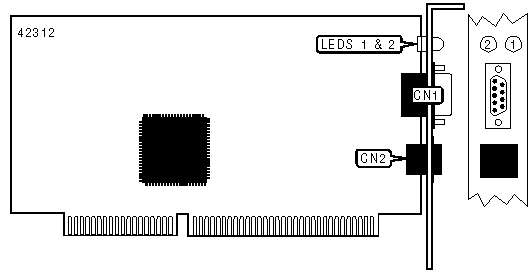

CONNECTIONS
Function	Label	Function	Label
9-pin serial port	CN1	RJ-45 UTP connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Card operating at 4Mbps network speed
LED1	Green	Off	Card not operating at 4Mbps network speed
LED2	Yellow	On	Card operating at 16Mbps network speed
LED2	Yellow	Off	Card not operating at 16Mbps network speed
