NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

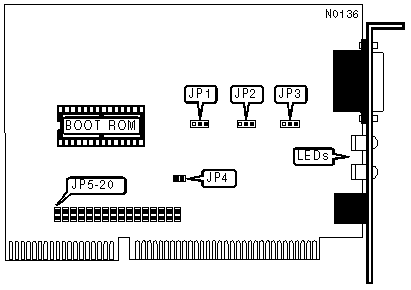

BOOT ROM SIZE
Size	JP1
8KB	Pins 2 & 3 closed
16KB	Pins 1 & 2 closed

LINK INTEGRITY TEST
Setting		JP2
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed
Note:Link Integrity is only used with 10Base-T wiring. When using an AUI transciever, the test should be disabled.

CABLE TYPE
Type		JP3
»	Unshielded twisted pair	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed

DATA BUS SPEED
Speed		JP4
»	6 - 8MHz	Open
	8 - 16MHz	Closed

INTERRUPT REQUEST
IRQ		JP5	JP6	JP7	JP8	JP9	JP10	JP11
»	3	Open	Closed	Open	Open	Open	Open	Open
	2	Closed	Open	Open	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open
	12	Open	Open	Open	Open	Open	Open	Closed

I/O BASE ADDRESS
Address		JP12	JP13	JP14	JP15
»	300h	Open	Open	Open	Closed
	320h	Open	Open	Closed	Open
	340h	Open	Closed	Open	Open
	360h	Closed	Open	Open	Open

BOOT ROM
Setting		JP16
»	Disabled	Open
	Enabled	Closed

BOOT ROM ADDRESS
Address	JP17	JP18	JP19	JP20
C8000h	Closed	Closed	Open	Closed
CC000h	Closed	Closed	Open	Open
D0000h	Closed	Open	Closed	Closed
D4000h	Closed	Open	Closed	Open
D8000h	Closed	Open	Open	Closed
DC000h	Closed	Open	Open	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being received
LED1	Green	Off	Data is not being received
LED2	Red	On	Data is being transmitted
LED2	Red	Off	Data is not being transmitted
LED3	Yellow	On	Twisted pair network connection is good
LED3	Yellow	Off	Twisted pair network connection is broken
LED4	Orange	On	Collision detected on network
LED4	Orange	Off	Normal operation
