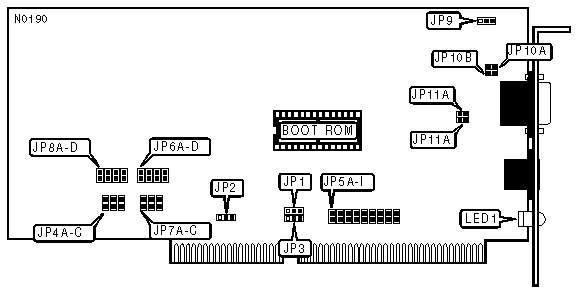

ACCTON TECHNOLOGY CORPORATION
RINGPAIR-4/16 (TR1605)
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Available |
|
BOOT ROM SIZE | |||
|
Size |
JP1 |
JP3 | |
| » |
32KB |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
64KB |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed | |
|
BOOT ROM | ||
|
Setting |
JP2 | |
| » |
Disabled |
Pins 1 & 2 Closed |
|
Enabled |
Pins 2 & 3 Closed | |
|
DMA CHANNEL | |||||||
|
Channel |
JP4A |
JP4B |
JP4C |
JP7A |
JP7B |
JP7C | |
| » |
DMA5 |
Open |
Open |
Closed |
Open |
Open |
Closed |
|
DMA6 |
Open |
Closed |
Open |
Open |
Closed |
Open | |
|
DMA7 |
Closed |
Open |
Open |
Closed |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
INTERRUPT REQUEST | ||||||||||
|
IRQ |
JP5A |
JP5B |
JP5C |
JP5D |
JP5E |
JP5F |
JP5G |
JP5H |
JP5I | |
| » |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
COMPATIBILITY MODE | |||||
|
Option |
JP6A |
JP6B |
JP6C |
JP6D | |
| » |
Select 0 |
Closed |
Open |
Open |
Open |
|
Select 1 |
Open |
Closed |
Open |
Open | |
|
Select 2 |
Open |
Open |
Closed |
Open | |
|
Select 3 |
Open |
Open |
Open |
Closed | |
|
Note:If the card fails to run after eliminating all other possible problems, use one of the optional settings. | |||||
|
I/O BASE ADDRESS AND BOOT ROM ADDRESS | |||||||
|
I/O Address |
32KB ROM Address |
64KB ROM Address |
JP8A |
JP8B |
JP8C |
JP8D | |
| » |
0A20-0A31h |
C0000h-CFFFFh |
C0000h-C7FFFh |
Closed |
Open |
Open |
Open |
|
1A20-1A31h |
D0000h-DFFFFh |
C8000h-CFFFFh |
Open |
Closed |
Open |
Open | |
|
2A20-2A31h |
N/A |
D0000h-D7FFFh |
Open |
Open |
Closed |
Open | |
|
3A20-3A31h |
N/A |
D8000h-DFFFFh |
Open |
Open |
Open |
Closed | |
|
NETWORK SPEED | ||
|
Speed |
JP9 | |
| » |
16Mbps |
Pins 2 & 3 Closed |
|
4Mbps |
Pins 1 & 2 Closed | |
|
CABLE TYPE | |||
|
Type |
JP10A & JP10B |
JP11A & JP11B | |
| » |
Shielded twisted pair |
Open |
Open |
|
Unshielded twisted pair |
Closed |
Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Link is correctly configured and running at 16Mbps |
|
LED1 |
Red |
On |
Link is correctly configured and running at 4Mbps |
