AMERICAN RESEARCH CORPORATION

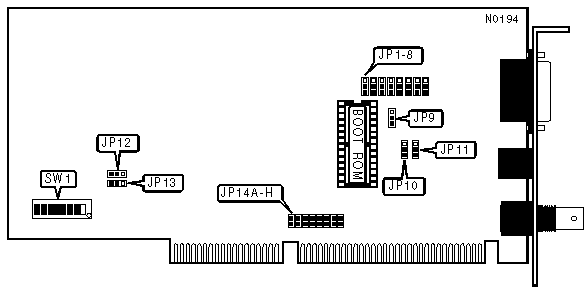

ETHERFLEX PLUS/16B, PCN015
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
Unshielded twisted pair RG58A/U 50ohm coaxial DIX transceiver via DB-15 port |
|
Boot ROM |
Available |
|
I/O BASE ADDRESS | |||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 | |
|
200h |
On |
On |
On |
On | |
|
220h |
On |
On |
On |
Off | |
|
240h |
On |
On |
Off |
On | |
|
260h |
On |
On |
Off |
Off | |
| » |
280h |
On |
Off |
On |
On |
|
2A0h |
On |
Off |
On |
Off | |
|
2C0h |
On |
Off |
Off |
On | |
|
2E0h |
On |
Off |
Off |
Off | |
|
300h |
Off |
On |
On |
On | |
|
320h |
Off |
On |
On |
Off | |
|
340h |
Off |
On |
Off |
On | |
|
360h |
Off |
On |
Off |
Off | |
|
380h |
Off |
Off |
On |
On | |
|
3A0h |
Off |
Off |
On |
Off | |
|
3C0h |
Off |
Off |
Off |
On | |
|
3E0h |
Off |
Off |
Off |
Off | |
|
BOOT ROM ADDRESS | ||||
|
Address |
SW1/5 |
SW1/6 |
SW1/7 | |
|
C0000h |
On |
On |
On | |
|
C4000h |
On |
On |
Off | |
|
C8000h |
On |
Off |
On | |
|
CC000h |
On |
Off |
Off | |
|
D0000h |
Off |
On |
On | |
|
D4000h |
Off |
On |
Off | |
|
D8000h |
Off |
Off |
On | |
| » |
DC000h |
Off |
Off |
Off |
|
BOOT ROM | ||
|
Setting |
SW1/8 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
BOOT ROM SIZE | |||
|
Size |
JP1 |
JP12 | |
| » |
16KB |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
32KB |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed | |
|
CABLE TYPE | |||
|
Type |
JP3 - JP8 |
JP10 |
JP11 |
|
Unshielded twisted pair |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
DIX transceiver via DB-15 port |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
RG-58A/U 50ohm coaxial |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
INTERRUPT REQUEST | |||||||||
|
IRQ |
JP14A |
JP14B |
JP14C |
JP14D |
JP14E |
JP14F |
JP14G |
JP14H | |
|
2/9 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
JP2 |
Pins 2 & 3 Closed |
|
JP9 |
Open |
|
JP13 |
Pins 1 & 2 Closed |
