BLACK BOX CORPORATION
6510, LE037-C
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|

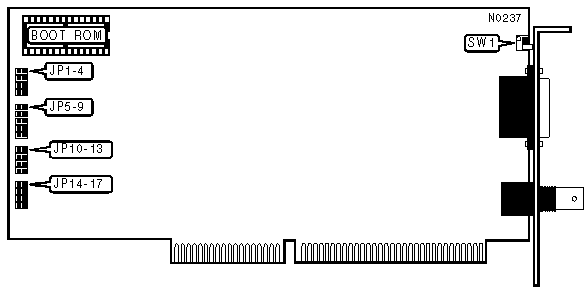

I/O BASE ADDRESS | |||||
|
Address |
JP1 |
JP2 |
JP3 |
JP4 | |
|
300h |
Closed |
Open |
Open |
Open | |
|
320h |
Open |
Closed |
Open |
Open | |
|
340h |
Open |
Open |
Closed |
Open | |
| » |
360h |
Open |
Open |
Open |
Closed |
|
BOOT ROM ADDRESS | ||||||
|
Address |
JP5 |
JP6 |
JP7 |
JP8 |
JP9 | |
| » |
Disabled |
Open |
Open |
Open |
Open |
Closed |
|
D0000h |
Closed |
Open |
Open |
Open |
Open | |
|
D4000h |
Open |
Closed |
Open |
Open |
Open | |
|
D8000h |
Open |
Open |
Closed |
Open |
Open | |
|
DC000h |
Open |
Open |
Open |
Closed |
Open | |
|
DMA CHANNEL | |||||
|
Channel |
JP10 |
JP11 |
JP12 |
JP13 | |
|
DMA0 |
Closed |
Open |
Open |
Open | |
| » |
DMA3 |
Open |
Closed |
Open |
Open |
|
DMA5 |
Open |
Open |
Closed |
Open | |
|
DMA6 |
Open |
Open |
Open |
Closed | |
|
INTERRUPT REQUEST | |||||
|
IRQ |
JP14 |
JP15 |
JP16 |
JP17 | |
| » |
2/9 |
Closed |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed | |
|
12 |
Open |
Closed |
Open |
Open | |
|
15 |
Open |
Open |
Closed |
Open | |
|
CABLE TYPE | ||
|
Type |
SW1 | |
| » |
RG-58A/U 50ohm coaxial |
Off |
|
AUI transceiver via DB-15 port |
On | |
