AST RESEARCH, INC.
AST ETHERNODE (202246-001)
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Not available |
|

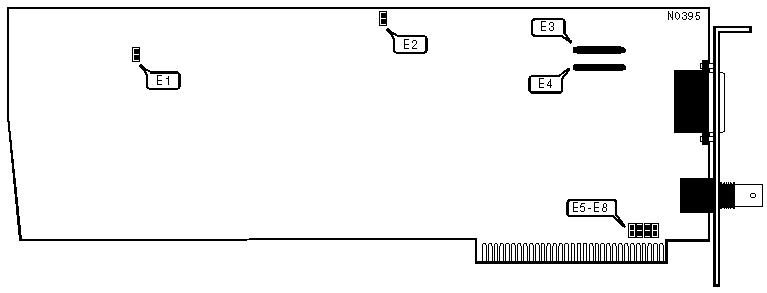

SLEEP MODE |
||
|
Setting |
E2 |
|
|
» |
Disabled |
Closed |
|
|
Enabled |
Open |
|
Note: When sleep mode is enabled the card is disabled. The card cannot be accessed by the computer or the network. This option is provided to simplify trouble shooting system conflicts. |
||
|
CABLE TYPE |
|||
|
Type |
E3 |
E4 |
|
|
» |
RG-58A/U 50ohm coaxial |
Open |
Closed |
|
|
AUI transceiver via DB-15 port |
Closed |
Open |
Note:E3 and E4 are not jumpers, they are receptacles for a terminating resistor. In this case open means that the resistor is not installed while closed would mean that the resistor is installed. |
|||
|
CARD ID |
|||||
|
Setting |
E5 |
E6 |
E7 |
E8 |
|
|
» |
A |
Closed |
Open |
Open |
Open |
|
|
B |
Open |
Closed |
Open |
Open |
|
|
C |
Open |
Open |
Closed |
Open |
|
|
D |
Open |
Open |
Open |
Closed |
|
Note: Up to four cards can be installed at once into the same system. If more than one card is installed in the |
|||||
|
FACTORY CONFIGURED SETTINGS |
|
|
Jumper |
Setting |
|
E1 |
Closed |
|
MISCELLANEOUS NOTES |
|
To completely configure this card, the software that comes with it must be used.. |
